Wood Wool Acoustic Panels
Cement-bonded wood wool acoustic panels for durable wall and ceiling sound absorption in schools, offices, mosques, restaurants, hotels, theatres, and public interiors across Saudi Arabia.
— TESTED ACOUSTIC PERFORMANCE —
Skynest® Absorption Coefficients at All Frequencies
Skynest® Wood Wool Direct Mounting Ceiling (USG Middle East) — sound absorption measurements certified per ASTM C 423-01 and EN 13964. Maximum NRC reaches 1.00 (perfect absorption) with stonewool acoustical infill.
| Configuration | 125 Hz | 250 Hz | 500 Hz | 1k Hz | 2k Hz | 4k Hz | NRC* |
|---|---|---|---|---|---|---|---|
| 15mm Direct | 0.55 | 0.60 | 0.45 | 0.60 | 0.70 | 0.75 | 0.60 |
| 15mm + Stonewool Infill | 0.80 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 |
| 25mm Direct | 0.60 | 0.60 | 0.55 | 0.65 | 0.85 | 0.95 | 0.65 |
| 25mm + Stonewool Infill | 0.85 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 |
TECHNICAL SPECIFICATIONS
Complete HERADESIGN® Fine Specs
| Product | Knauf HERADESIGN® Fine — magnesite-bonded wood wool (2mm fibre) |
| Available Thicknesses | 15 · 25 · 35 mm |
| Dimensions | 600×600 · 625×625 · 1200×600 · 1250×625 mm (additional on request) |
| Weight | 8.2 kg/m² (15mm) · 13.3 kg/m² (25mm) · 17.5 kg/m² (35mm) |
| Fire Classification | Euroclass B-s1,d0 (reaction to fire) · EI 30 (fire resistance) |
| Thermal Conductivity | λ = 0.09 W/mK (EN 12667) |
| Humidity Resistance | Suitable for rooms with constant humidity up to 90% |
| Ball Impact Safety | DIN 18032 part 3 · Class 1A per EN 13964 — for thicknesses ≥ 25 mm |
| Designation Code | WW-EN 13168-L4-W2-T2-S2-P2-Cl3 |
| Sustainability | Cradle to Cradle Certified® Gold (white & natural) · PEFC · FSC · EPD |
— ABOUT HERADESIGN® Fine —
Premium Acoustic Ceiling & Wall Panel
Knauf HERADESIGN® Fine is an acoustic ceiling and wall panel made from single layer magnesite-bonded wood wool with 2mm fibre width. It combines a natural appearance with sound absorption reaching Class A when installed with appropriate acoustic lining.
— APPLICATION AREAS —
Where to use HERADESIGN® Fine?
A decorative and acoustically effective panel for suspended ceilings and interior walls, plus roofed outdoor areas not directly exposed to rain or pollutants.
— INSTALLATION SYSTEMS —
4 Major Installation Systems
HERADESIGN® Fine is available in four installation systems — from direct mount to concealed and visible grids, with diverse edge details for any project.
| System Code | Installation Type | Available Edge Details |
|---|---|---|
| A2.1, A2.2 | Direct mount | VK-09, VK-10, VK-10/5 |
| B2.1, B2.2 | Concealed grid | GK, AK-00, AK-01, AK-02/5, AK-02/10, AK-02/20, AK-03 (35mm فقط) |
| C2.1 | Visible grid | SK-04, SK-05, SK-06 |
| S2.1 | Wall mount | SY-02 |
* Not all edge/thickness combinations are available. Verify the right system for your project with our technical team.
— AVAILABLE COLORS —
11 Standard Colors + Vario Design
Nature-inspired standard colors — with custom orders available from RAL and NCS color systems. Slight color and appearance variations may occur due to the natural wood fibre texture.
— INSTALLATION GUIDELINES —
Professional Installation per Knauf Standards
— SUSTAINABILITY & CERTIFICATIONS —
Eco-Friendly Product at Top Standards
Cradle to Cradle Gold® is considered the highest global rating for sustainability in architectural products, ensuring:
- Material health and environmental safety
- Full recyclability (circular economy)
- Renewable energy use in production
- Responsible water management
- Social fairness in supply chain
— INDUSTRY APPLICATIONS —
Wood Wool Solutions by Sector
Wood Wool is best-suited for schools and sports halls due to ball impact resistance, for factories due to durability, and for hospitals due to environmental safety.
— COMPARING OPTIONS? —
Compare Wood Wool with Other Materials
Is Wood Wool right for your project? Compare with 5 other acoustic materials (Fabric, PET, Wood Slat, Foam, Perforated Metal) — NRC table + best-for-each-sector.
— FREQUENTLY ASKED QUESTIONS —
Answers from Our Technical Team
We collected the most common questions from engineers and contractors of Wood Wool projects in Saudi Arabia. Did not find your answer? Contact us on WhatsApp.
What is the difference between Wood Wool 15mm, 25mm, and 35mm?+
Does Wood Wool resist Saudi Arabia humidity?+
What NRC is right for schools and sports halls?+
Can Wood Wool be installed on an existing ceiling?+
How are Wood Wool panels maintained?+
Wood Wool or Fabric panels — which is better?+
Do you have safety certifications recognized in Saudi Arabia?+
What is the warranty period and after-sales service?+
— START YOUR PROJECT —
Ready for Wood Wool in Your Project?
Get a free site visit + RT60 measurement + calculated recommendation + full test certificates from Yamamah Smart.
— WHAT IS WOOD WOOL —

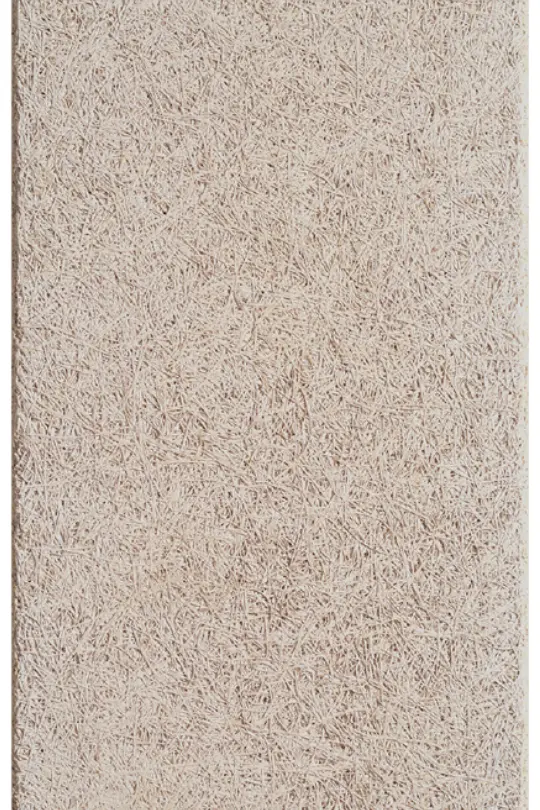

Long wood fibres, bonded by cement
Wood wool acoustic panels are made by binding long, fine wood fibres (slivers of spruce or fir) with an inorganic cement or magnesite binder. The open, textured surface absorbs sound while the cement gives the panel structural integrity and natural fire resistance.
— ACOUSTIC PERFORMANCE DEPENDS ON INSTALLATION —
Three mounting methods · three performance tiers
The same wood wool panel can deliver very different acoustic results depending on how it's mounted. Choose the method that matches your room's volume, frequency target, and budget.
Panel fixed directly to wall or ceiling — no cavity, no backing.
Best for: corridors, decorative walls, general echo control.
Panel installed on battens or suspended with a cavity behind. Cavity depth tunes low/mid-frequency absorption.
Best for: offices, classrooms, restaurants.
Panel installed with 30–75 mm acoustic stone wool behind. Highest absorption tier — subject to tested system.
Best for: mosques, theatres, halls, high-performance spaces.
⚠ Final acoustic performance depends on panel thickness, fibre width, air-gap depth, backing material, installed area, and room volume. Always confirm against the selected supplier's tested-system report and project-specific acoustic submittal.

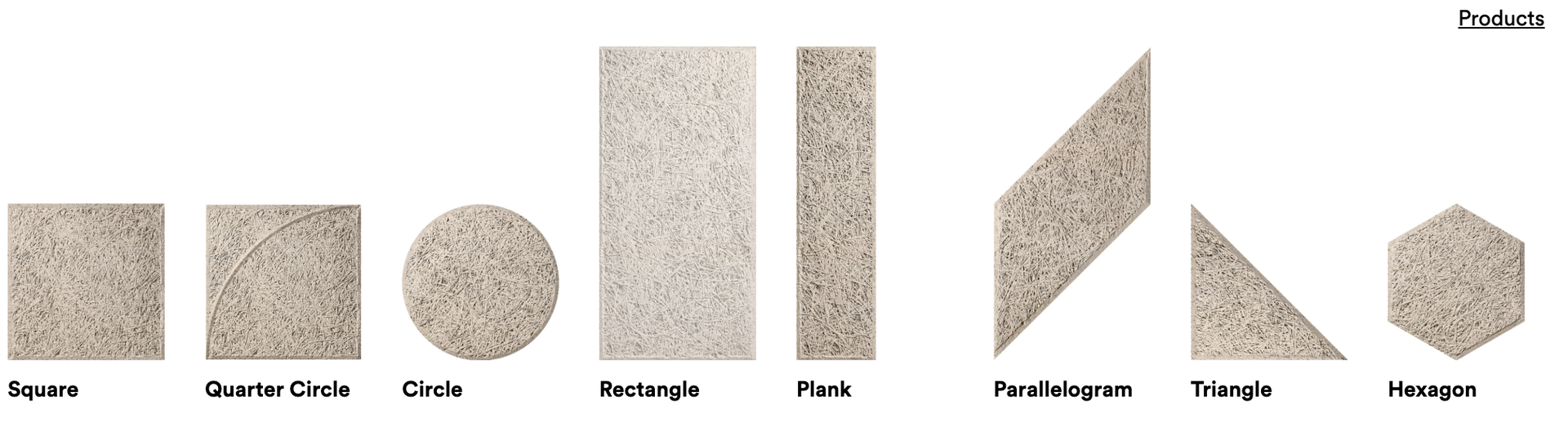

— CHOOSE YOUR SHAPE —

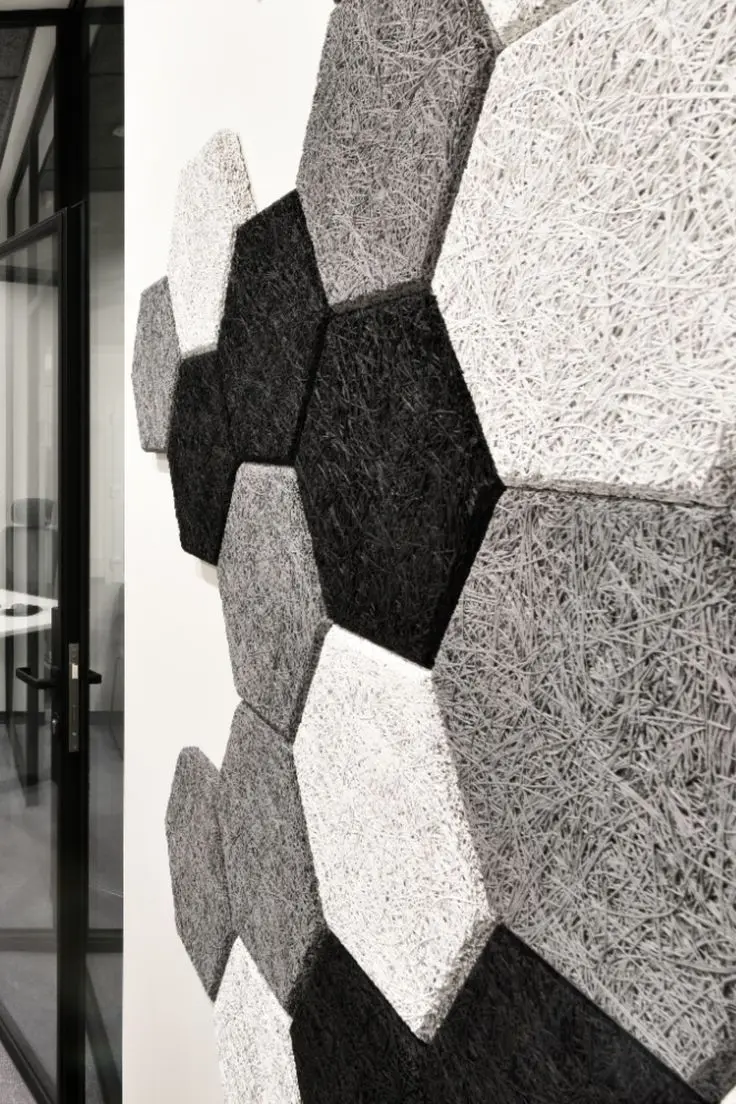

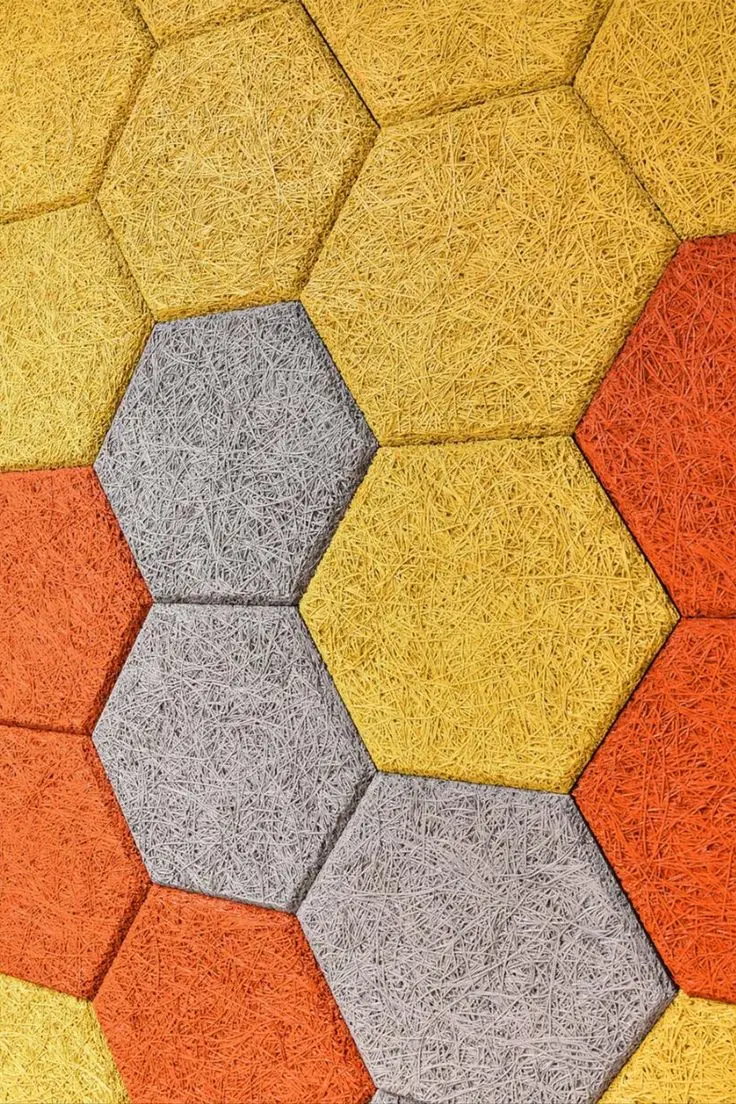

Eight standard shapes · wall and ceiling
— COLOUR & FINISH OPTIONS —
12 standard colours · RAL / NCS on request
All twelve standard colours are pigmented through the fibre — not surface-painted. Custom RAL or NCS colours are available for project orders, subject to minimum order quantity and approval sample.
#D8C5A0
#F4F4F1
#1F2026
#9CA3AF
#7FB6D9
#1E3A5F
#4F7C44
#5B3A78
#E8A8B8
#B53C7C
#E8C547
#B33A3A
— WHERE TO USE WOOD WOOL —
Six sectors · matched recommendations
— WOOD WOOL VS OTHER ACOUSTIC PANELS —
How wood wool compares
| Property | Wood Wool | Fabric Panels | PET Panels | Foam Panels | Perforated Wood |
|---|---|---|---|---|---|
| Look | Natural fibre · raw | Premium woven | Solid colour felt | Soft foam | Wood-grain finish |
| Durability | Very high (cement) | Medium (fabric) | Medium-high | Low–medium | High (timber) |
| Acoustic — direct | NRC 0.40–0.65 | NRC 0.75–0.90 | NRC 0.45 | NRC 0.30–0.50 | NRC 0.55–0.85 |
| Acoustic — w/ backing | Up to NRC 1.00 | Up to NRC 0.95 | Up to NRC 0.90 | Up to NRC 0.70 | Up to NRC 0.95 |
| Fire reaction | A2-s1,d0 or B-s1,d0* | Class B fabric | Class B PET | Class B foam | Class B treated |
| Best application | Walls + ceilings · public | Walls · premium | Walls · eco | Walls · budget | Walls · luxury |
| Installation | Direct / battens / grid | Direct or stretched | Direct or hung | Adhesive | T-grid / direct |
| Premium level | Mid-premium | Premium | Mid | Entry | Premium |
* Fire classification depends on product type, thickness, binder, and supplier test report.
TECHNICAL SPECIFICATIONS
Engineered to international standards
| Material | Cement-bonded wood wool · long wood fibres + mineral binder |
| Thicknesses | 15 · 25 · 35 mm |
| Standard sizes | 600 × 600 mm · 600 × 1200 mm · 600 × 2000 mm |
| Fibre width | Superfine · Fine · Regular (subject to product family) |
| Acoustic — NRC (direct fix) | ≈ 0.40 – 0.65 (depending on thickness and fibre) |
| Acoustic — NRC (with backing system) | Up to 0.95 – 1.00 (tested system dependent) |
| Fire reaction | A2-s1,d0 or B-s1,d0 — subject to product, binder, and supplier test report |
| Fire resistance | System-level only — confirmed by project-specific wall/ceiling test report |
| Colours | 12 standard + custom RAL / NCS (project orders, MOQ applies) |
| Installation | Direct fix · suspended ceiling · concealed grid · battens · backing cavity |
| Applications | Walls and ceilings · interiors only |
| Certificates | FSC / PEFC / CE / ISO / M1 — only when documented by selected supplier |
⚠ All technical values must be confirmed by the selected supplier's test report and project-specific submittal.
— INSTALLATION METHODS —
Four supported installation systems
Adhesive or mechanical fixing on a flat substrate (plaster, concrete, drywall). Fastest method · no cavity · baseline acoustic performance.
Panels fixed to timber or metal battens with a 25–75 mm cavity. Improves low/mid-frequency absorption and allows a service cavity for cables and conduit.

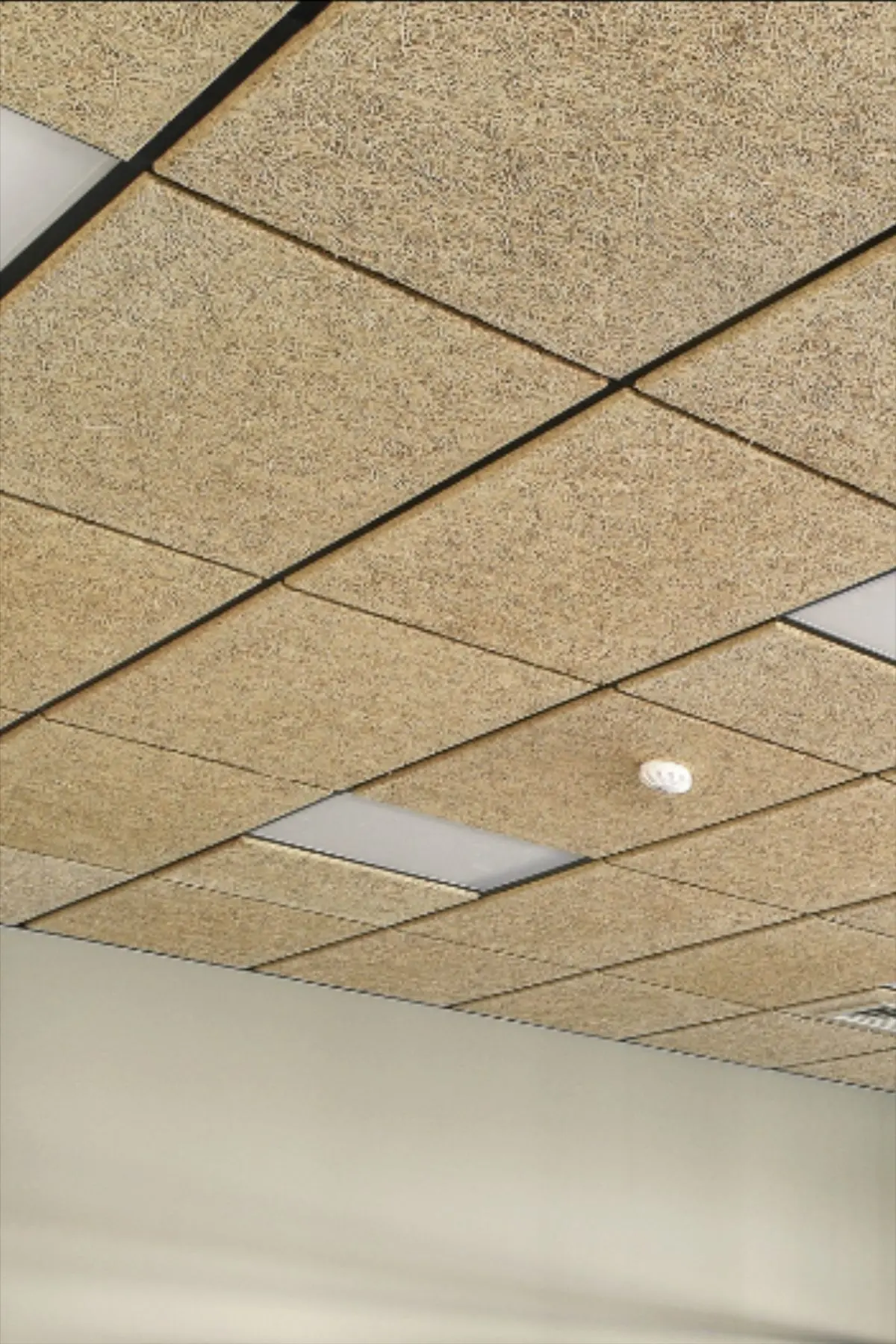

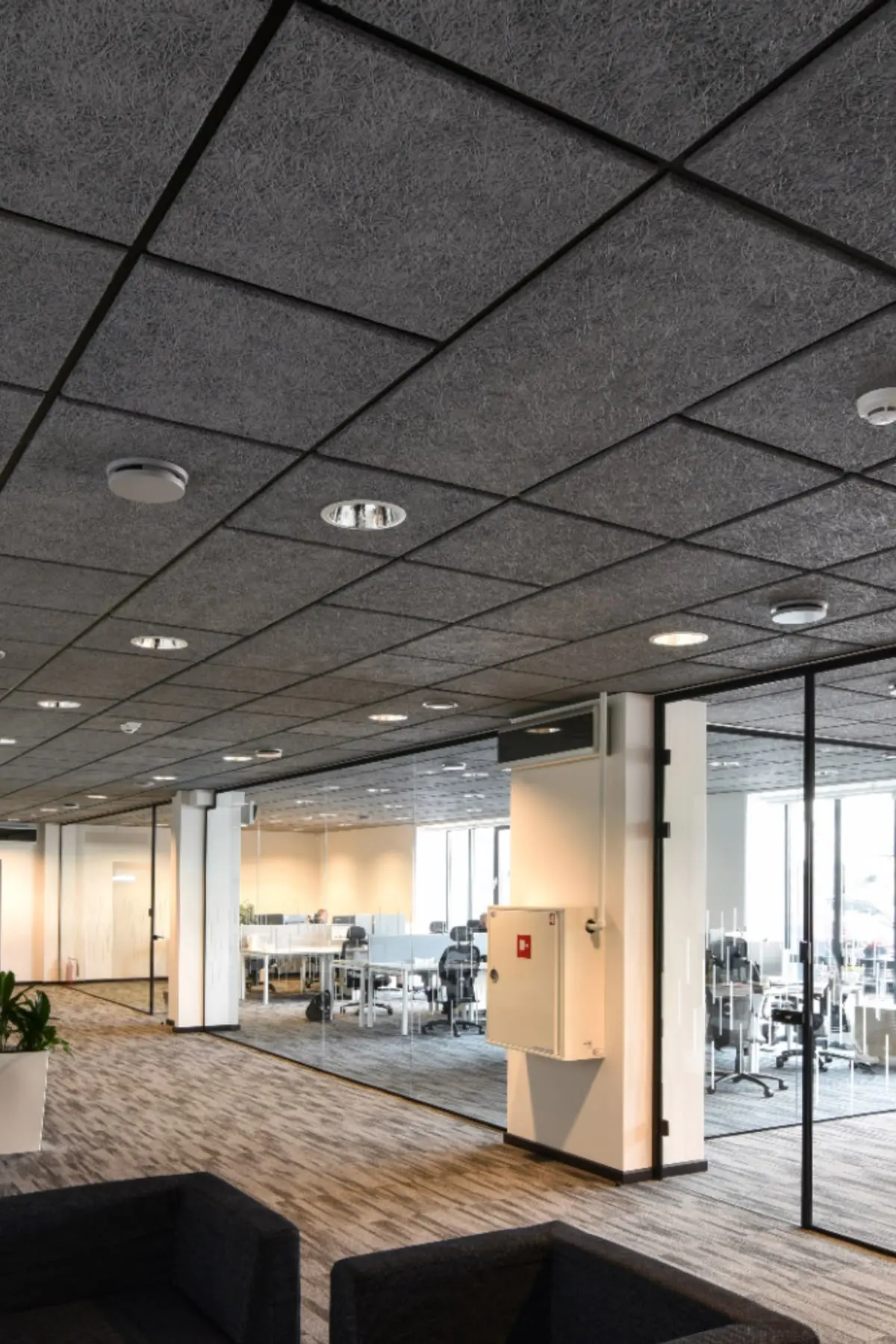

Drop-in tiles on a standard 600 × 600 mm or 600 × 1200 mm T-grid. Easy access to plenum services · ideal for offices, schools, public interiors.
Premium architectural finish — grid hidden inside panel rebates for a flush, continuous appearance. Available on select product families.
