Acoustic Fabric Panels in Saudi Arabia
Sound Absorption / Acoustic Treatment
Used for
Echo reduction · reverberation control · room acoustics
Installation area
Wall / ceiling
Main metric
NRC / αw
Important: This product reduces echo INSIDE the room. It does not block sound between rooms unless combined with a full soundproofing system.
Premium fabric-wrapped acoustic panels for reducing echo, improving speech clarity, and creating comfortable interior spaces.
Yamamah Smart Acoustic Solutions supplies and installs custom fabric wrapped acoustic panels for offices, meeting rooms, mosques, studios, classrooms, restaurants, cinemas, hotels, clinics, and commercial interiors across Saudi Arabia.
NRC up to1.00 *Thickness25 / 50 / 75 / 100 mmCustom sizesAvailableFabric colors60+Mounting:Wall & ceilingSupply & installSaudi Arabia
* NRC up to 1.00 depending on thickness, mounting method, and certified build-up.
150+
Projects Completed
60+
Camira Fabric Colors
10 yrs
Manufacturer Warranty
NRC 1.00
Up To Sound Absorption
1,200 m²
Fabrication Facility
PRODUCT AT A GLANCE
Everything You Need to Know in One View
| Product Type | Fabric Wrapped Acoustic Panel |
| Core | High-density acoustic core — mineral wool or approved acoustic core per specification |
| Finish | Camira acoustic fabric or approved equivalent |
| Thickness | 25, 50, 75, 100 mm |
| Standard size | 600 × 1200 mm |
| Custom Size | Available upon request — rectangles, squares, hexagons, circles, bespoke shapes |
| Installation | Wall mounted, ceiling mounted, or concealed fixing |
| Application | Interior acoustic treatment — echo reduction and reverberation control |
| Performance | NRC up to 1.00 depending on thickness, mounting method, and certified build-up |
Note: Actual acoustic performance depends on thickness, mounting method, air gap, room design, and certified build-up. Yamamah validates final NRC per project from manufacturer test reports.
CRITICAL DISTINCTION
Acoustic Absorption, Not Full Soundproofing
Fabric acoustic panels are designed to absorb sound reflections inside a room. They reduce echo, reverberation, and improve speech clarity — making rooms more comfortable for meetings, conversations, learning, worship, recording, and presentations. However, fabric panels alone do not fully block sound transmission between rooms. If your goal is to stop sound from passing through walls, doors, ceilings, or floors, Yamamah can design a complete soundproofing system using MLV barriers, insulation, acoustic wall build-ups, sealing, and door treatment.
USE FABRIC PANELS
When you need:
- Less echo inside the room
- Better speech clarity for meetings and presentations
- More comfortable rooms for daily use
- Improved video-call audio quality
- Reduced reverberation in hard-surface rooms
USE A FULL SOUNDPROOFING SYSTEM
When you need:
- Less sound transfer between rooms
- More acoustic privacy for confidential meetings
- Lower noise from outside the building
- Wall, ceiling, or door acoustic isolation
- MLV + insulation + acoustic sealing system
THICKNESS SELECTION
Which Thickness Should You Choose?
Match the panel thickness to your space type and the acoustic problem you need to solve. When in doubt, 50 mm fabric panels are the best balance for most commercial and office projects.
| Space / Problem | Recommended Thickness | Why |
|---|---|---|
| Decorative wall acoustic treatment | 25 mm | Light absorption — mid and high frequencies. |
| Meeting rooms, offices, classrooms | 50 mm | Best balance between performance, appearance, cost, and installation flexibility. |
| Restaurants, mosques, training rooms | 50 mm or 75 mm | Stronger reverberation control in busy or large spaces. |
| Studios, podcast rooms, cinemas | 75 mm | Improved low-mid frequency absorption for recording and screening rooms. |
| High reverberation or premium acoustic control | 100 mm | Maximum absorption — for demanding environments and bass control. |
Not sure which thickness you need? Send us your room dimensions and photos.
Send Room Dimensions →AVAILABLE SHAPES

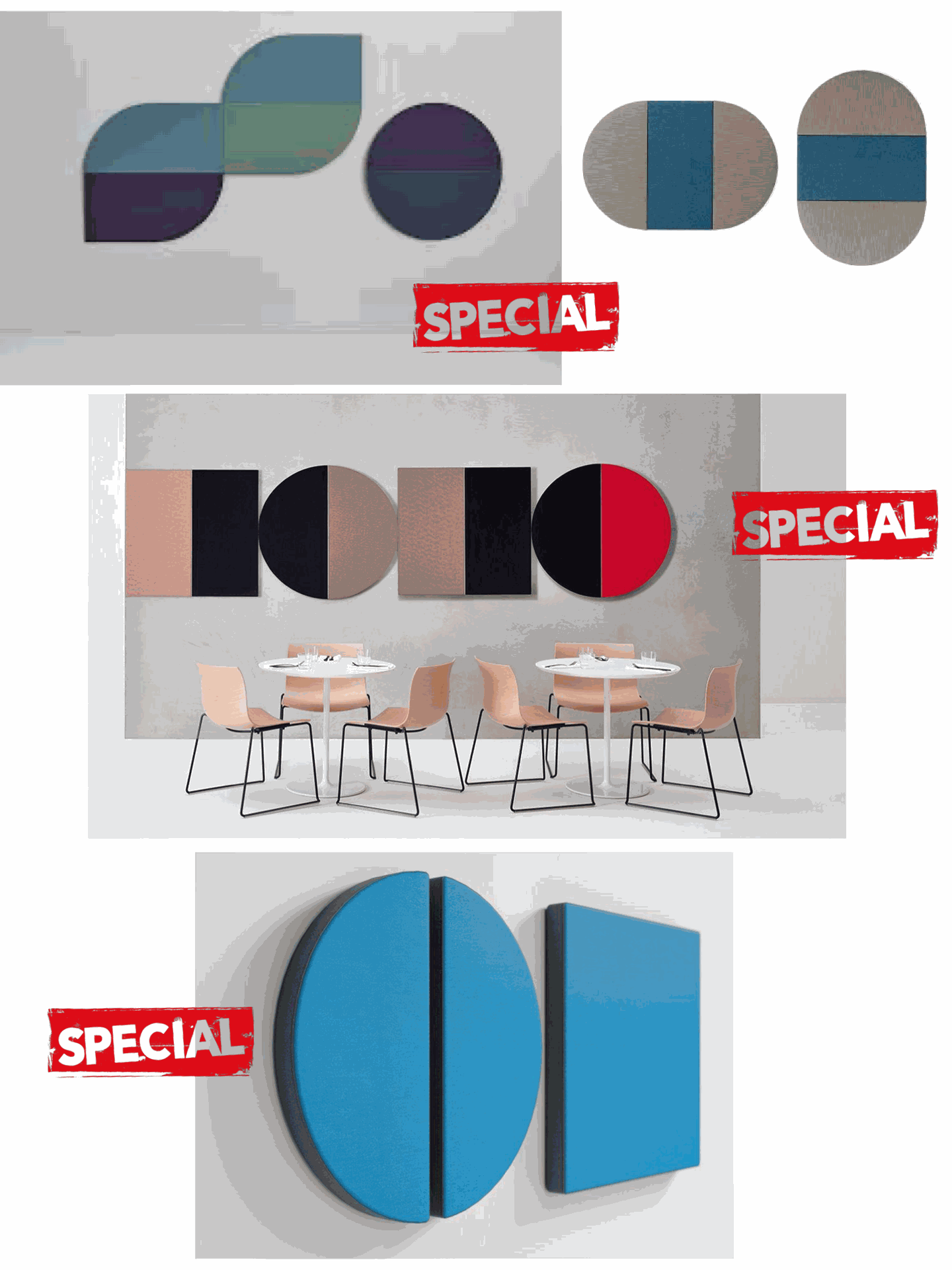

Standard & Custom Panel Shapes
Five standard shapes in 25 or 50 mm thickness — hover any shape to see a wall-installation example. Or send your custom CAD drawing and we cut it from the same Camira fabric and acoustic core.
Triangle
Equilateral fabric panel for geometric wall patterns and modern accents — available in 25 / 50 mm thickness or on request.
Square
Standard square fabric panel for modular wall arrays and ceiling clouds — available in 25 / 50 mm thickness or on request.

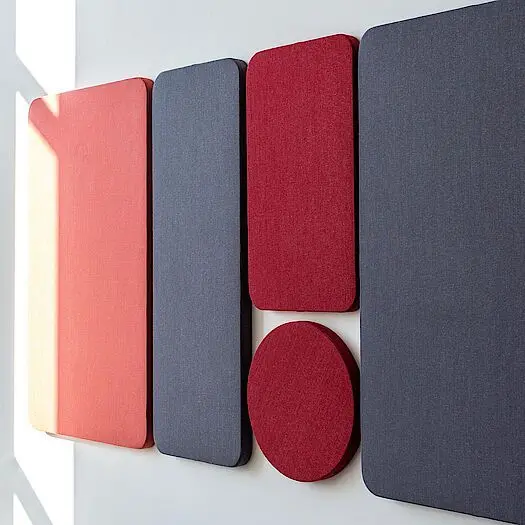

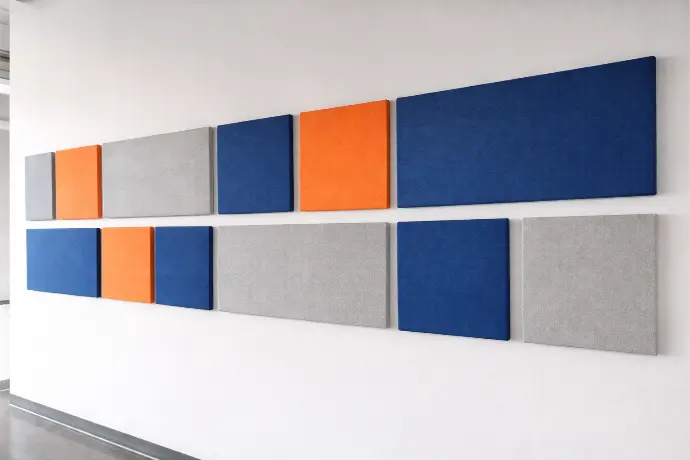

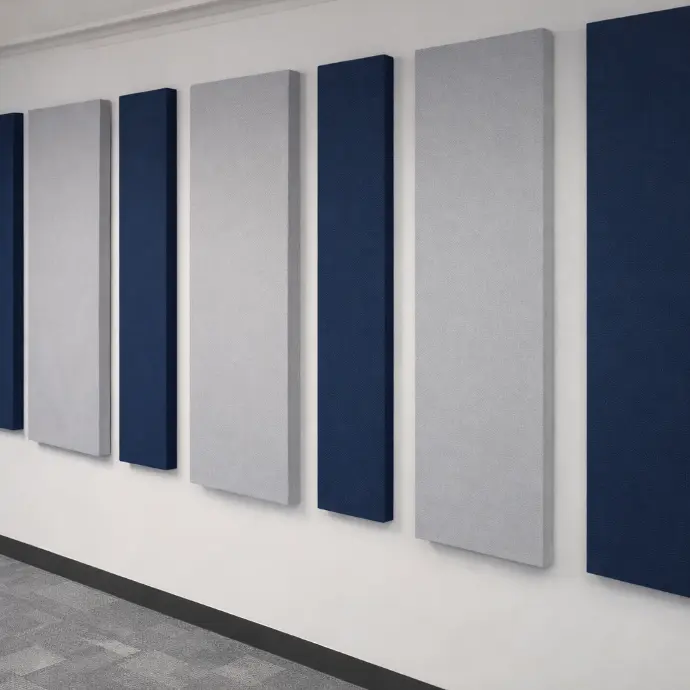

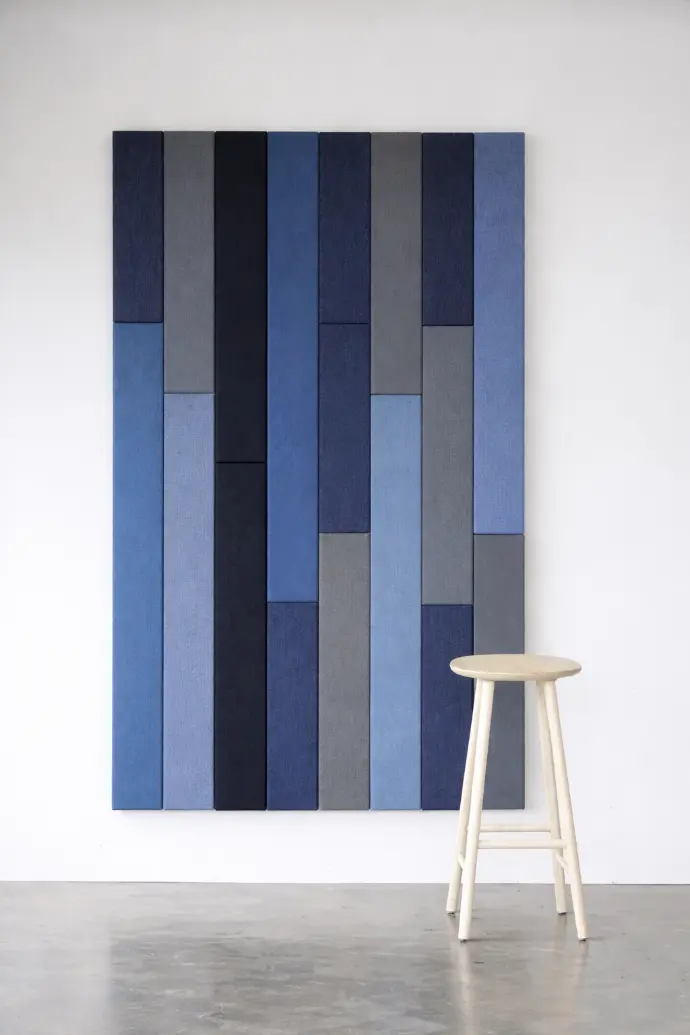

Rectangle
Vertical rectangular fabric panel for long walls and accent banners — available in 25 / 50 mm thickness or on request.

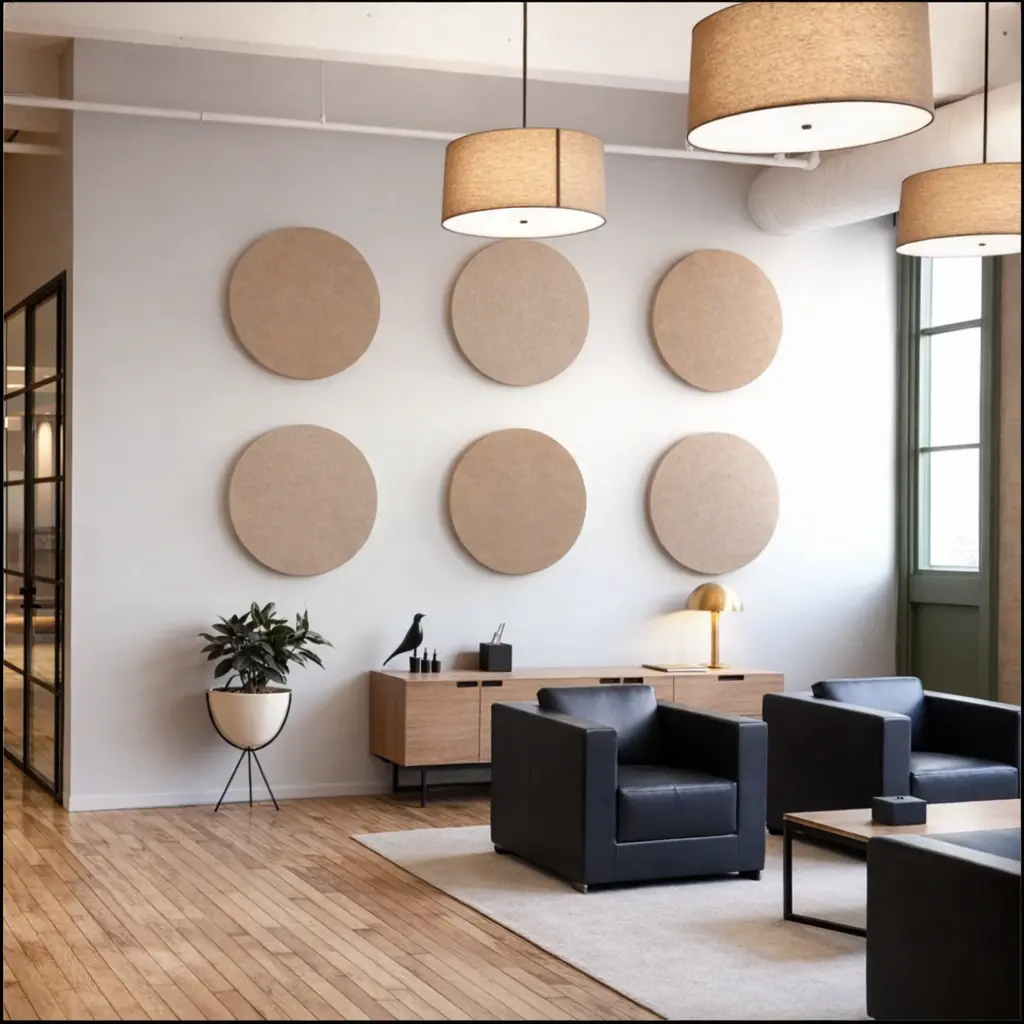

Circle
Round fabric panel for focal points, restaurants, and reception areas — available in 25 / 50 mm thickness or on request.

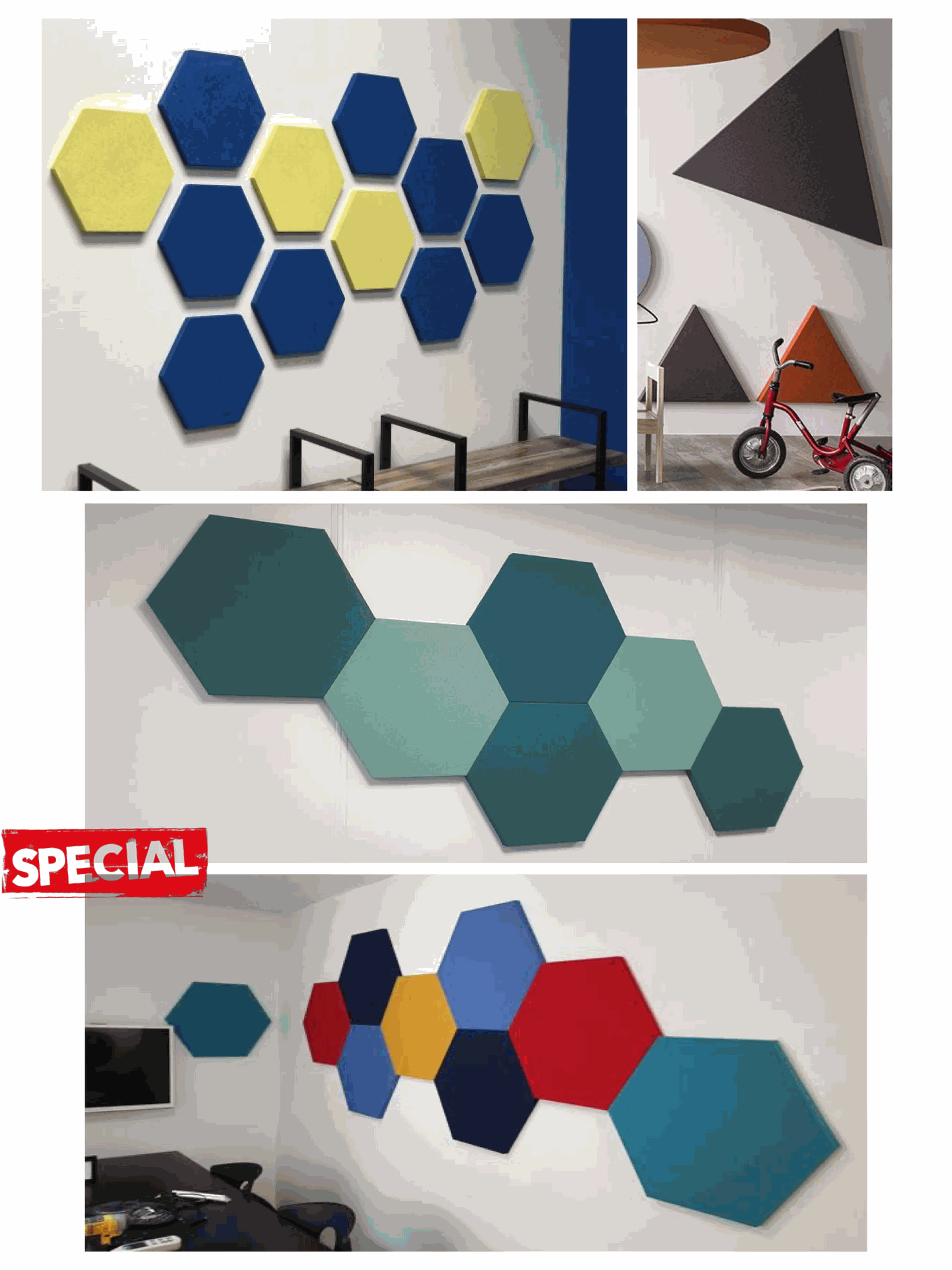

Hexagon
Hexagonal fabric panel for honeycomb arrangements and lounges — available in 25 / 50 mm thickness or on request.
PROBLEM-BASED GUIDANCE
What Problem Are You Trying to Solve?
Tell us your goal and we will guide you to the right Yamamah Smart solution.
I want to reduce echo inside the room
Recommended solution
Fabric Acoustic Panels, PET Panels, or Ceiling Clouds — placed on first reflection points and large hard surfaces.
I want better speech clarity in a meeting room
Recommended solution
50 mm fabric acoustic panels on rear and side walls (first reflection points) plus Ceiling Clouds above the meeting table.
I want to reduce sound transfer between rooms
Recommended soundproofing system
Fabric panels alone cannot block sound transmission. Combine them with MLV + acoustic insulation + sealing + a suitable wall or door system.
ACOUSTIC PERFORMANCE

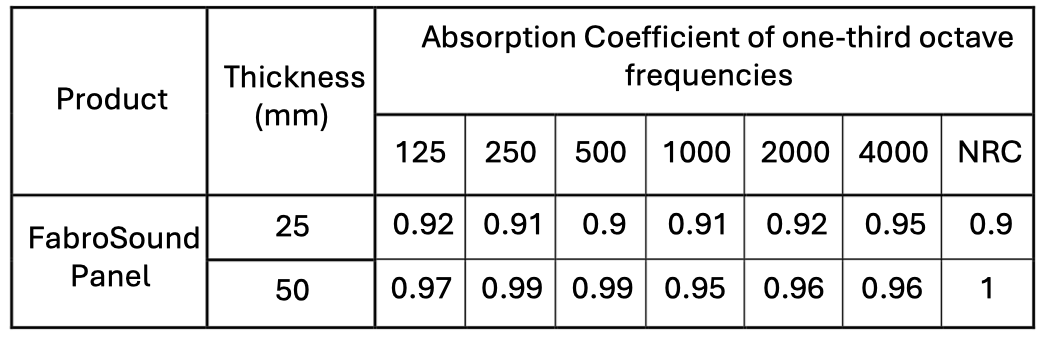

Tested Absorption Coefficients
| Thickness | 125 Hz | 250 Hz | 500 Hz | 1k Hz | 2k Hz | 4k Hz | NRC |
|---|---|---|---|---|---|---|---|
| 25 mm | 0.92 | 0.91 | 0.90 | 0.91 | 0.92 | 0.95 | 0.90 |
| 50 mm | 0.97 | 0.99 | 0.99 | 0.95 | 0.96 | 0.96 | 1.00 |
| 75 mm | — | — | — | — | — | — | ≈ 1.00 |
| 100mm | — | — | — | — | — | — | ≈ 1.00 |
NRC 1.00 means high sound absorption under tested laboratory conditions. Final room performance depends on room volume, installed area, mounting method, and distribution. Per-frequency values for 75 mm and 100 mm follow the same monotonic profile and are validated on a project basis from Camira/test certificates.
SYSTEM BUILD-UP
Recommended Acoustic Panel Build-Up
Yamamah designs the full build-up — not just the visible fabric face. The right layering determines acoustic performance, fire rating, durability, and the level of sound control you achieve.
BASIC ACOUSTIC WALL PANEL
For echo reduction and reverberation control inside a room.
1
Fabric finish (Camira or approved acoustic fabric)
2
Acoustic core (high-density mineral wool or approved core)
3
Edge frame and structural backing
4
Concealed fixing system (button-fix or clip)
5
Wall surface
ENHANCED SOUND CONTROL SYSTEM
For projects that also need lower sound transmission between rooms.
1
Fabric acoustic panel (front layer)
2
Air gap or mounting system
3
MLV sound barrier (if higher isolation needed)
4
Acoustic insulation (mineral wool or equivalent)
5
Gypsum board or wall substrate
6
Acoustic sealing at all gaps and edges
COVERAGE GUIDE
How Many Acoustic Panels Do You Need?
The number of panels depends on room size, ceiling height, surface materials, furniture, glass area, and the required reverberation control.
20%
Basic Improvement
Suitable for offices and meeting rooms that already have soft surfaces, carpets, or upholstery.
30%
Good Improvement
A reliable target for most offices, classrooms, training rooms, and meeting spaces.
40%+
High Reverberation Spaces
Recommended for restaurants, studios, mosques, lobbies, and rooms with hard surfaces.
To prepare an accurate proposal we ask for:
- Room length, width, and ceiling height
- Photos of the space
- Main acoustic problem
- Primary room use
PRODUCT COMPARISON
Fabric Acoustic Panels vs PET Acoustic Panels
Both families absorb sound, but each suits a different visual and project profile. Pick the one that matches your interior brief and acoustic target.
| Feature | Fabric Acoustic Panels (you are here) | PET Acoustic Panels |
|---|---|---|
| Appearance | Premium soft fabric finish | Modern PET felt look |
| Best For | Offices, mosques, studios, cinemas, meeting rooms | Offices, schools, decorative walls, open areas |
| Thickness | 25, 50, 75, 100 mm | Typically 9 or 12 mm felt (thicker on request) |
| Acoustic Performance | Excellent with thicker panels (up to NRC 1.00 depending on build-up) | Good for echo control with design flexibility |
| Customization | Fabric colors and custom sizes | CNC shapes, colors, perforation patterns |
| Recommended Use | Premium acoustic absorption | Modern decorative acoustic treatment |
PRODUCT DETAILS
Look Closer

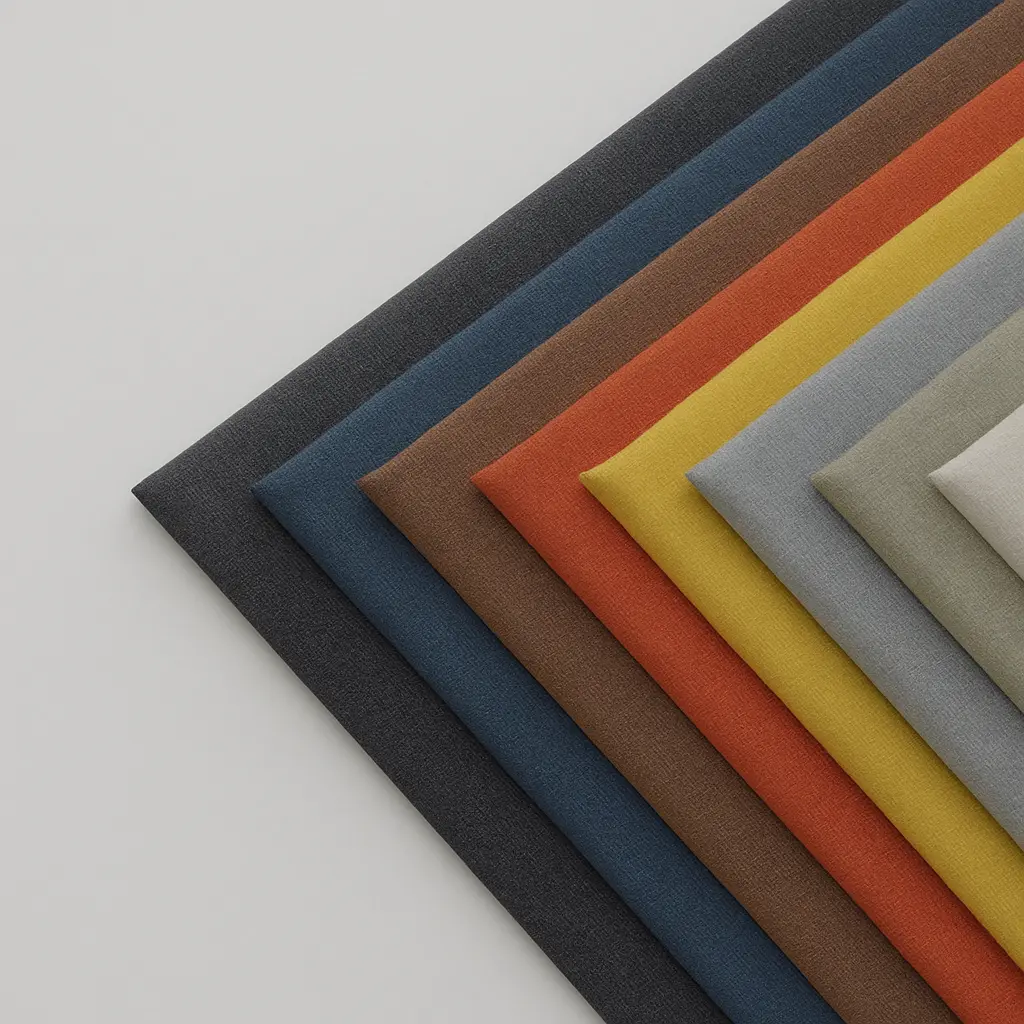

Fabric Texture & Colors
60+ Camira fabric colors across Cara, Lucia T2T, and Era collections. Texture is engineered to pass sound while finishing the panel cleanly.
Panel Edge Detail
Tight square or chamfered edges, fabric tucked behind the frame for a flush, premium finish — no exposed staples or trim.
Thickness Options
25 / 50 / 75 / 100 mm side-by-side — visible difference in depth tunes absorption at low frequencies.
Installation Detail
Concealed clips behind the panel — fast, clean, and removable for maintenance access to MEP behind the wall.
INSTALLATION METHODS
Three Approved Fixing Systems
Two wall-mount systems and one ceiling suspension — selectable per substrate, finish, and access requirement.
WALL · CONCEALED

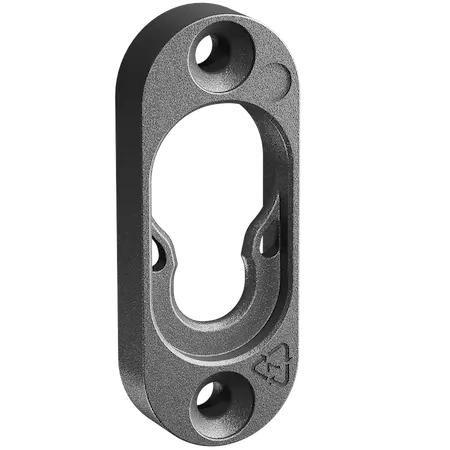

Button-Fix
Concealed button-style mount adhered to the wall, matching socket on the panel back. Fast installation with no visible fasteners.
Used for
Offices · meeting rooms · classrooms.
Advantage
Fast install, low visual footprint, suitable for level surfaces.
Maintenance
Panels can be removed individually with care — not designed for daily access.
WALL · DEMOUNTABLE
Metallic-Clip
Metal Z-clip system — one clip fixed to the wall, mating clip on the panel back. Easy panel removal for MEP access or repositioning.
Used for
Where access behind the wall is needed.
Advantage
Strong, repeatable demount cycle, accommodates slight wall irregularity.
Maintenance
Designed for repeat removal — ideal for serviceable walls.
CEILING · ADJUSTABLE
Suspension-Kit
Cable suspension with adjustable steel wires anchored to the structural ceiling. Ideal for open ceilings, exposed services, and clouds/rafts layouts.
Used for
Open studios, restaurants, atria, mosques.
Advantage
Avoids the structural ceiling, services remain accessible.
Maintenance
Cables can be re-tensioned or repositioned without damaging panels.
FABRIC OPTIONS
Choose Your Camira Fabric
Three Camira collections, all 10-year guaranteed and fire-rated. Expand a card to see the full palette, specs, and PDF download.
32 COLORS · CLASSIC
Camira Cara
32 COLORS · CLASSIC
Camira Cara
- Collection
- Camira Cara
- Colors
- 32 colors
- Composition
- 95% polyester · 5% nylon
- Weight
- 320 g/m²
- Fire rating
- EN 13501-1 B-s1,d0
- Cleaning
- Bleach cleanable, vacuum, damp sponge
- Guarantee
- 10-year Camira guarantee
31 COLORS · ECO
Camira Lucia T2T
31 COLORS · ECO
Camira Lucia T2T
- Collection
- Camira Lucia T2T
- Colors
- 31 colors
- Composition
- 100% recycled polyester (post-consumer)
- Weight
- 330 g/m²
- Fire rating
- EN 13501-1 B-s1,d0
- Eco
- EU Ecolabel, non-metallic dyestuffs
- Cleaning
- Washable 60°C, bleach cleanable
- Guarantee
- 10-year Camira guarantee
44 COLORS · RECYCLED
Camira Era
44 COLORS · RECYCLED
Camira Era
- Collection
- Camira Era
- Colors
- 44 colors
- Composition
- 100% post-consumer recycled polyester
- Weight
- 395 g/m²
- Fire rating
- EN 13501-1 B-s1,d0
- Eco
- Recycled content, Indoor Advantage Gold
- Cleaning
- Washable 60°C, bleach cleanable
- Guarantee
- 10-year Camira guarantee
APPLICATIONS
Where to Use Acoustic Fabric Panels
Each card shows the typical acoustic problem, recommended thickness, installation area, and related Yamamah products that pair well for the space.
Offices & Meeting Rooms
Problem: Echo and poor speech clarity during meetings and video calls.
Thickness: 50 mm
Where: Rear wall + first reflection points + ceiling clouds above table
Pair with:Ceiling Clouds →
Mosques
Problem: Long reverberation reducing sermon clarity and increasing strain.
Thickness: 50–75 mm
Where: Side walls, rear wall, and ceiling — covering 30–40% of hard surfaces
Studios & Podcast Rooms
Problem: Early reflections and standing waves degrade recording quality.
Thickness: 75 mm
Where: First reflection points, rear wall, and bass traps at corners
Pair with:Acoustic Foam →

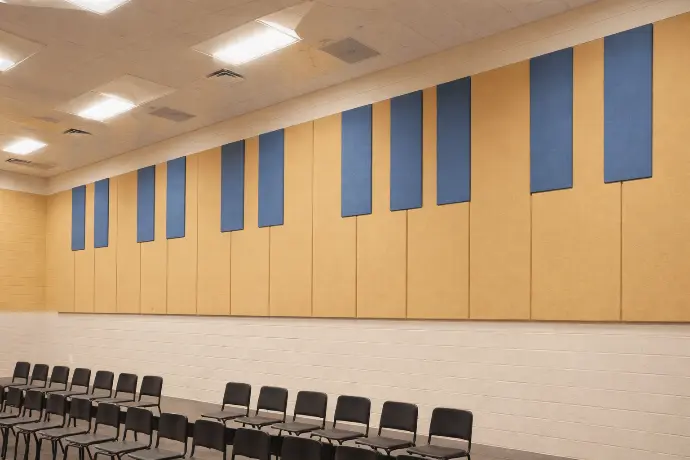

Classrooms & Training Rooms
Problem: Hard surfaces reduce speech intelligibility for students.
Thickness: 50 mm
Where: Rear and side walls + ceiling clouds for hard-floor rooms
Pair with:Ceiling Clouds →
Restaurants & Cafés
Problem: High noise levels make conversation difficult and reduce guest comfort.
Thickness: 50–75 mm
Where: Ceiling baffles, ceiling clouds, and feature walls — 35–45% coverage

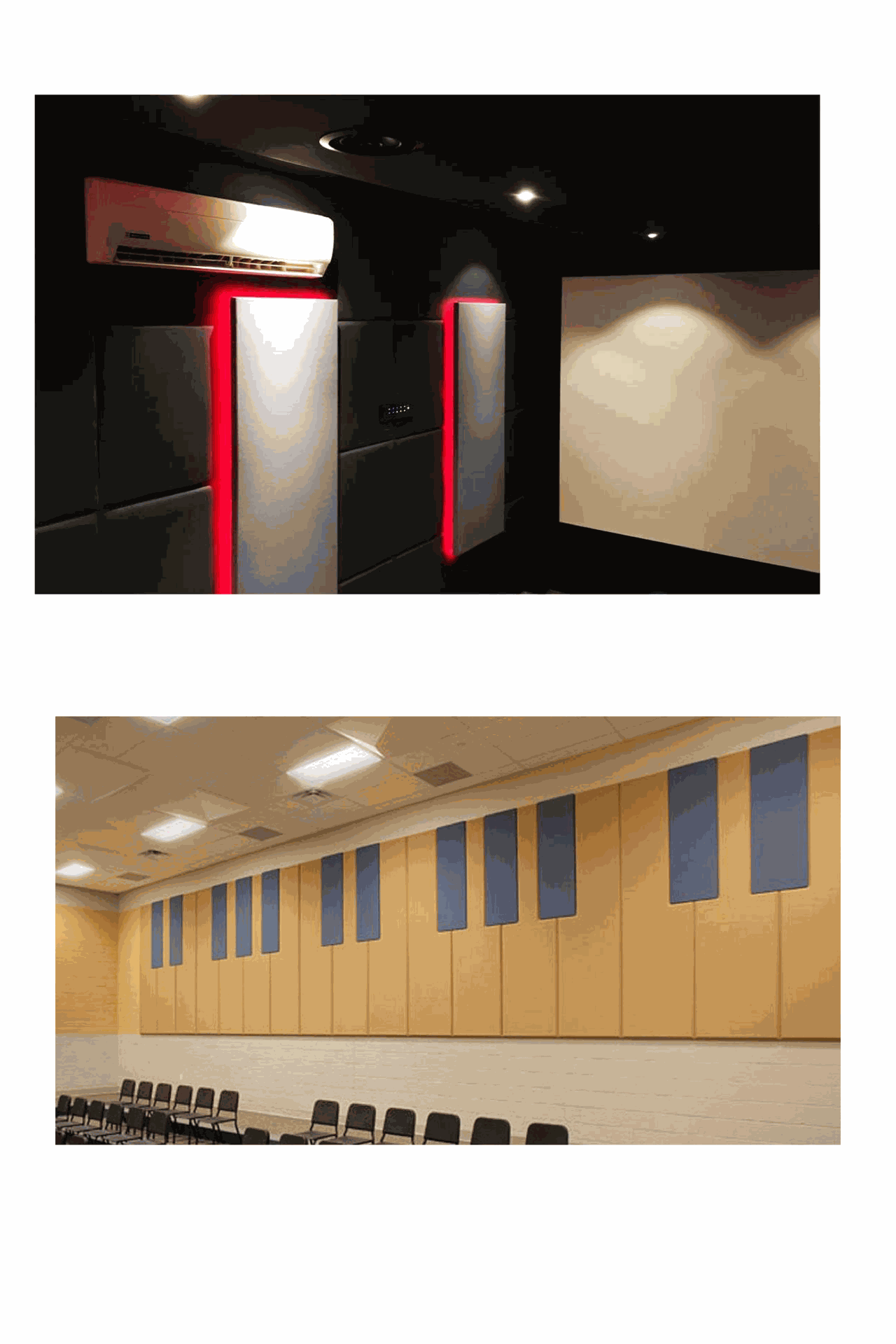

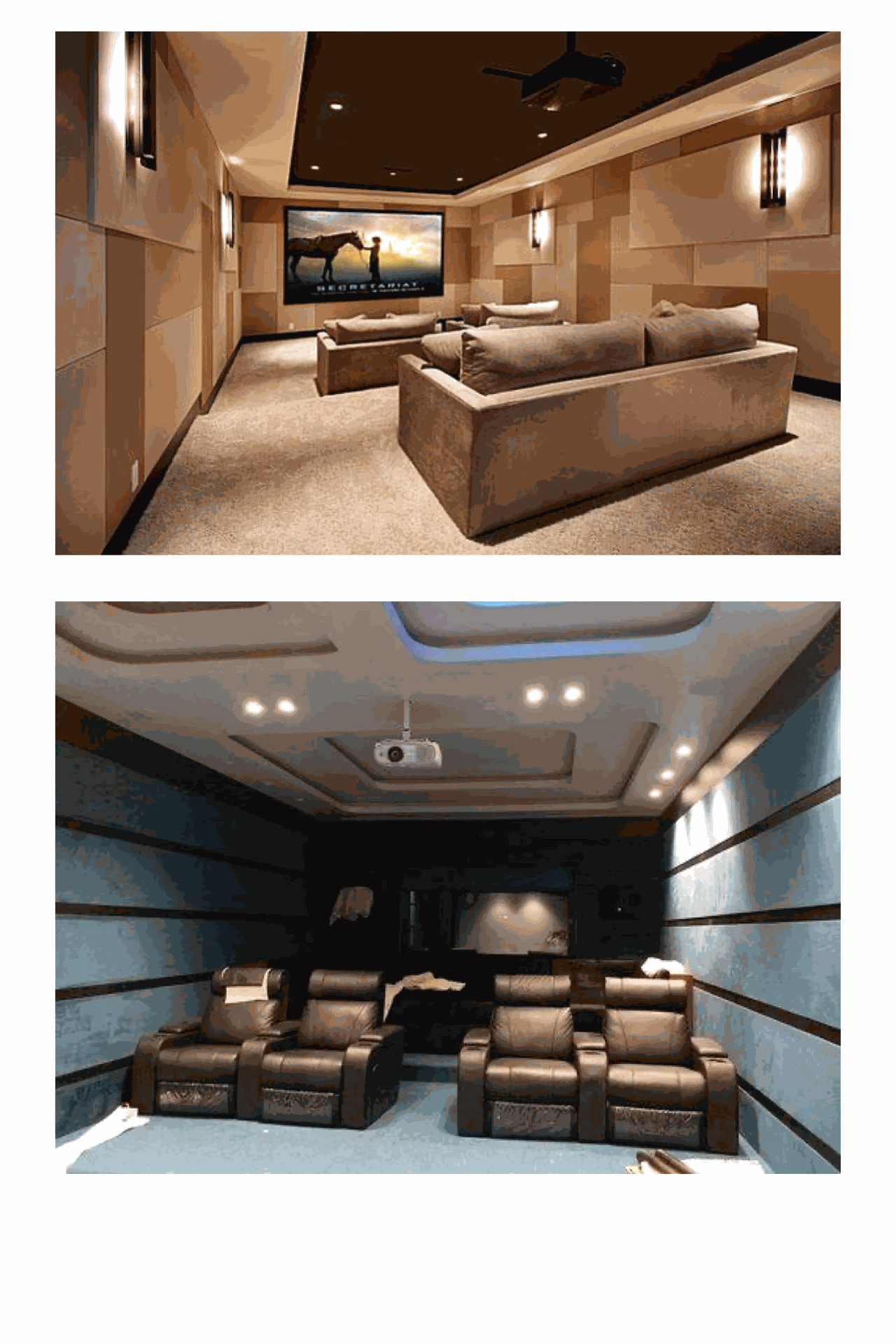

Cinemas & Home Theaters
Problem: Sound reflections muddy the cinematic playback and dialog.
Thickness: 75 / 100 mm
Where: Side walls, rear wall, ceiling, bass traps — tuned for cinema playback
Pair with:Acoustic Foam →
Hotels & Hospitality
Problem: Open public spaces with hard finishes amplify noise.
Thickness: 50 mm
Where: Feature walls, ceiling clouds, lobby and corridor treatments
Pair with:Ceiling Clouds →
Clinics & Healthcare
Problem: Patient privacy and a calm environment require lower reverberation.
Thickness: 25–50 mm
Where: Waiting and consultation rooms — walls and ceiling clouds

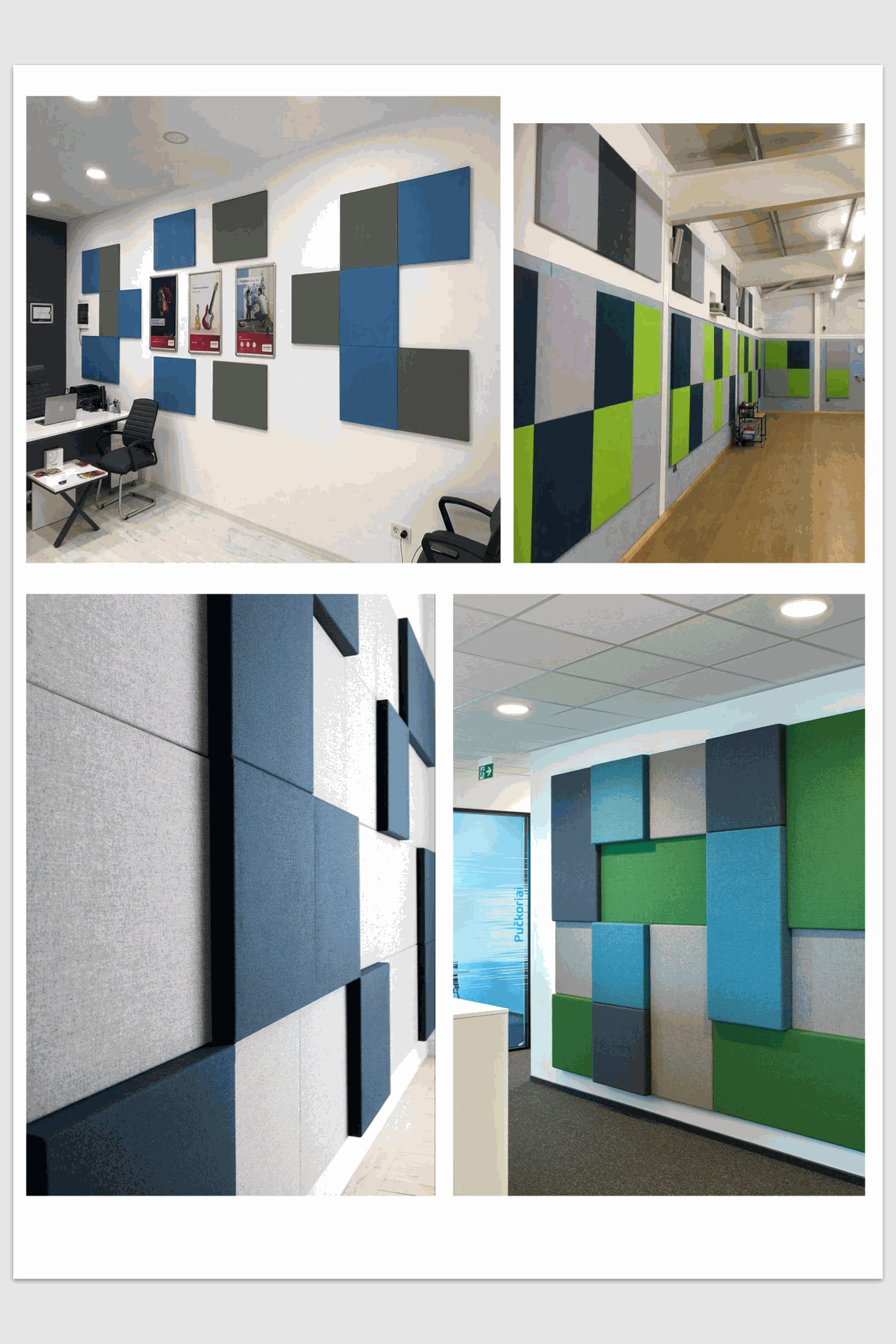

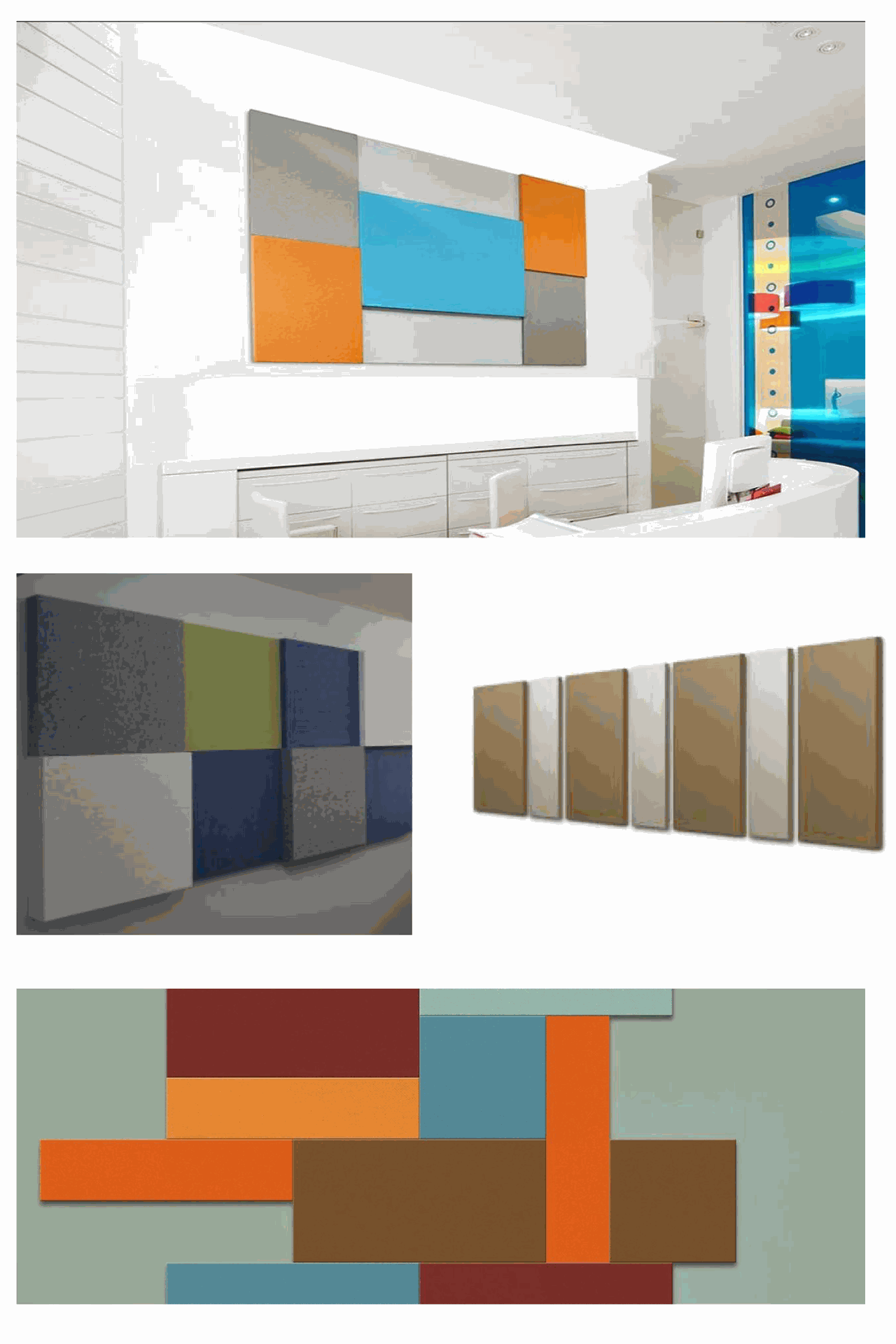

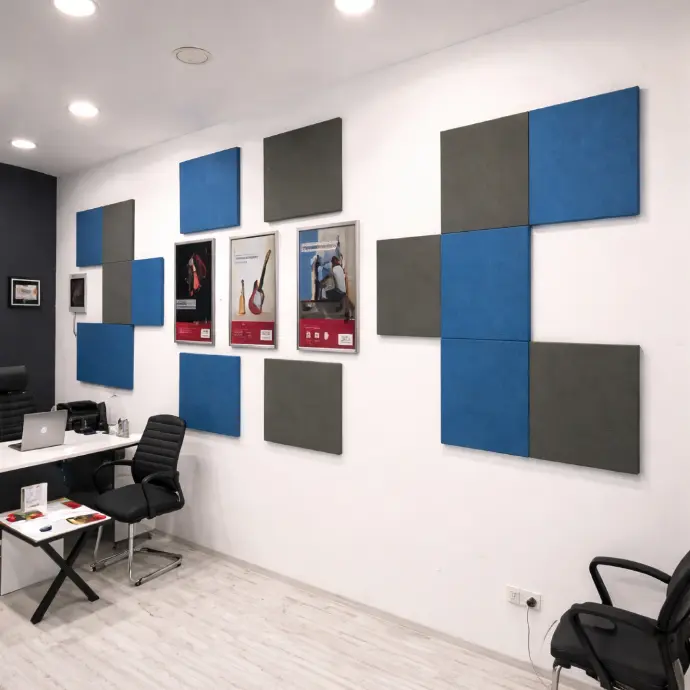

— INSPIRATION GALLERY —

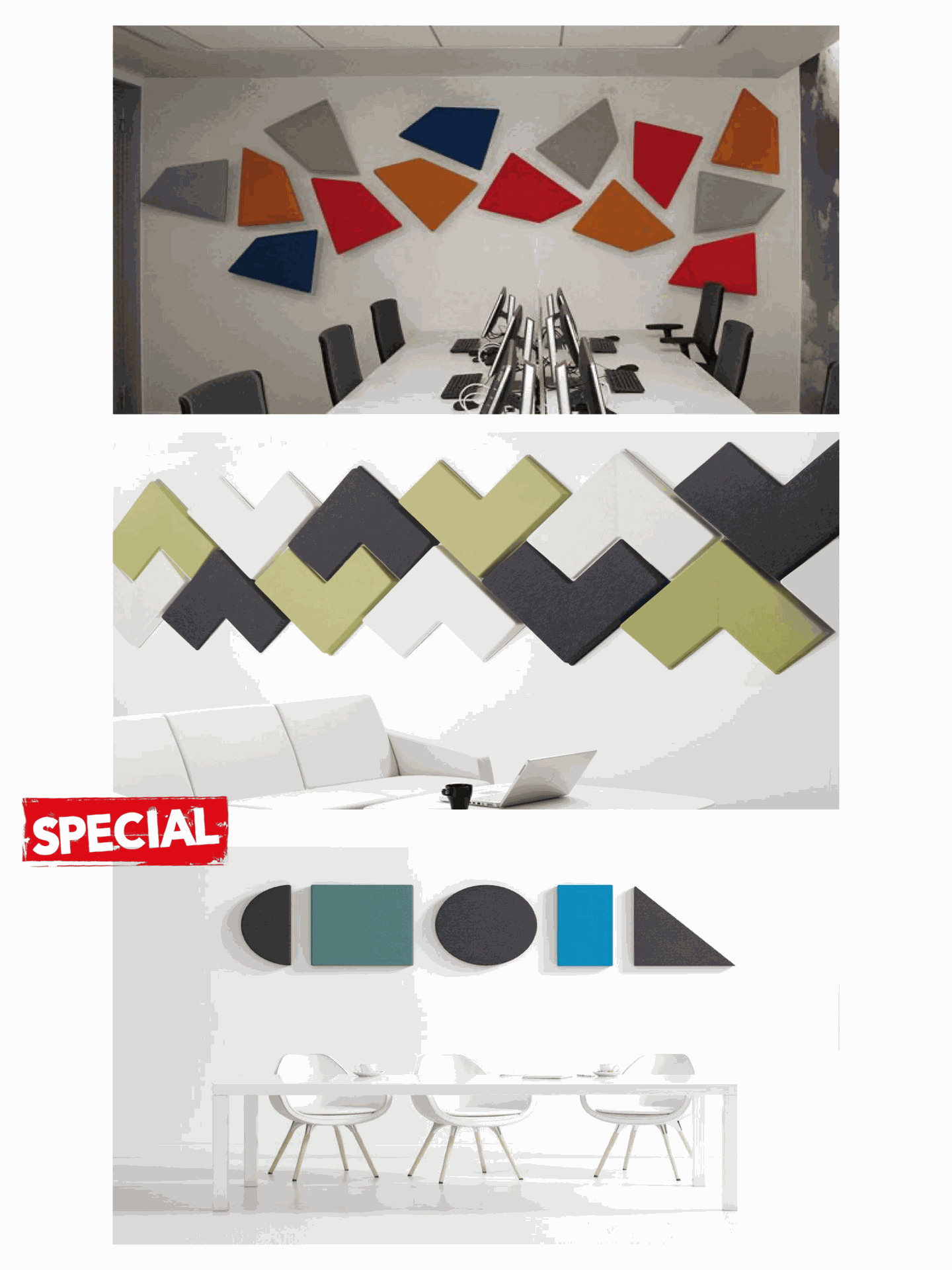

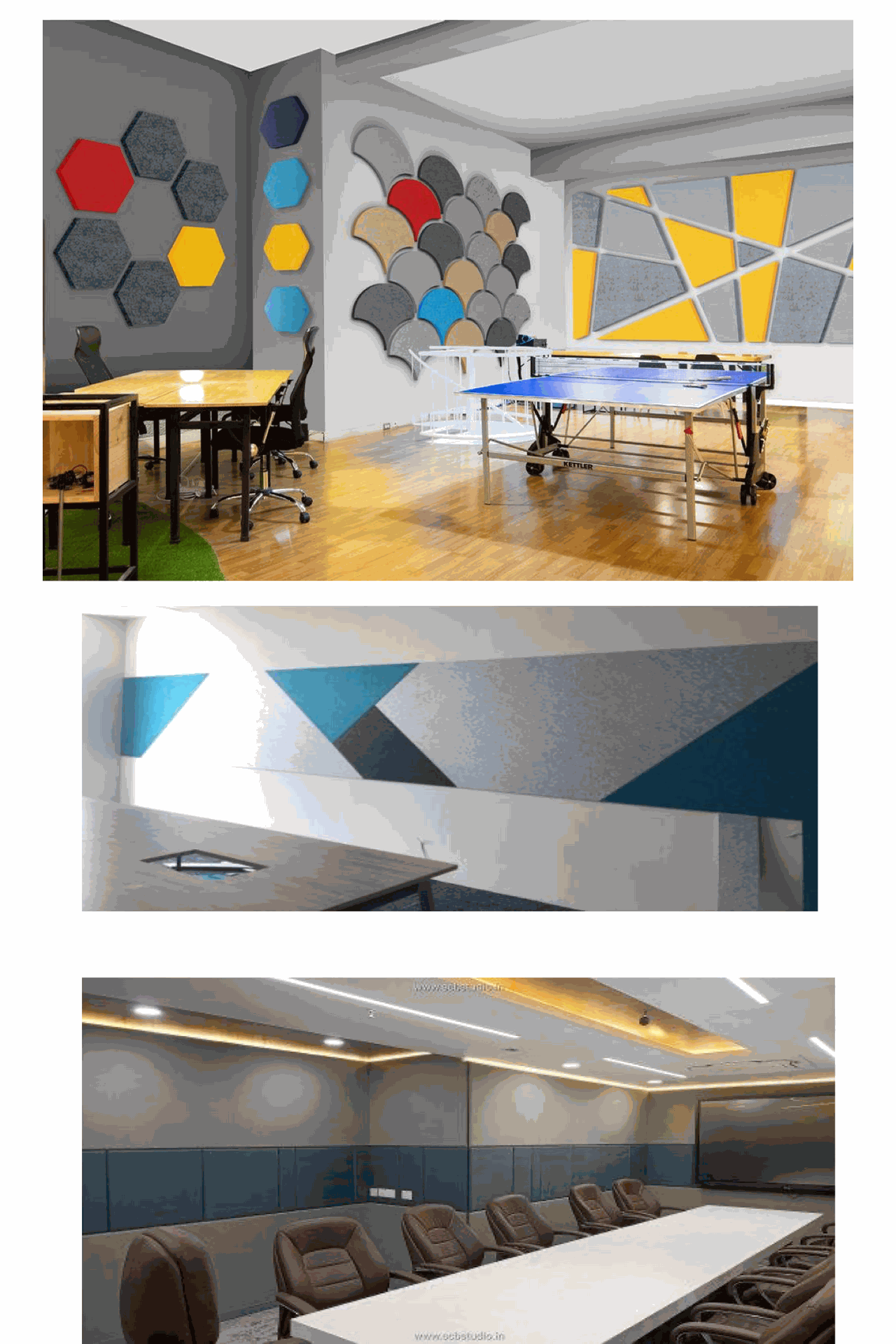

Inspiration by Space Type
Real installations across 44 projects — offices, lobbies, restaurants, classrooms, studios, cinemas, and homes. Filter by space type, click any image to enlarge.

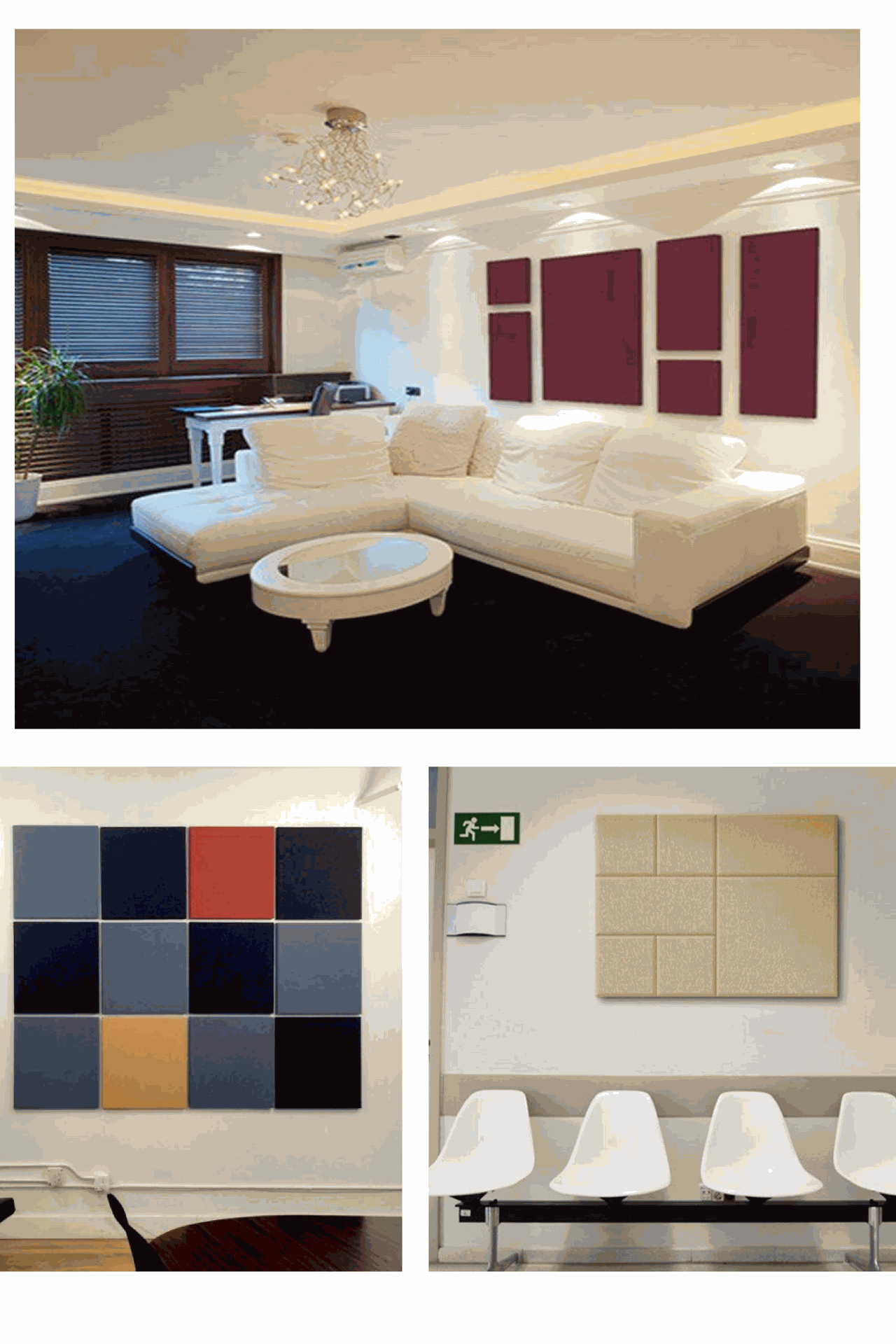

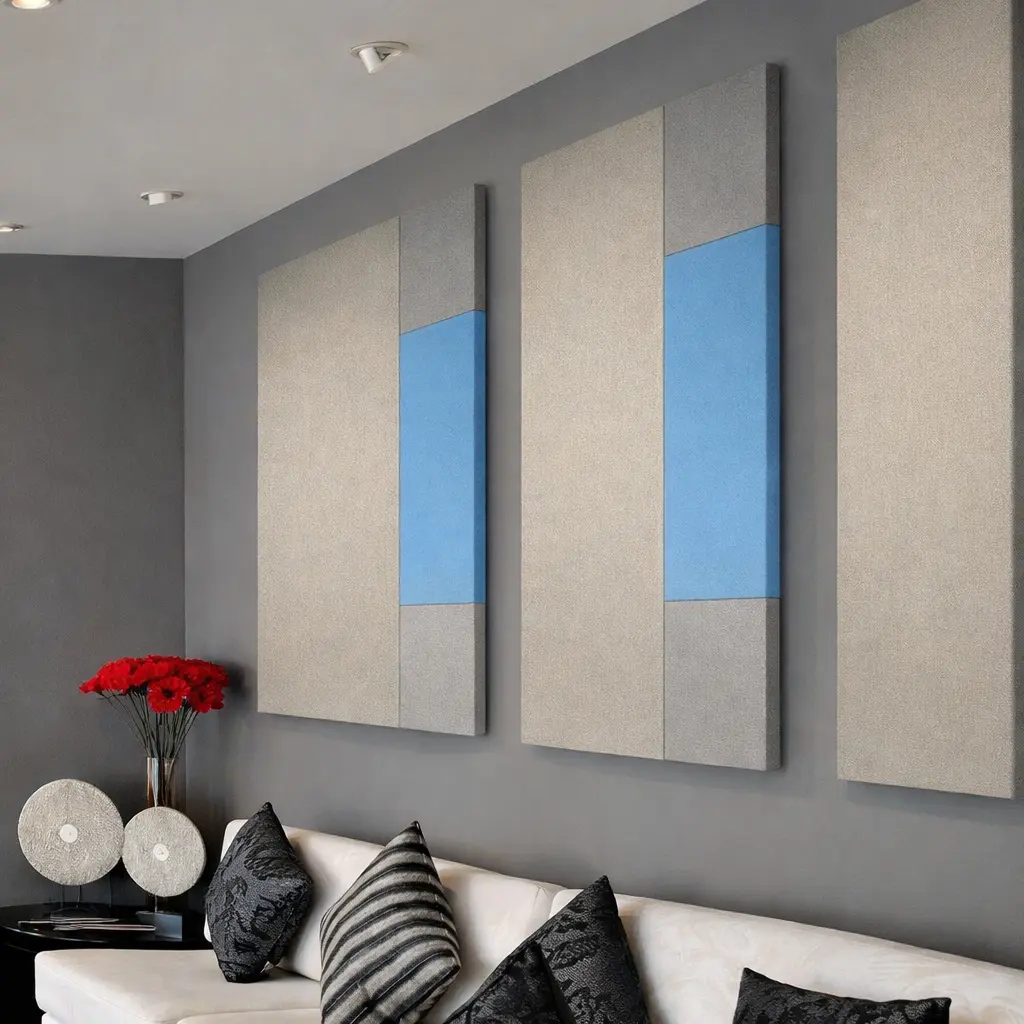

🛋️ Living Rooms

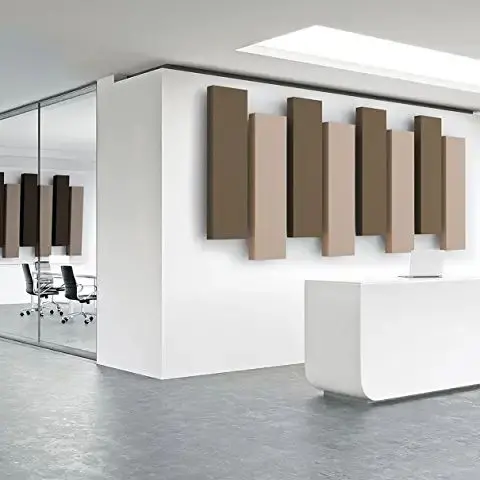

🏛️ ReceptionHospitality Lobby Triangles

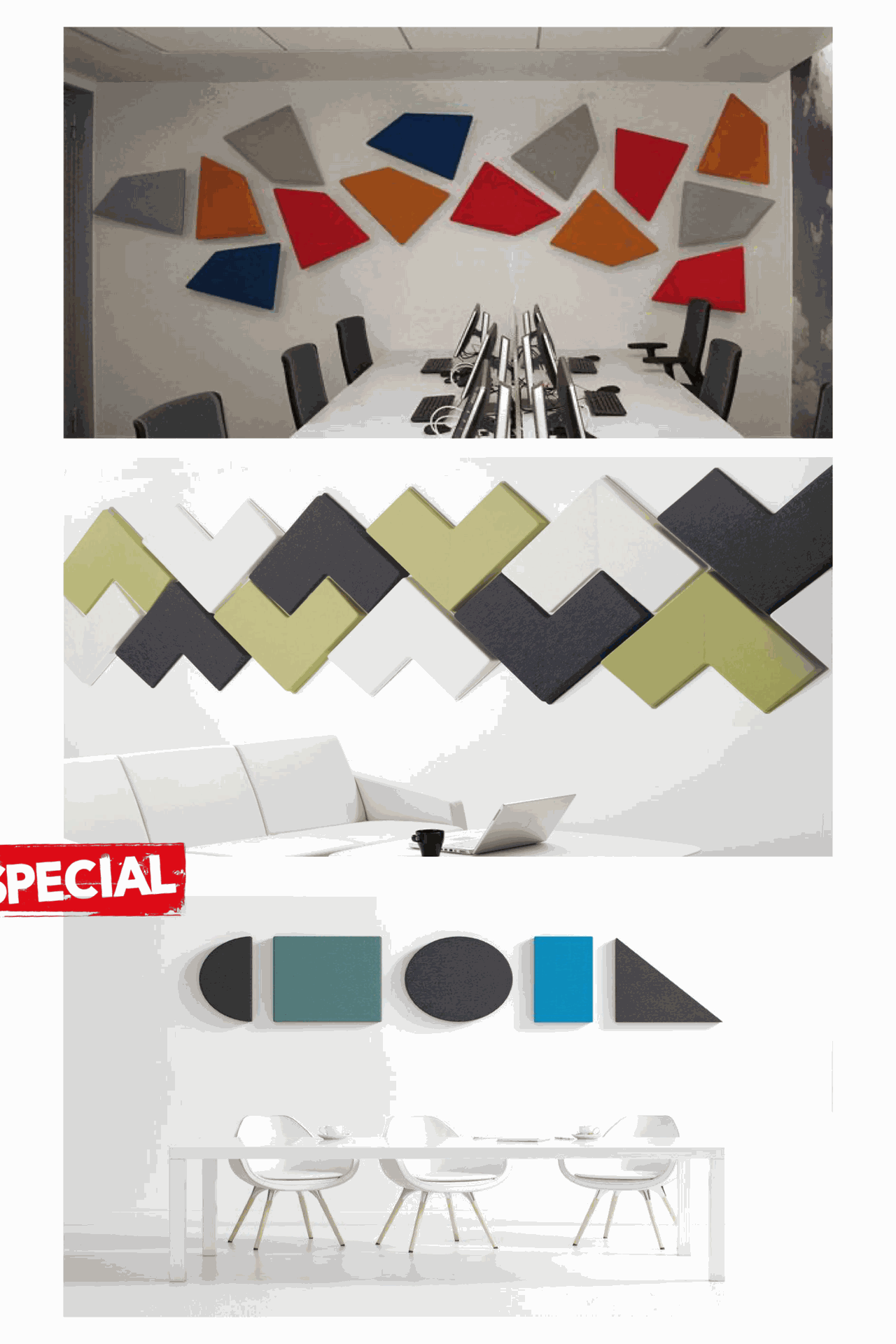

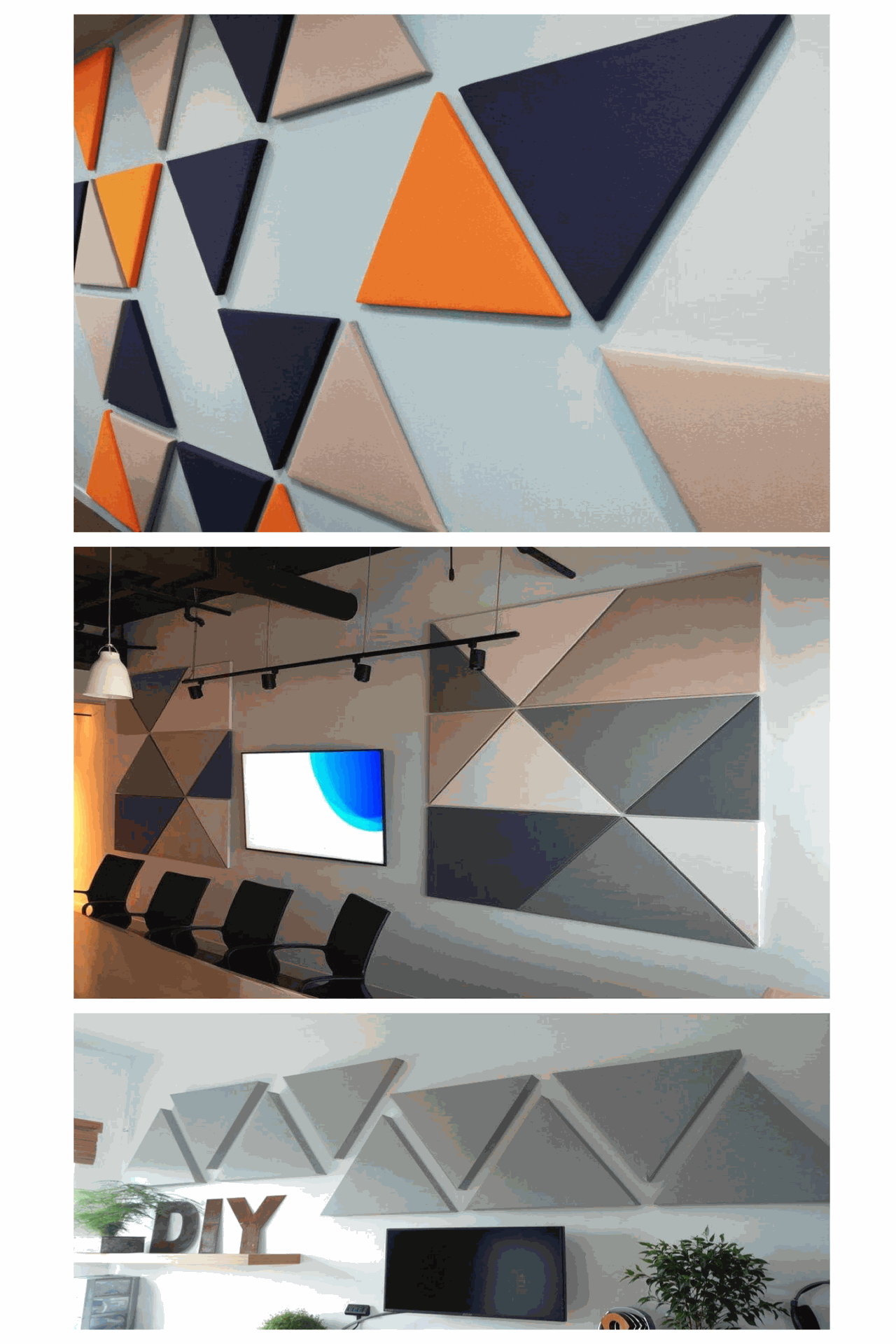

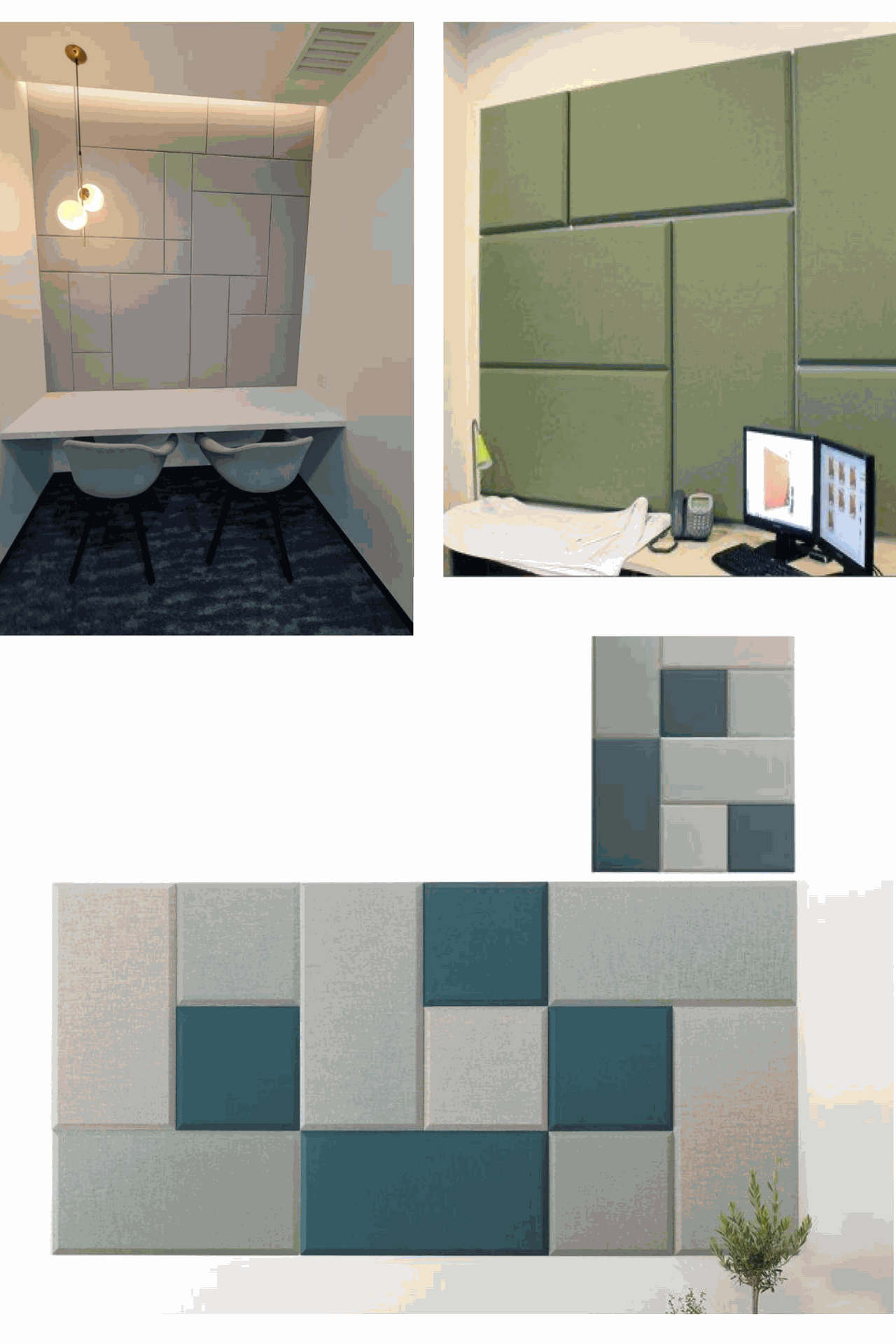

🏢 OfficesCorporate Triangle Meeting Room

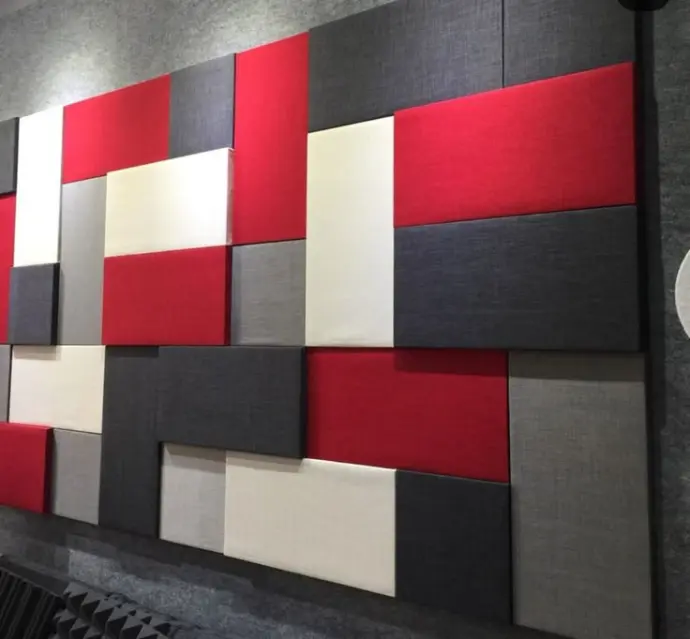

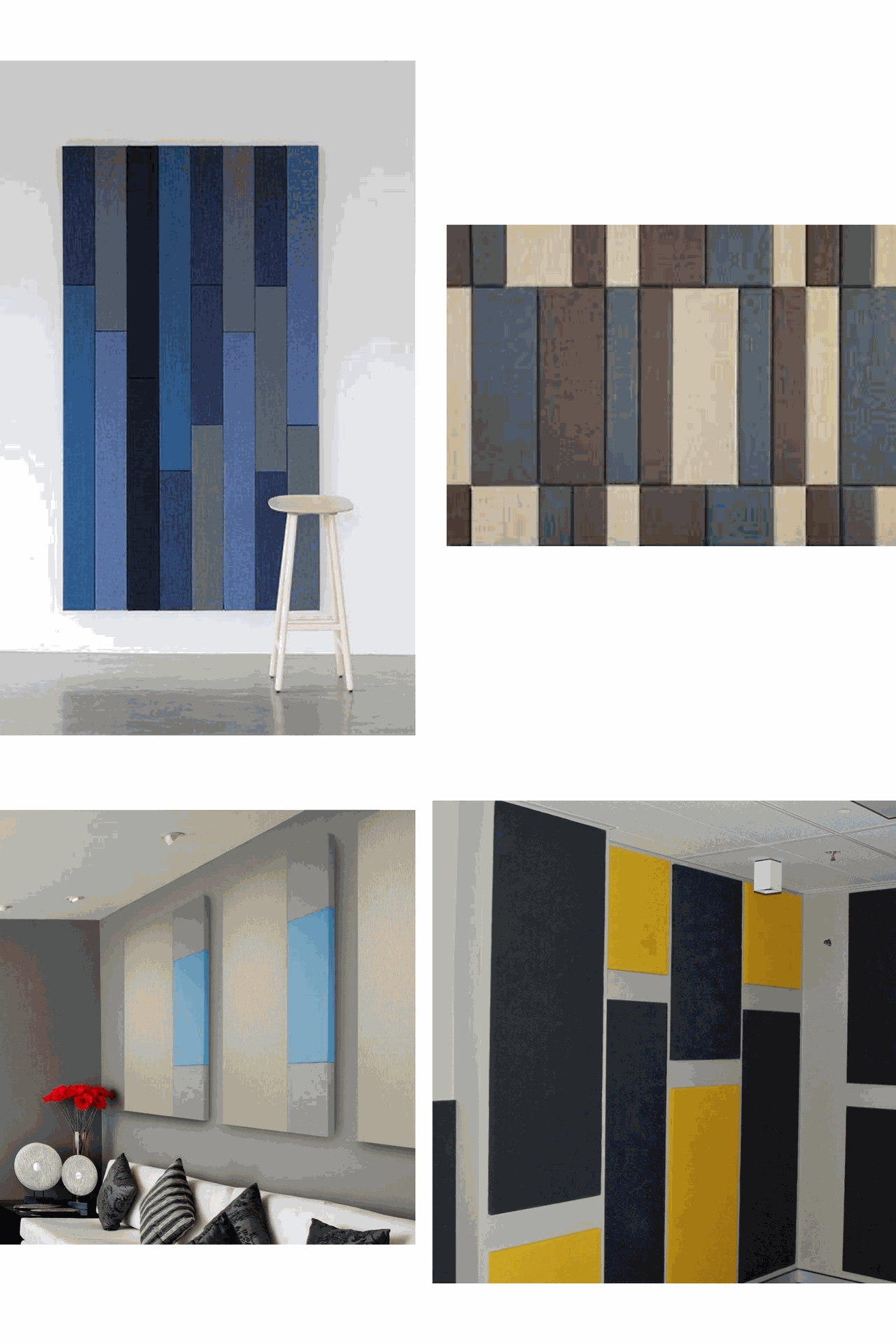

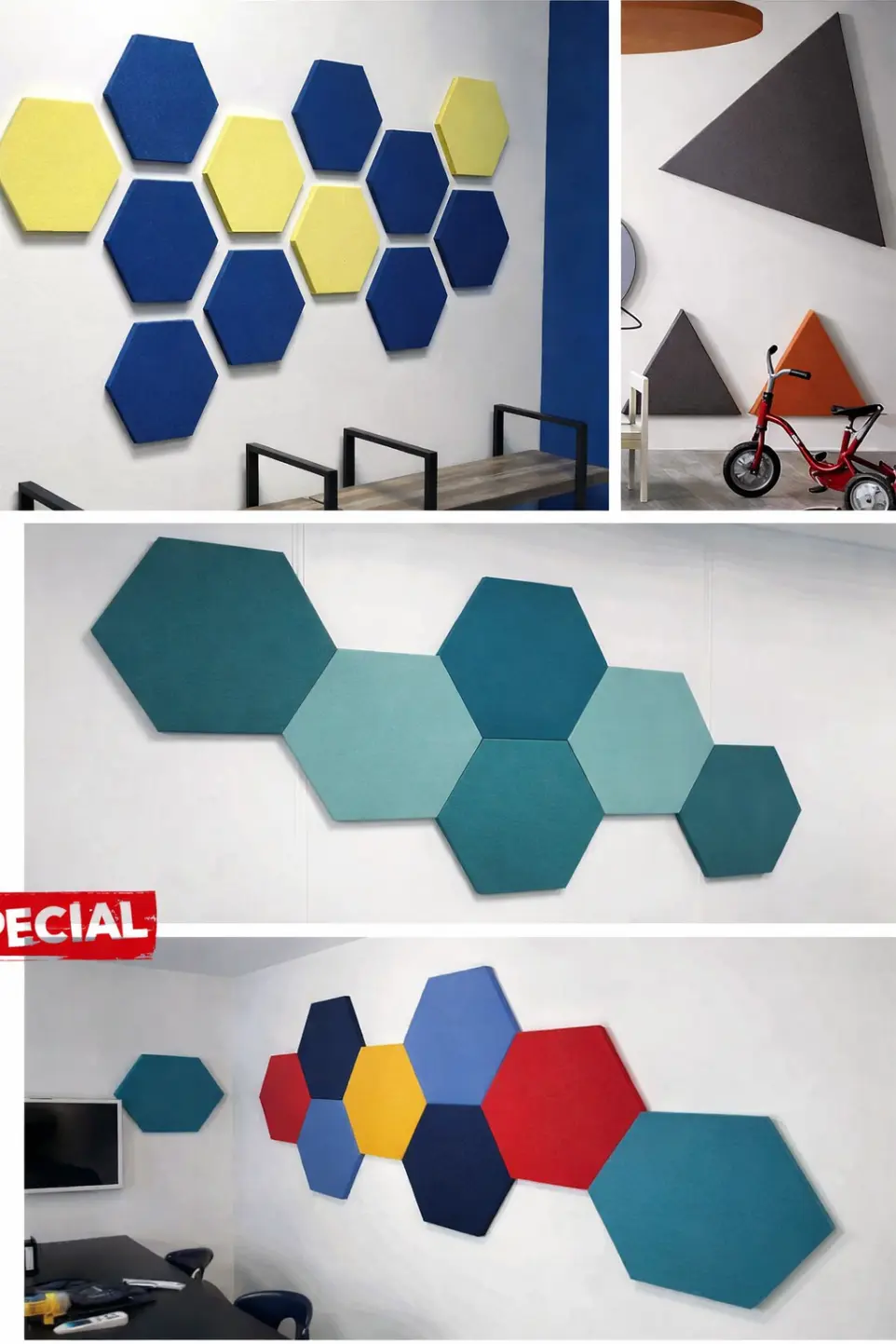

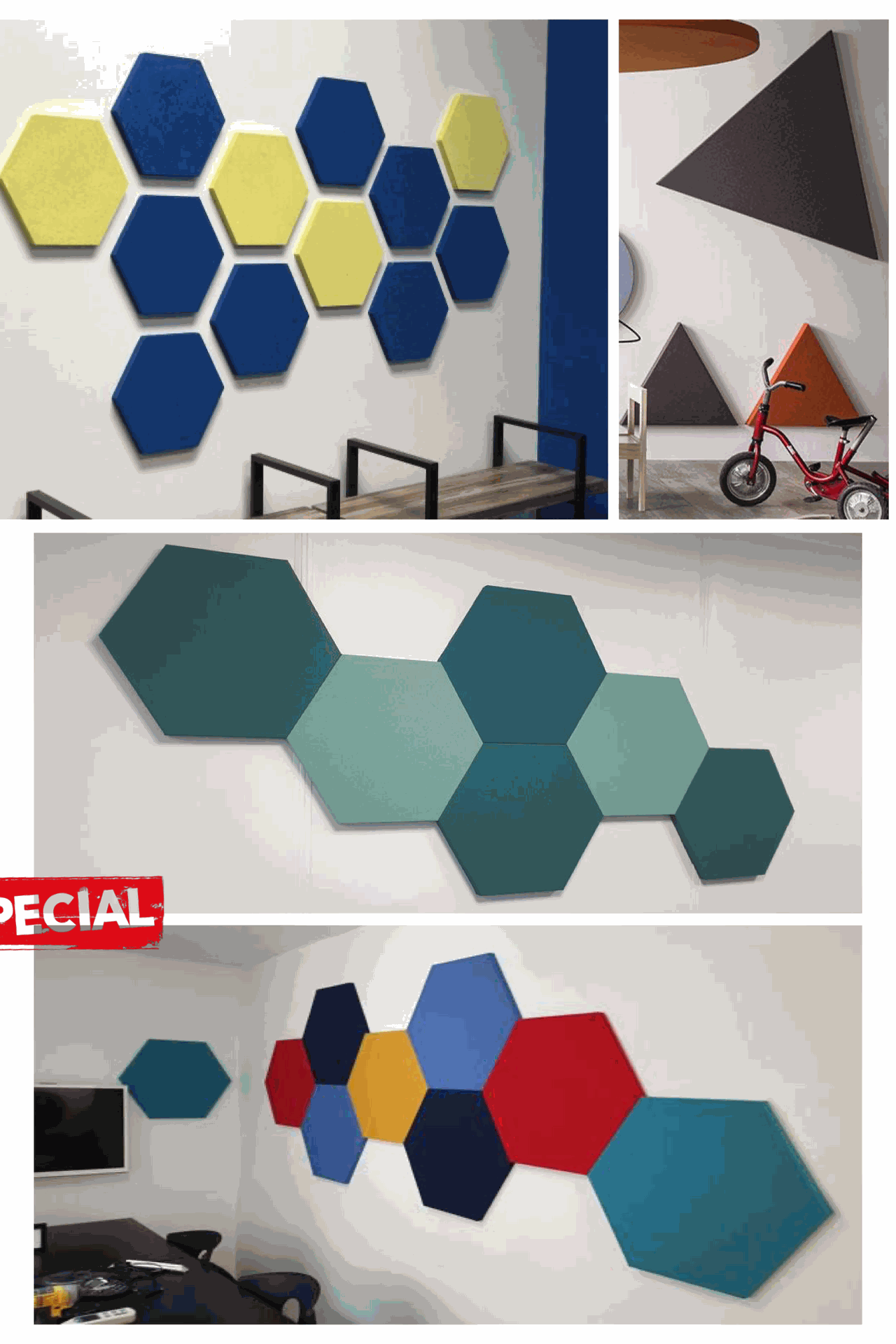

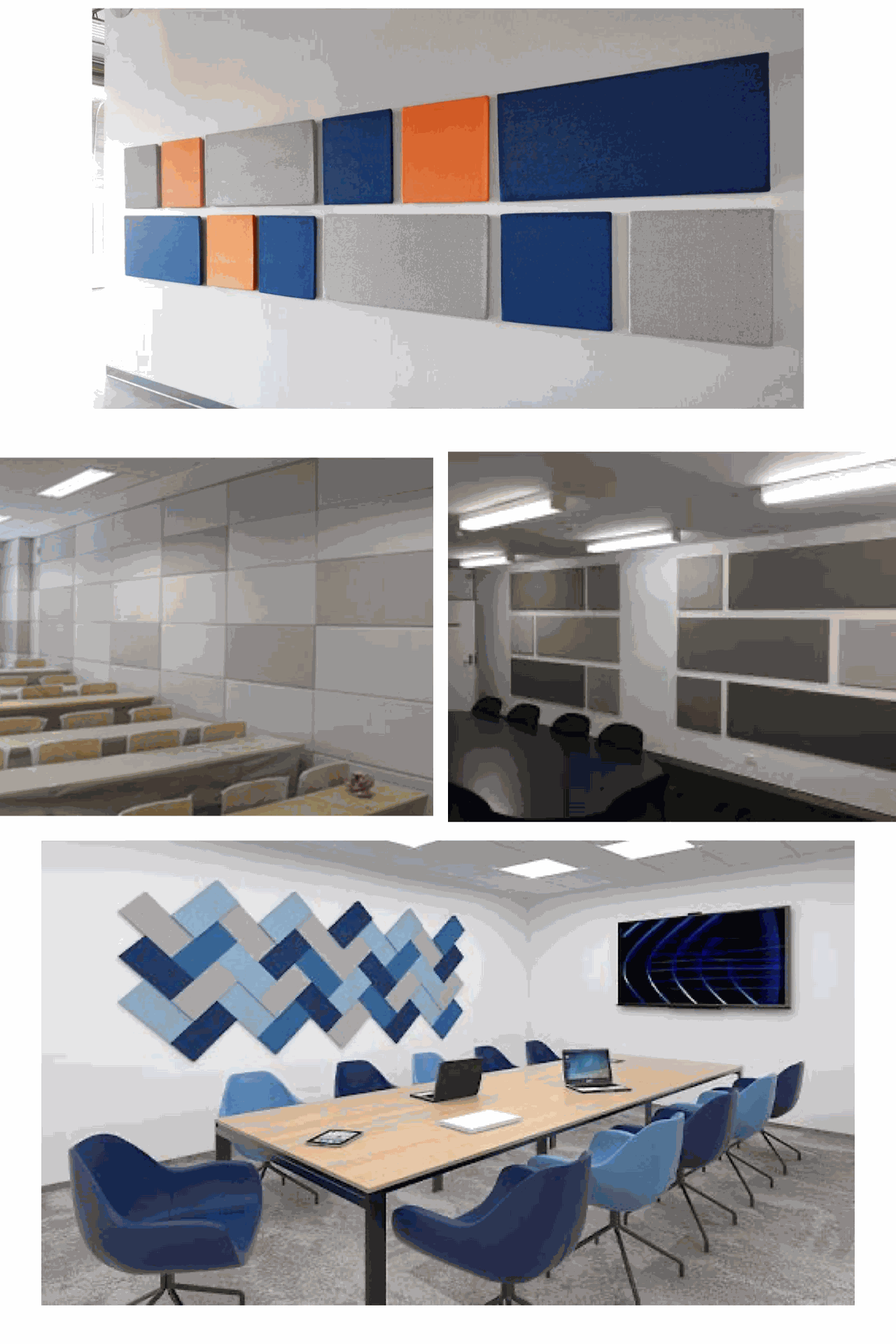

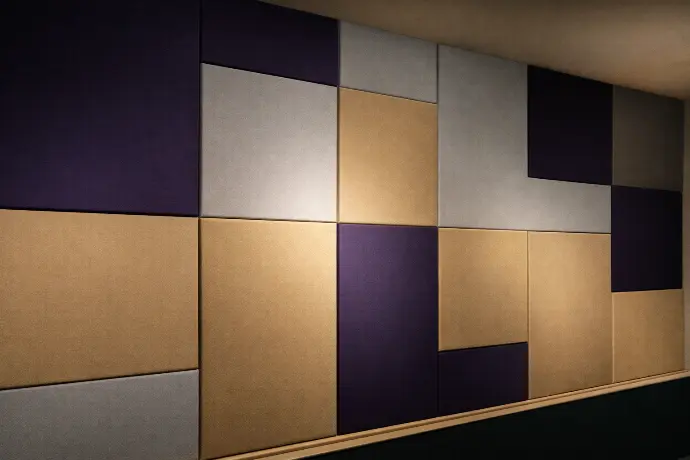

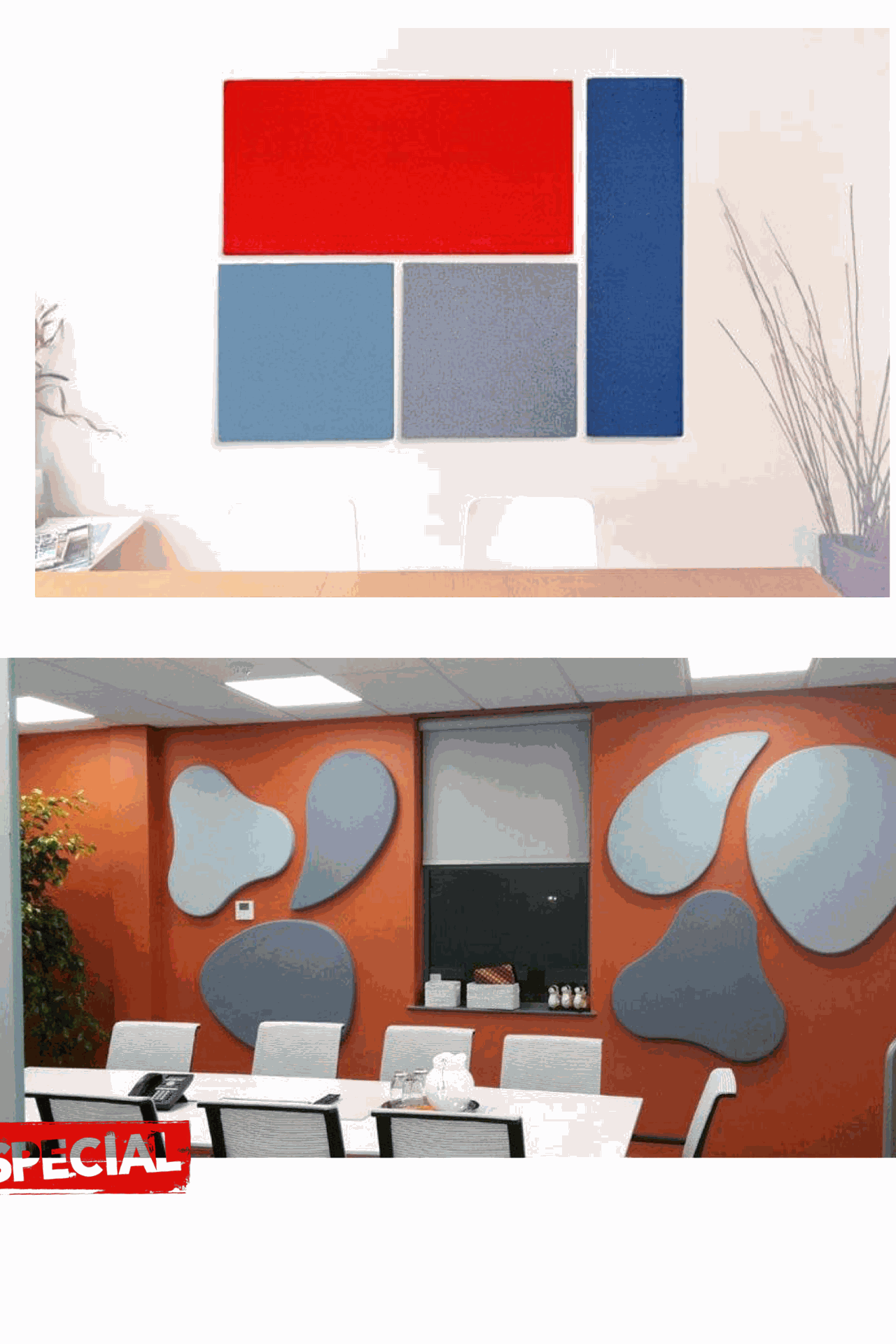

🏢 OfficesMulti-Shape Mosaic Applications

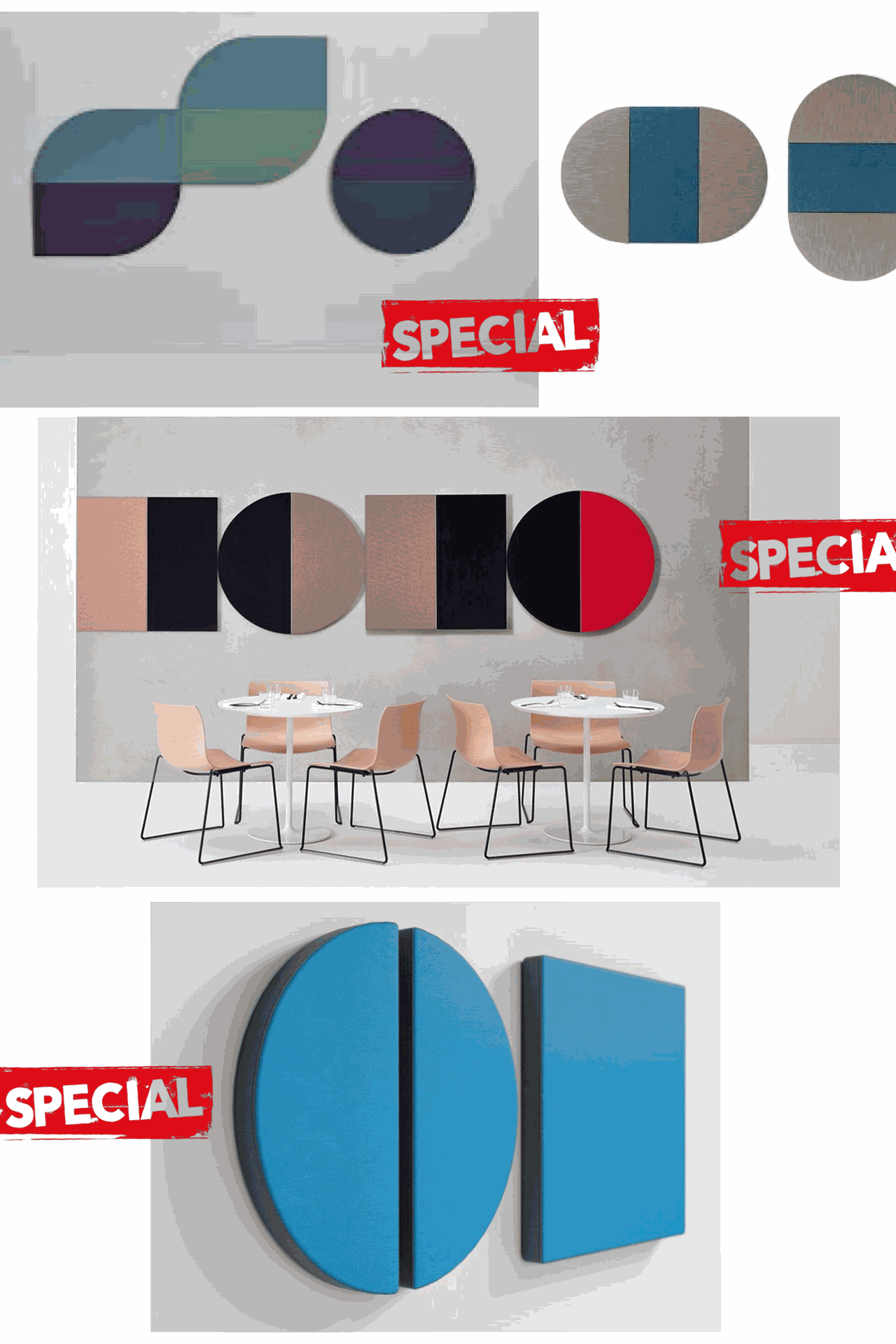

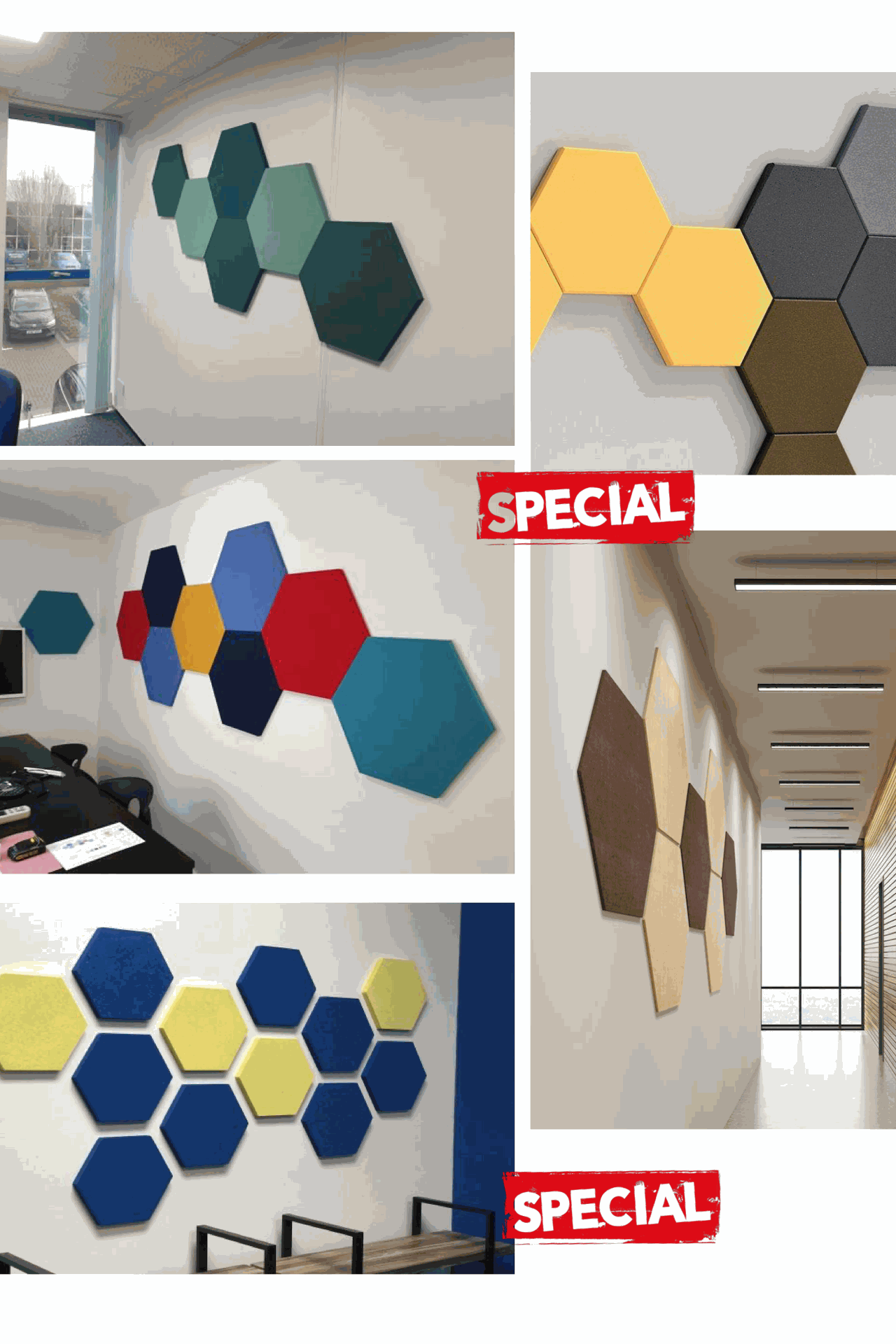

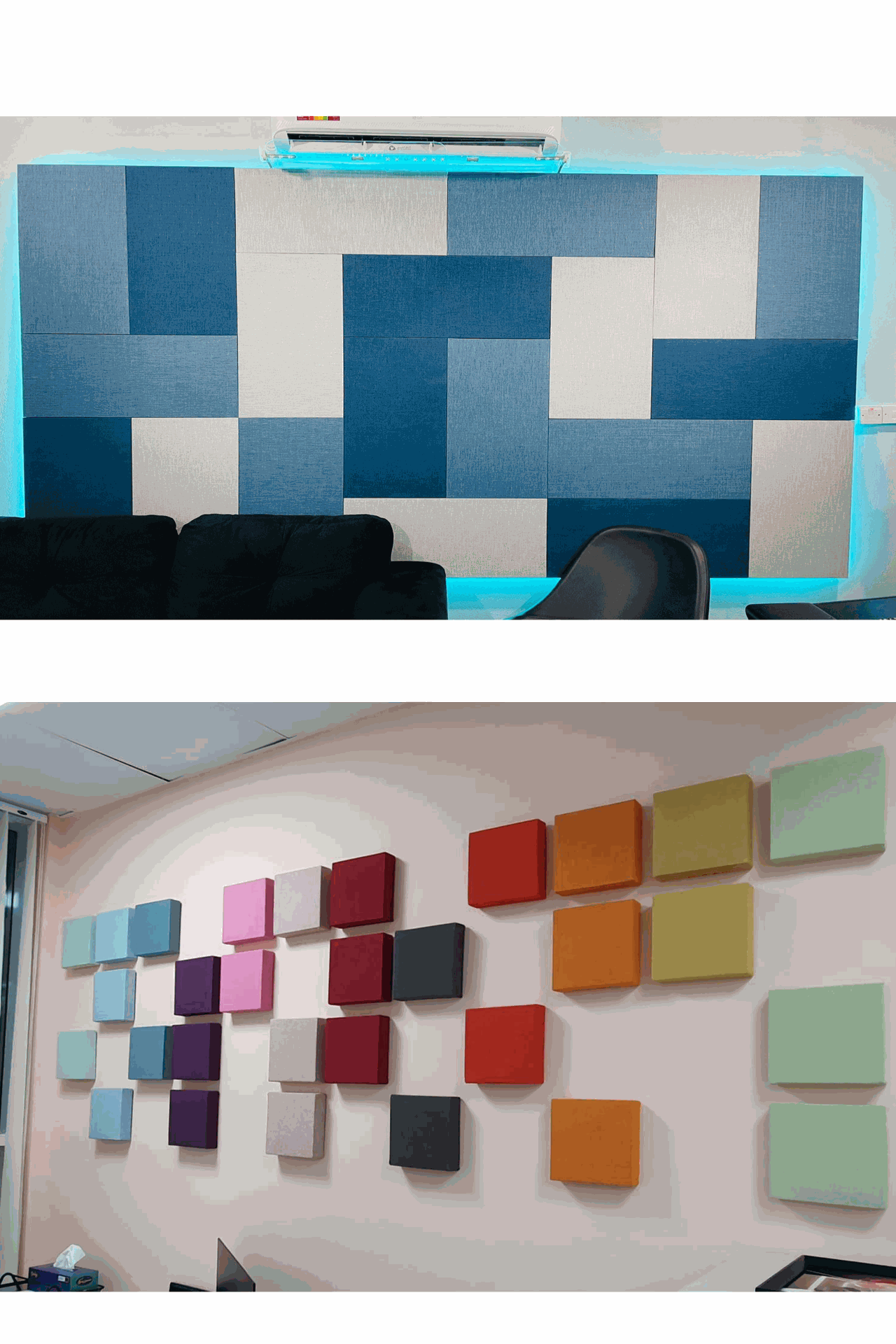

🏢 OfficesCircles, Squares & Hexagons Mix

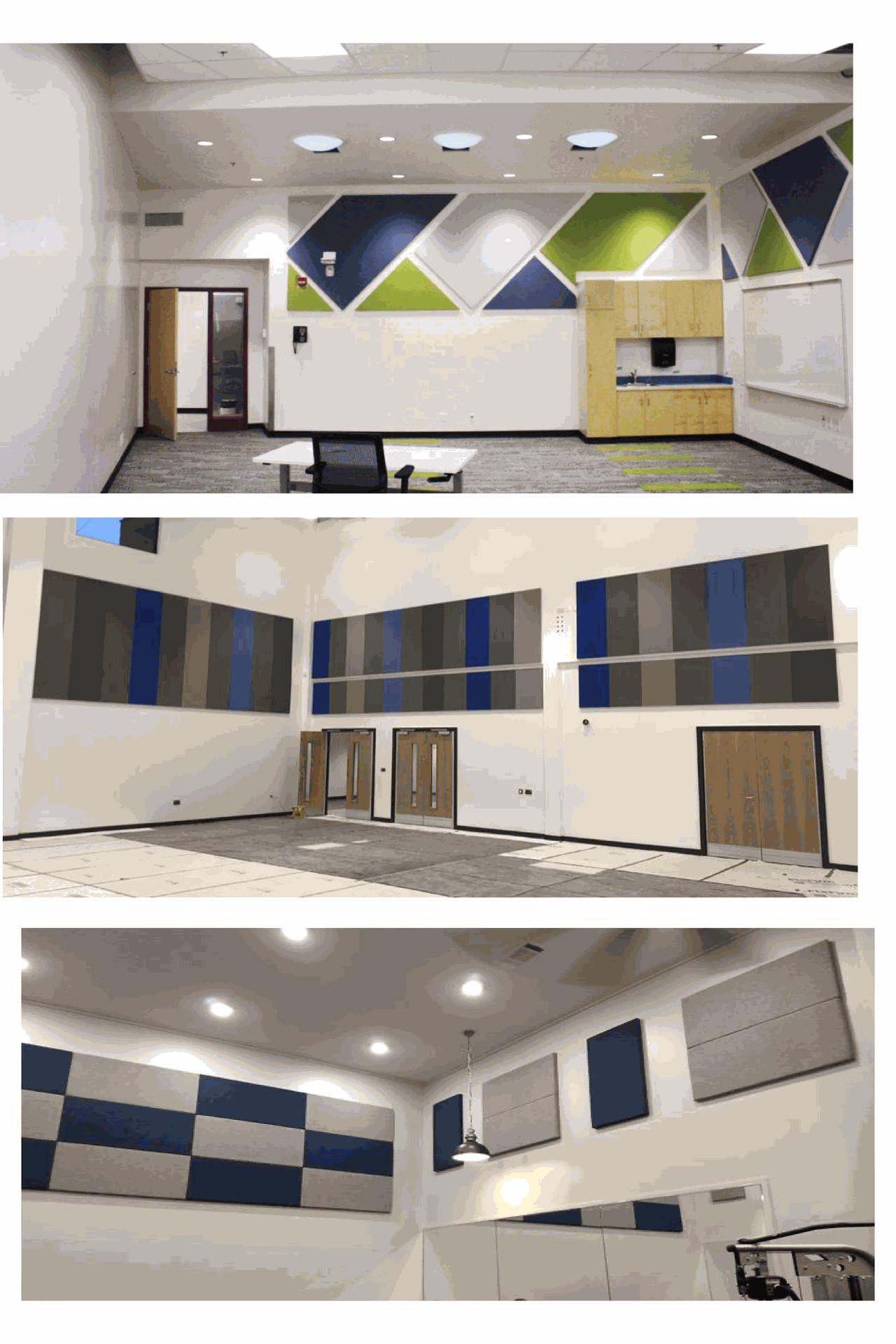

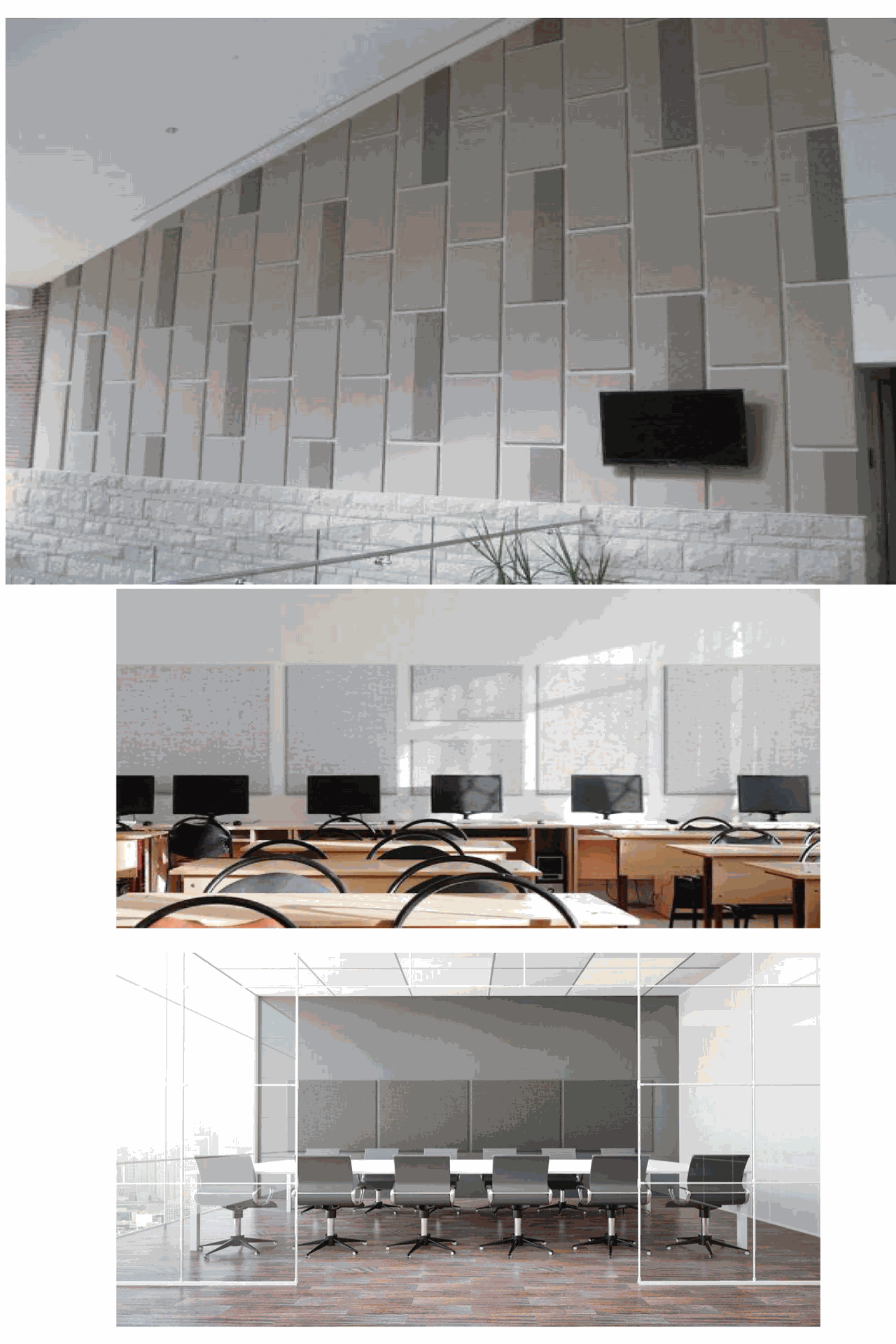

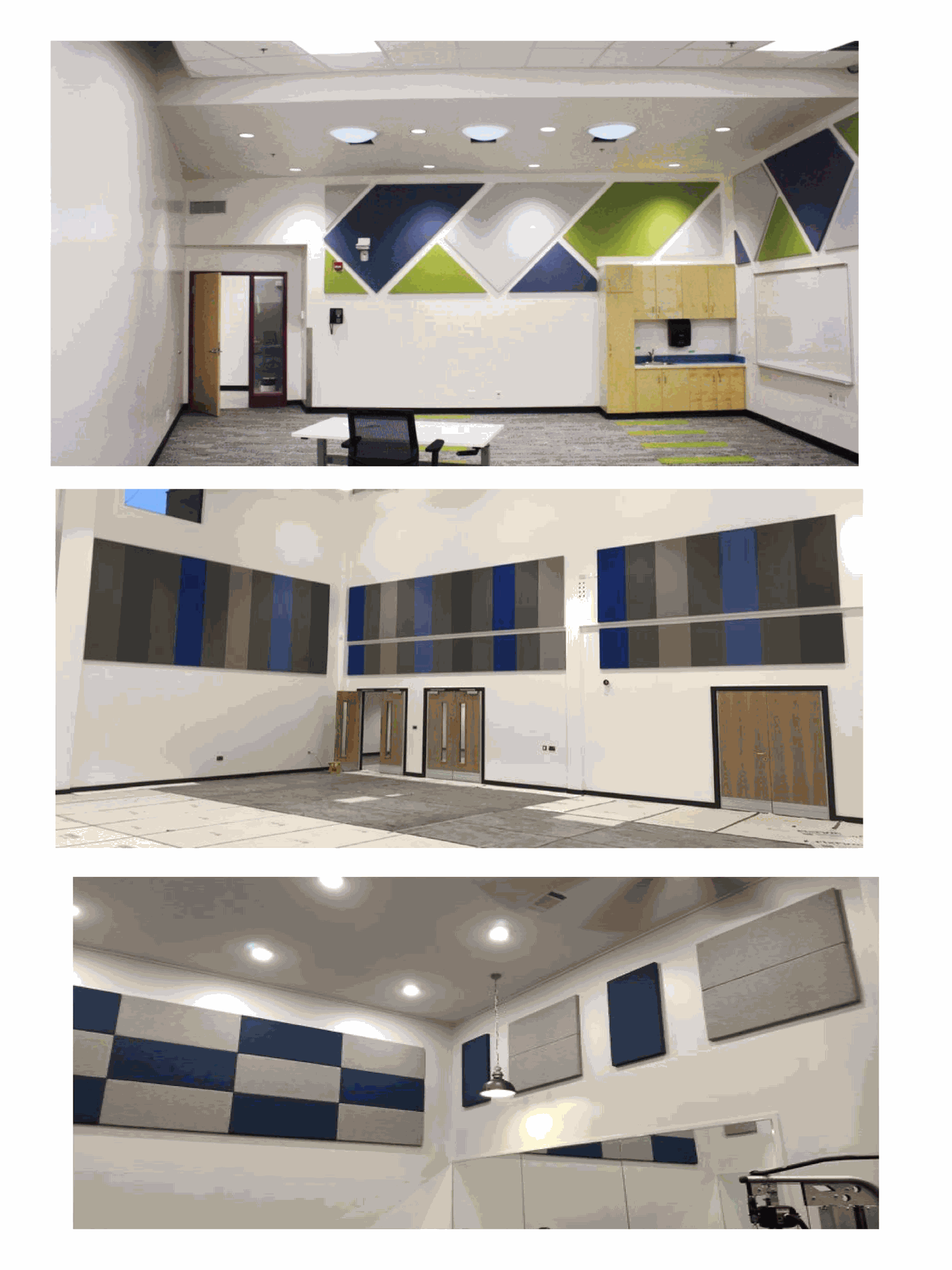

🎓 SchoolsPastel Classroom Wall

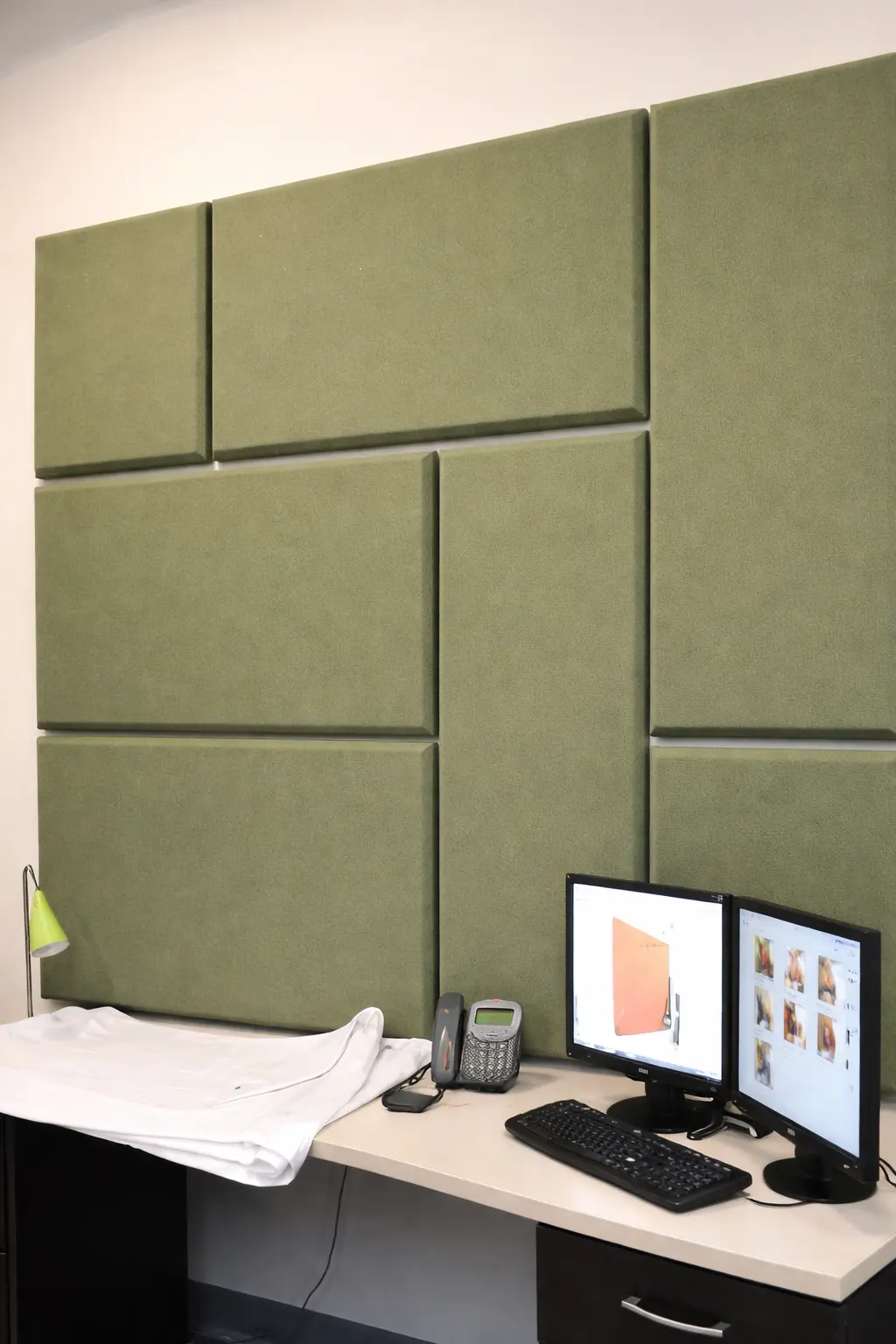

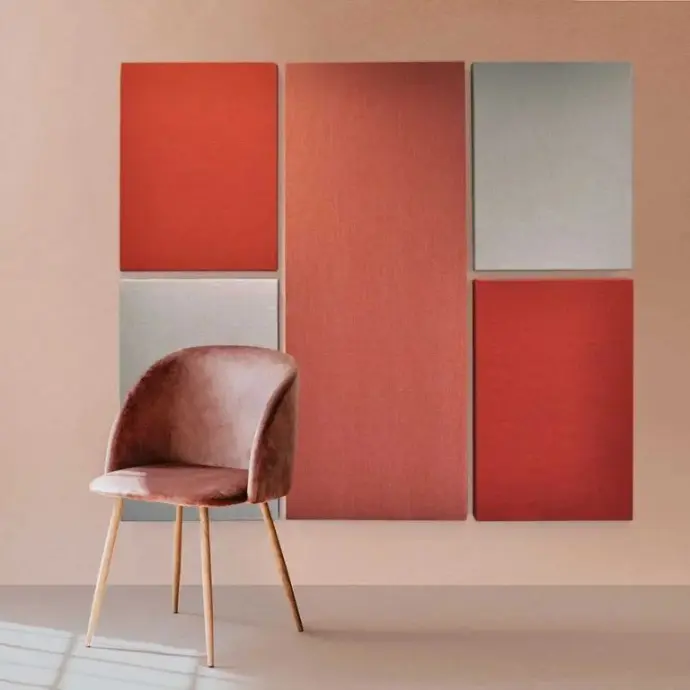

🏢 OfficesOffice Lounge Mix

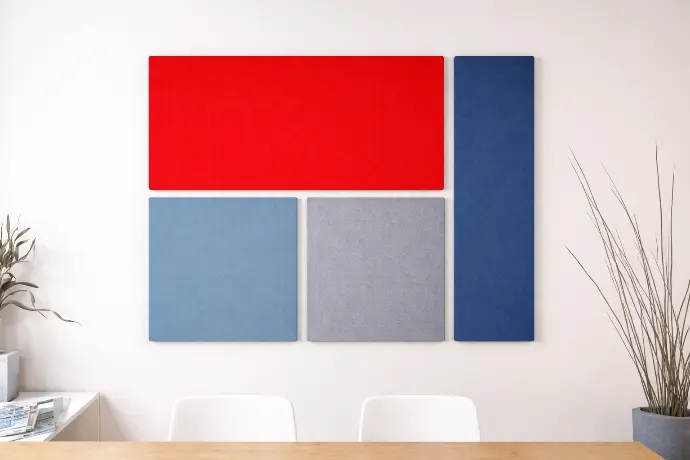

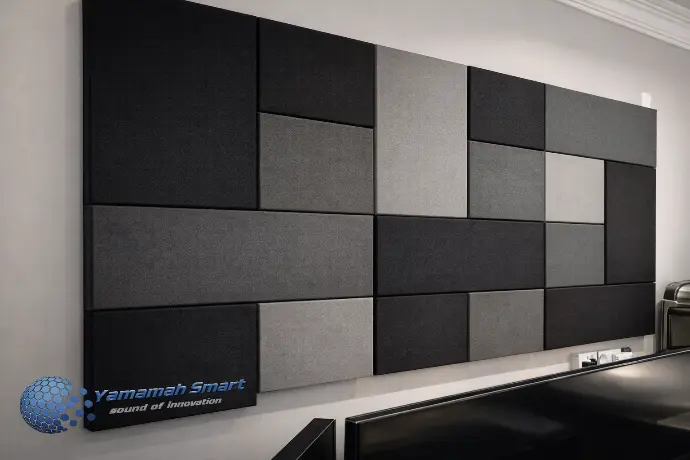

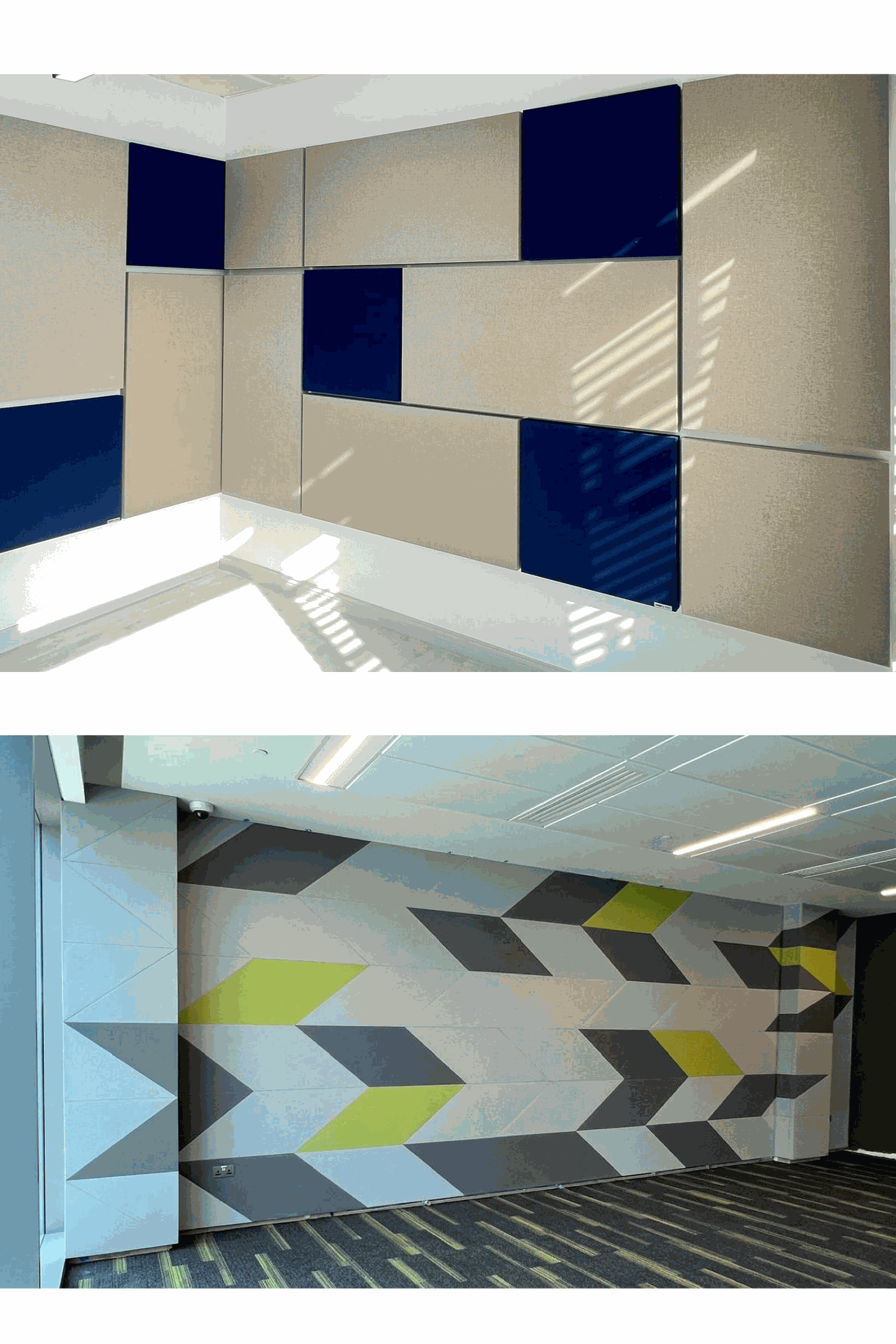

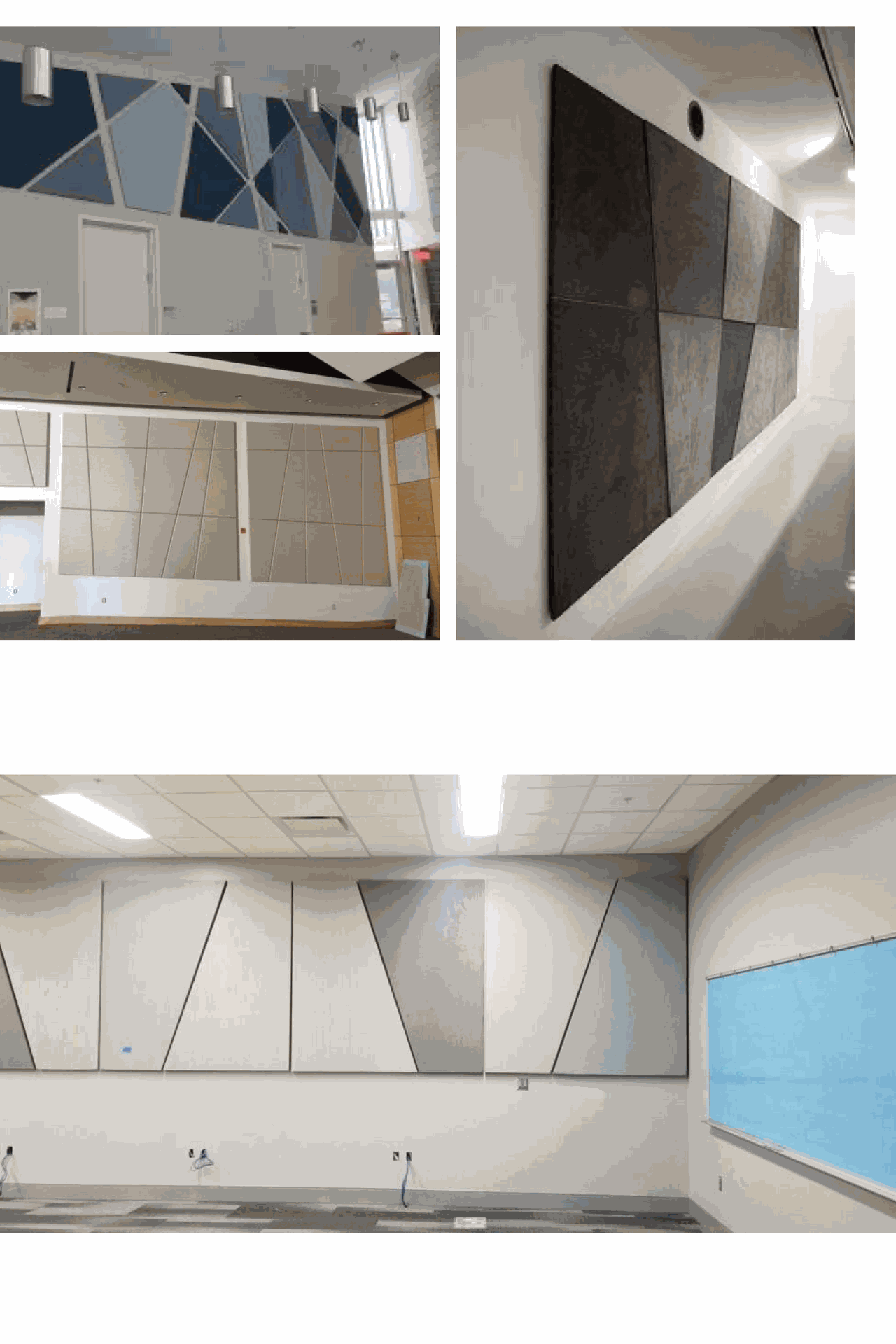

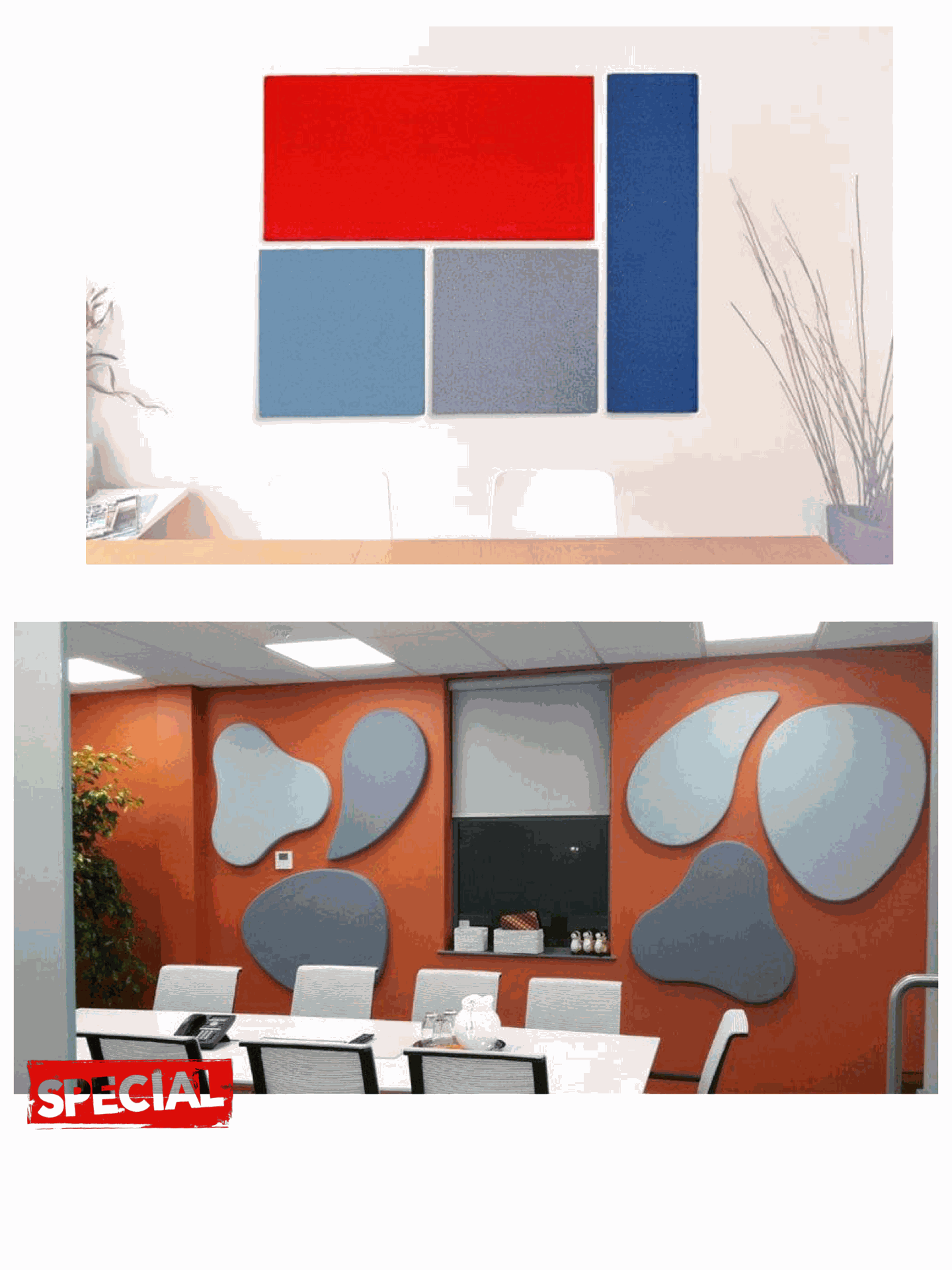

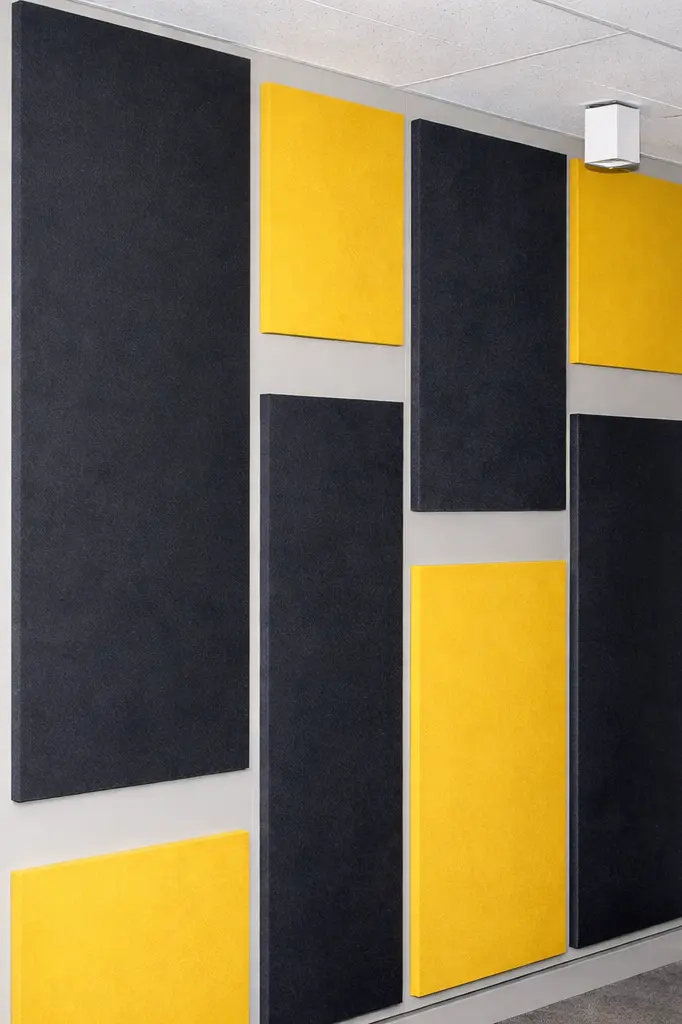

🏢 OfficesMondrian Meeting Room

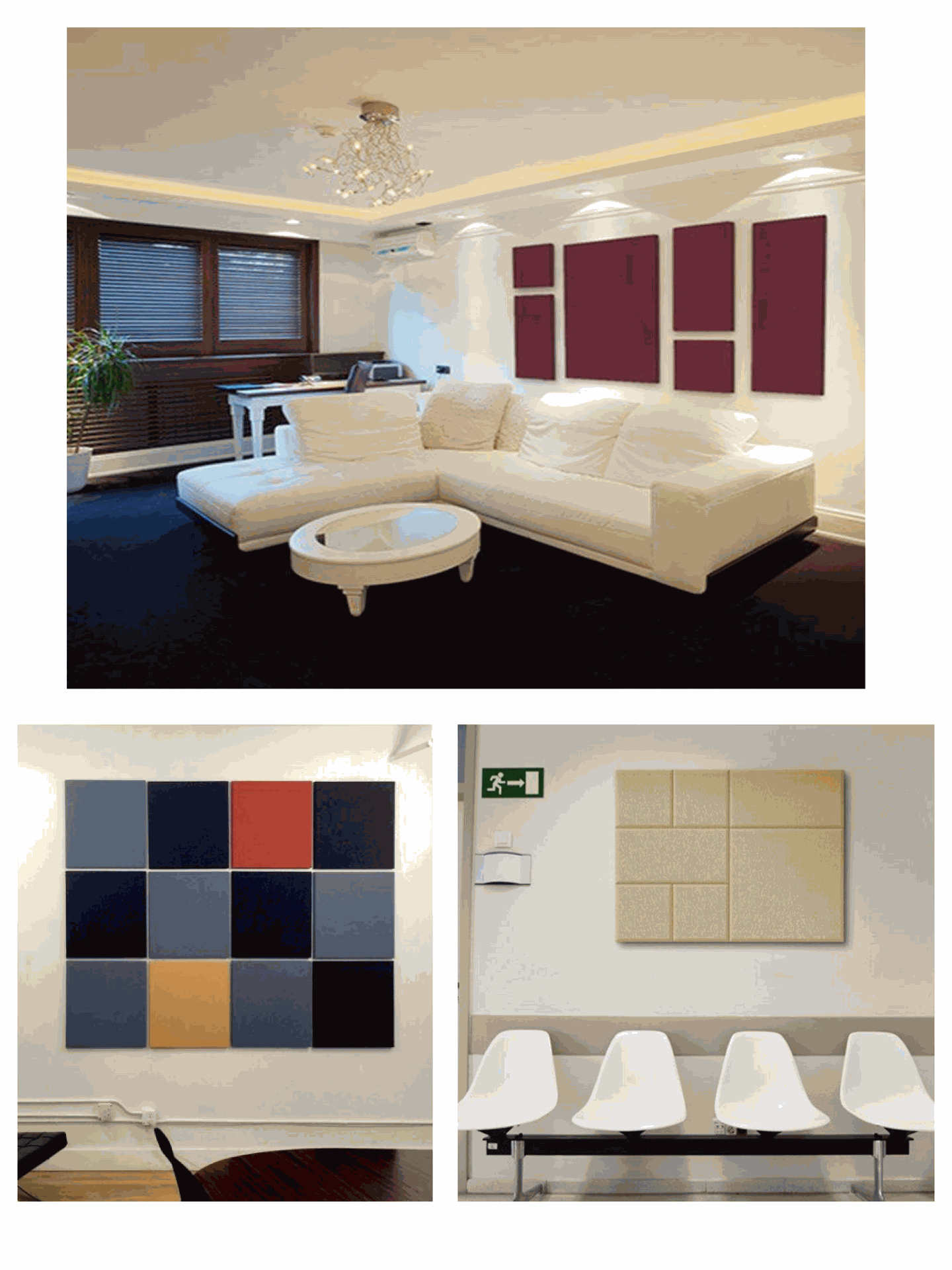

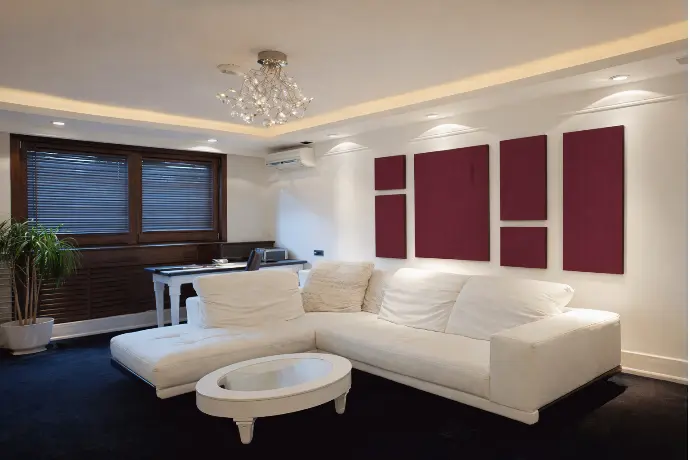

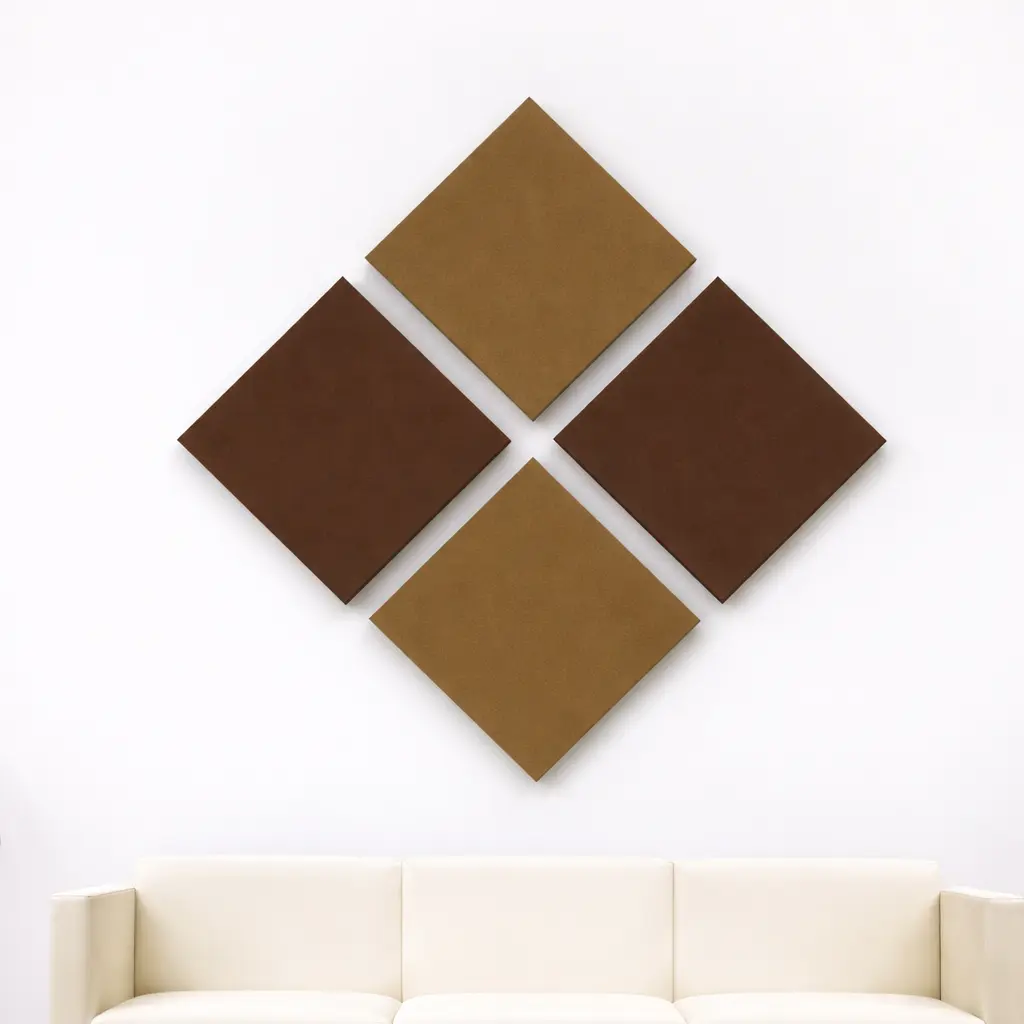

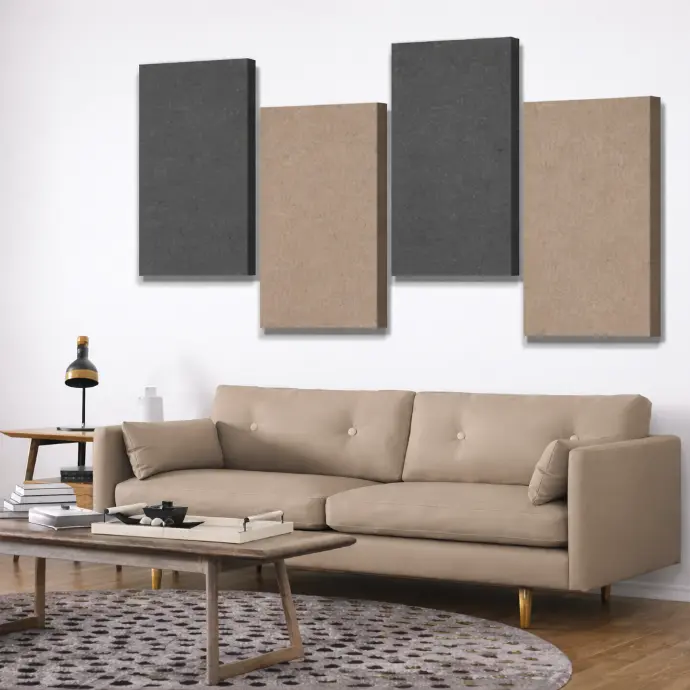

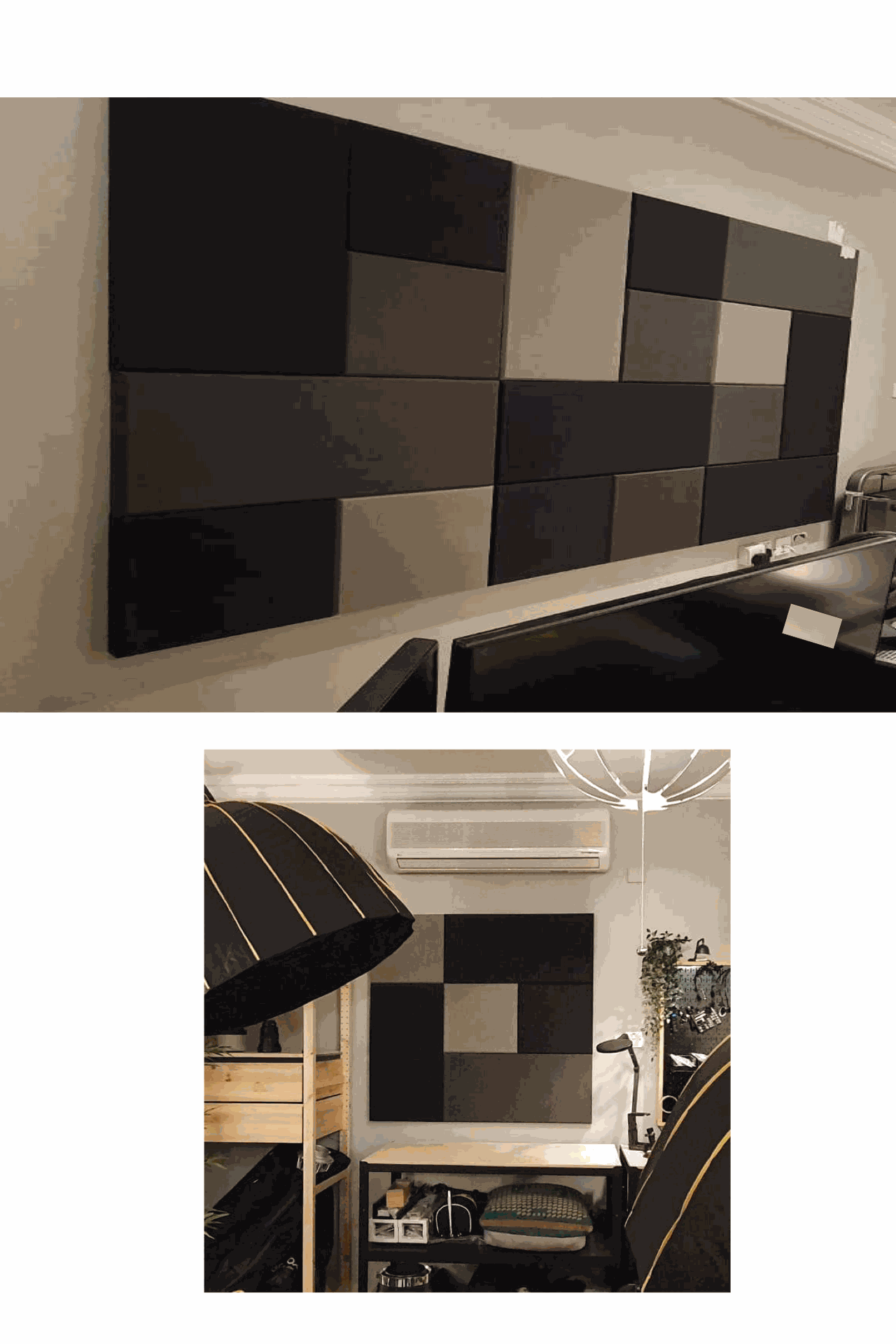

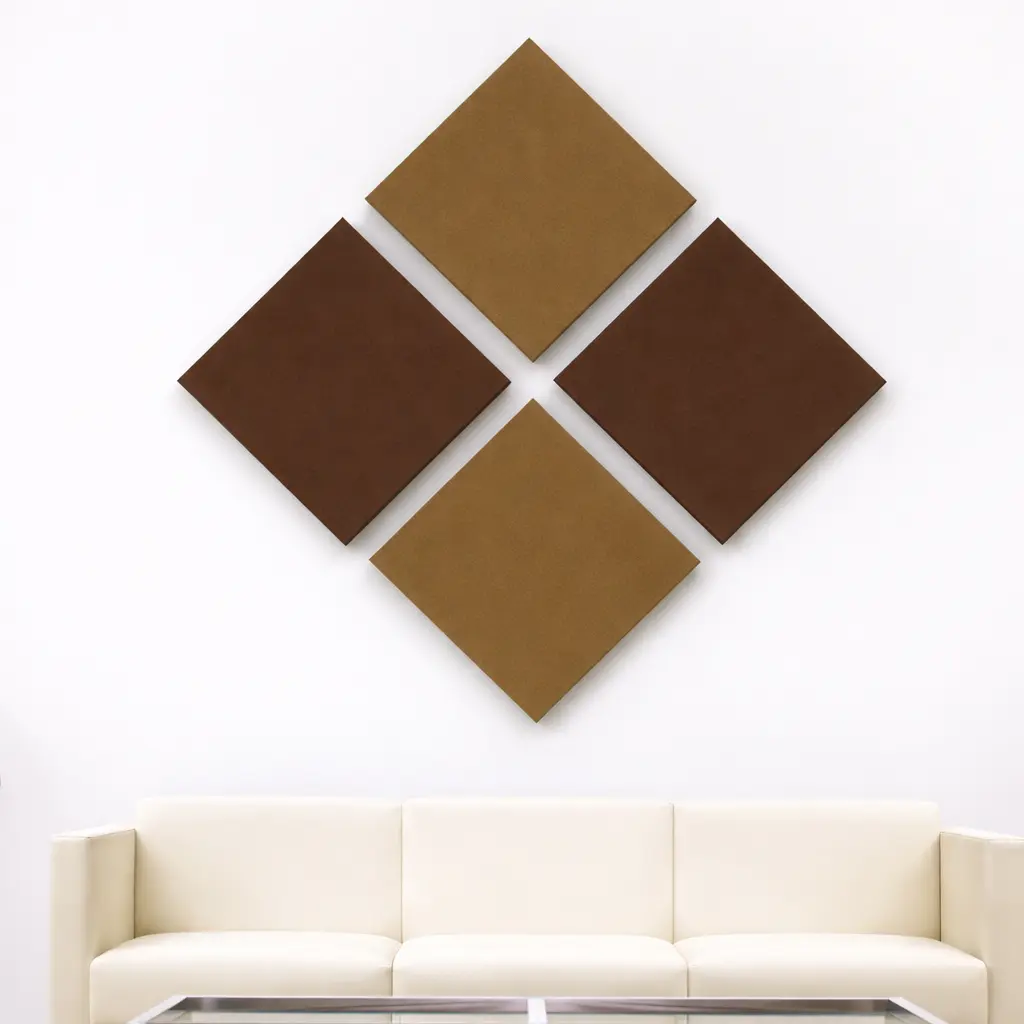

🛋️ Living RoomsDiamond Square Living

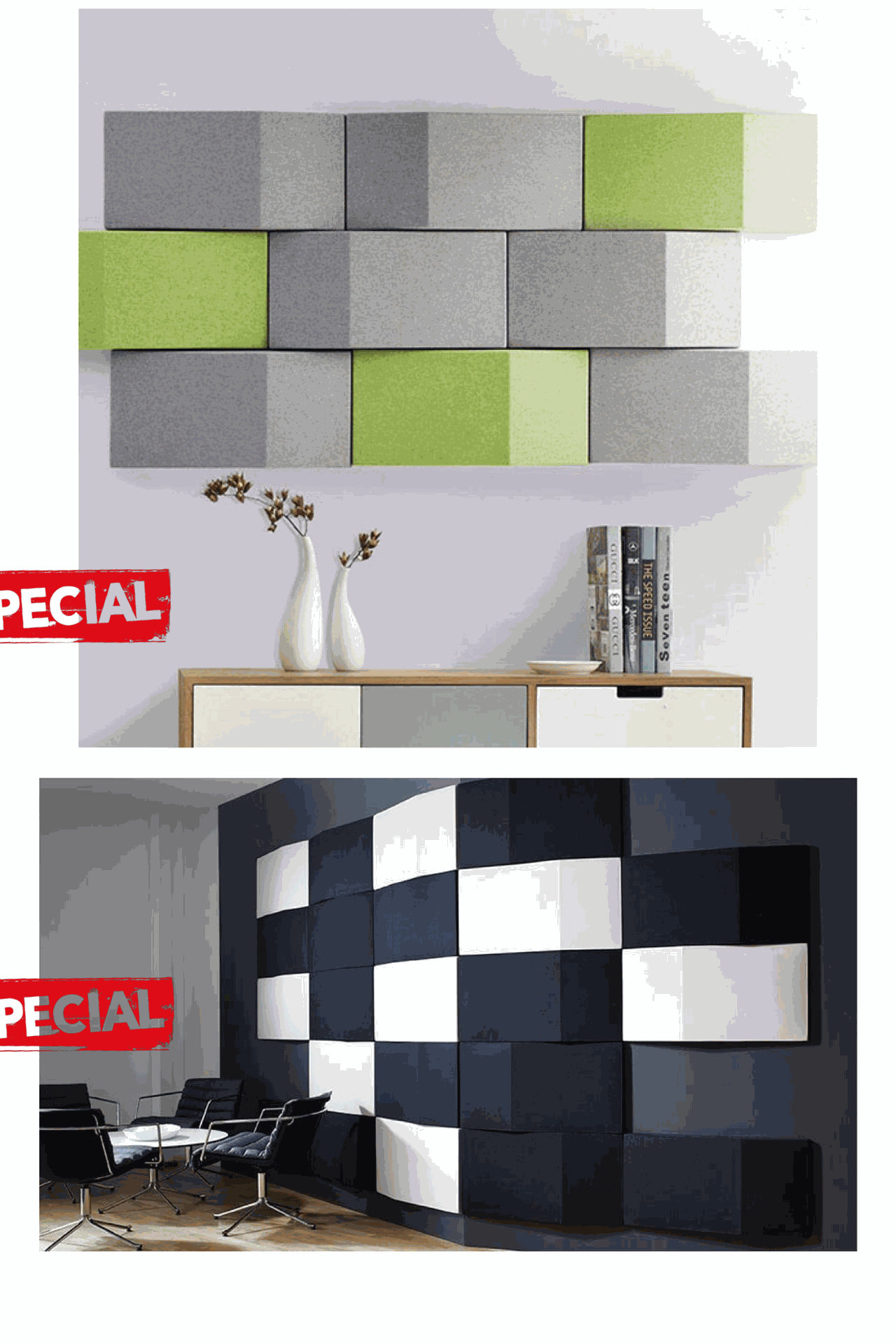

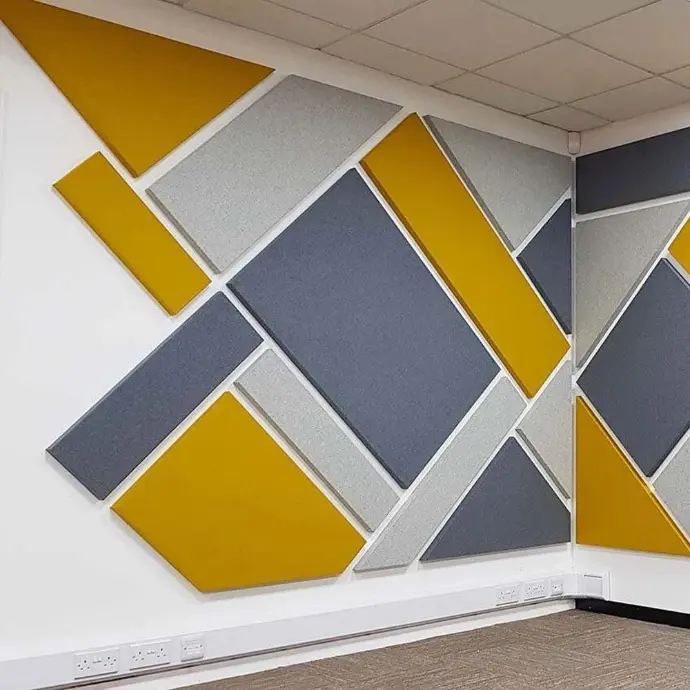

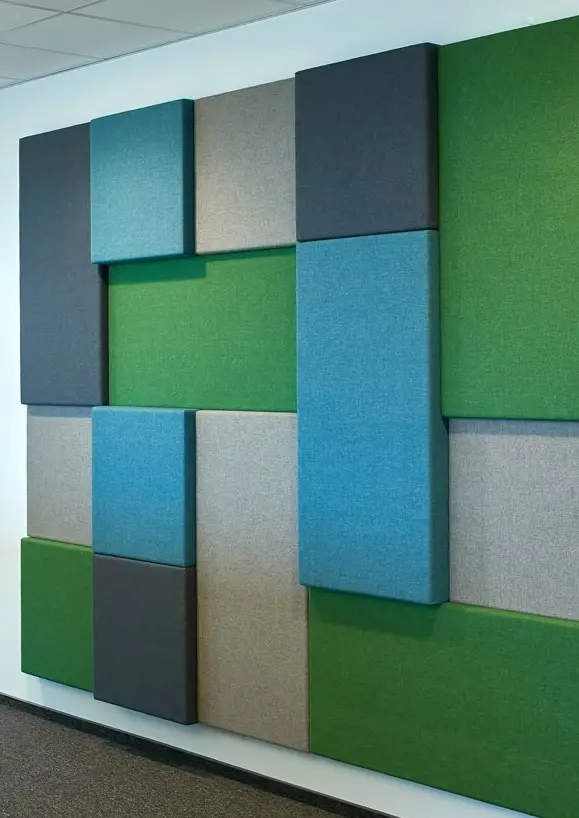

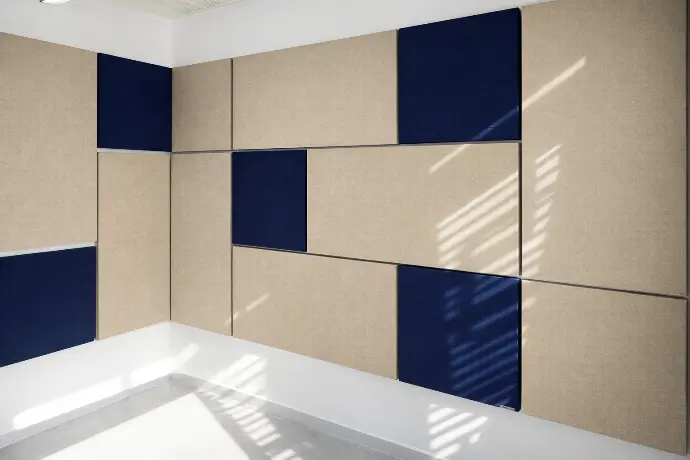

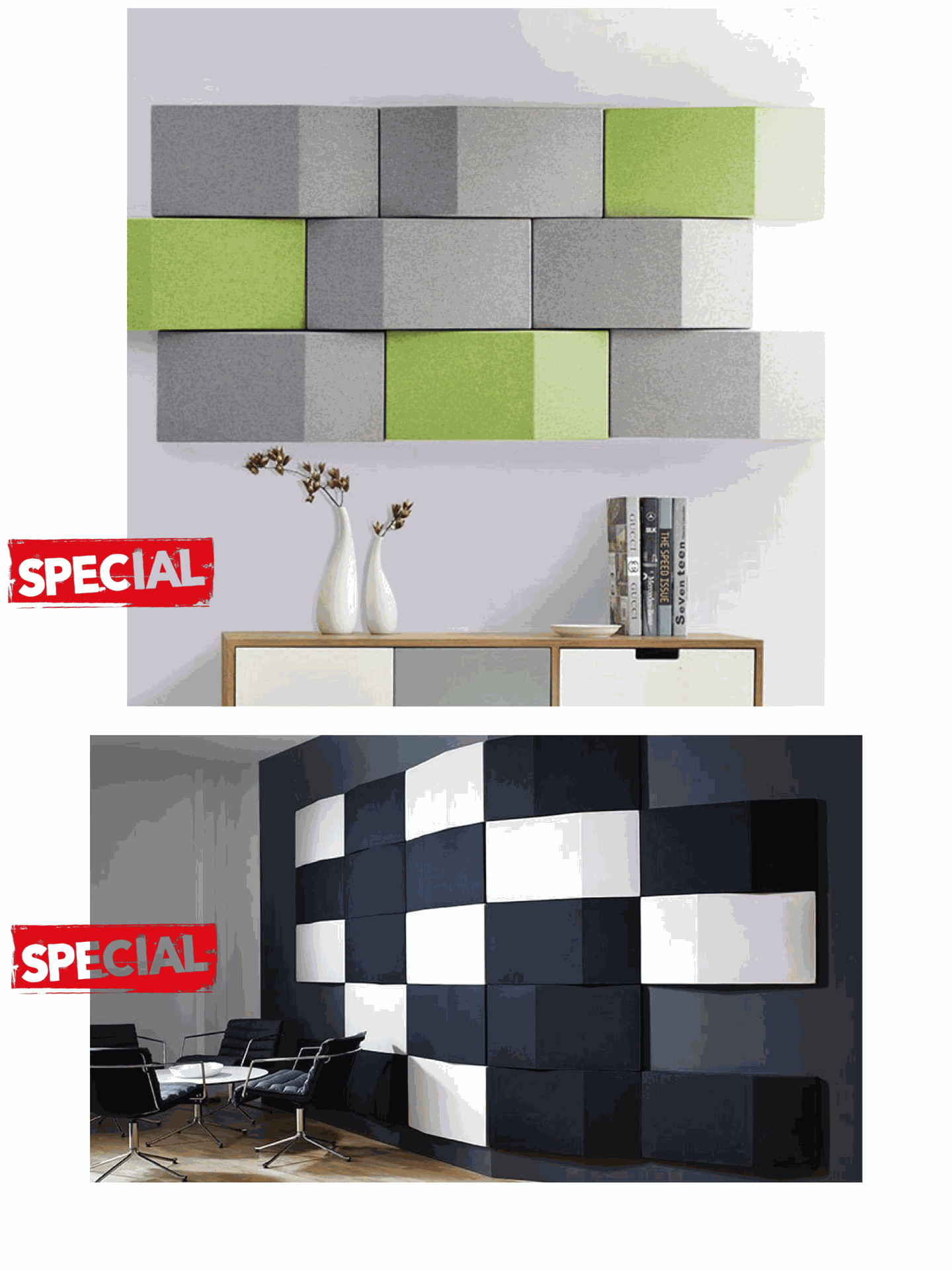

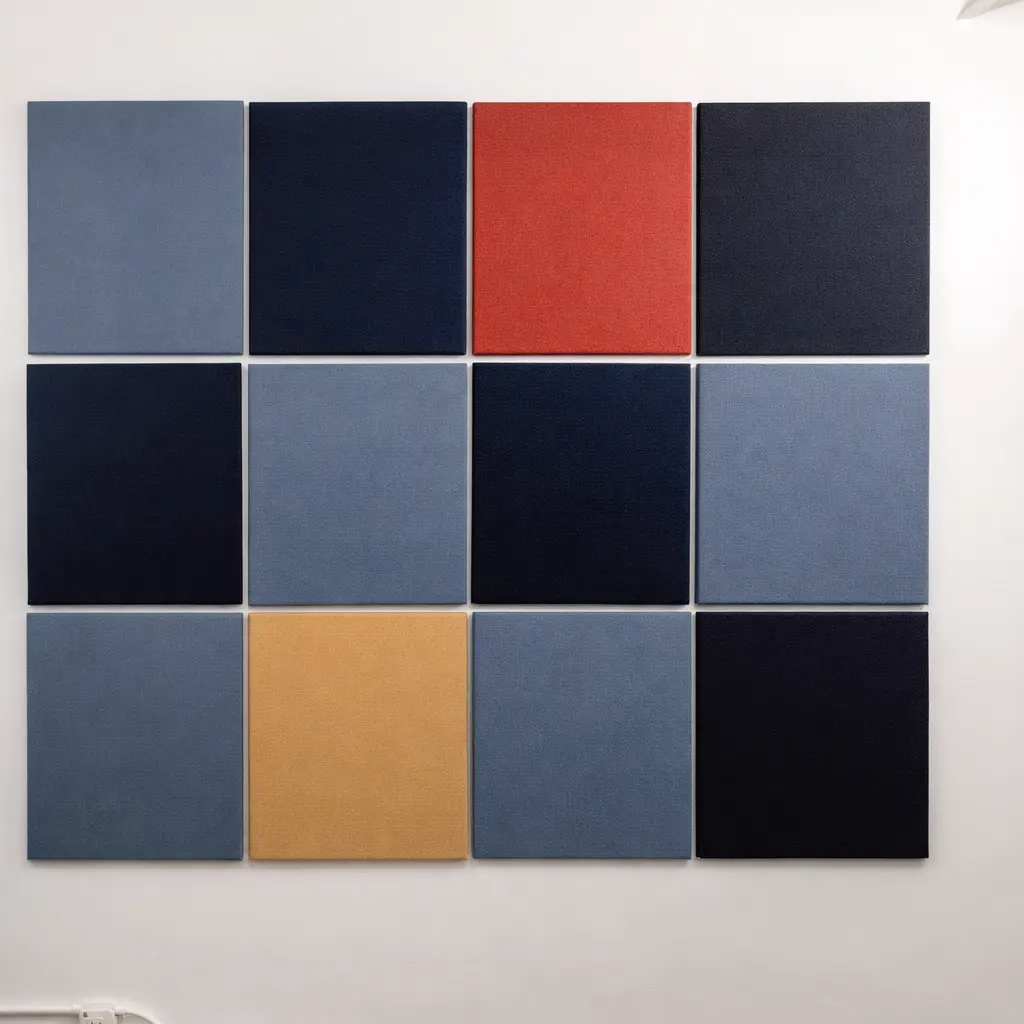

🏢 OfficesCheckerboard Office Wall

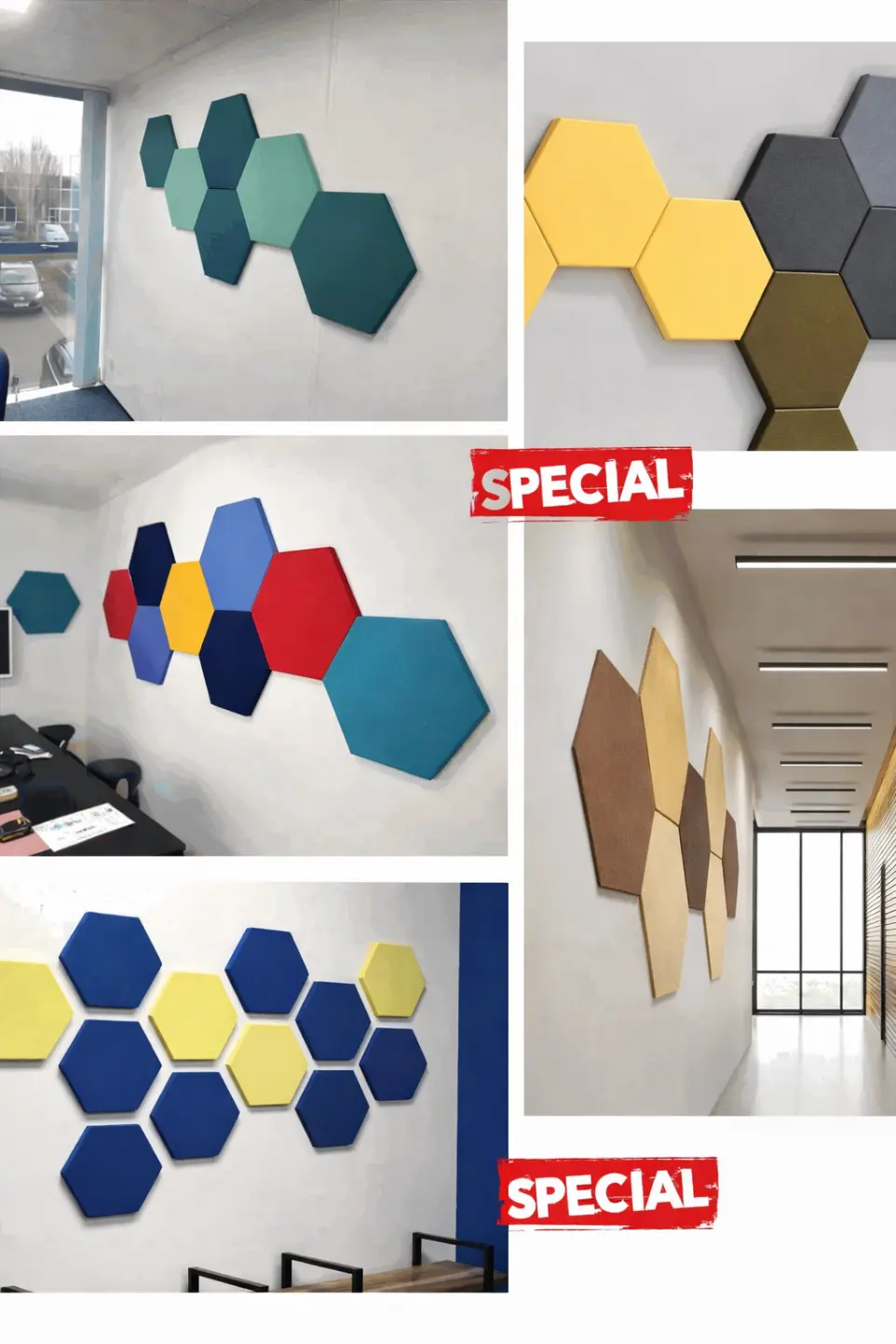

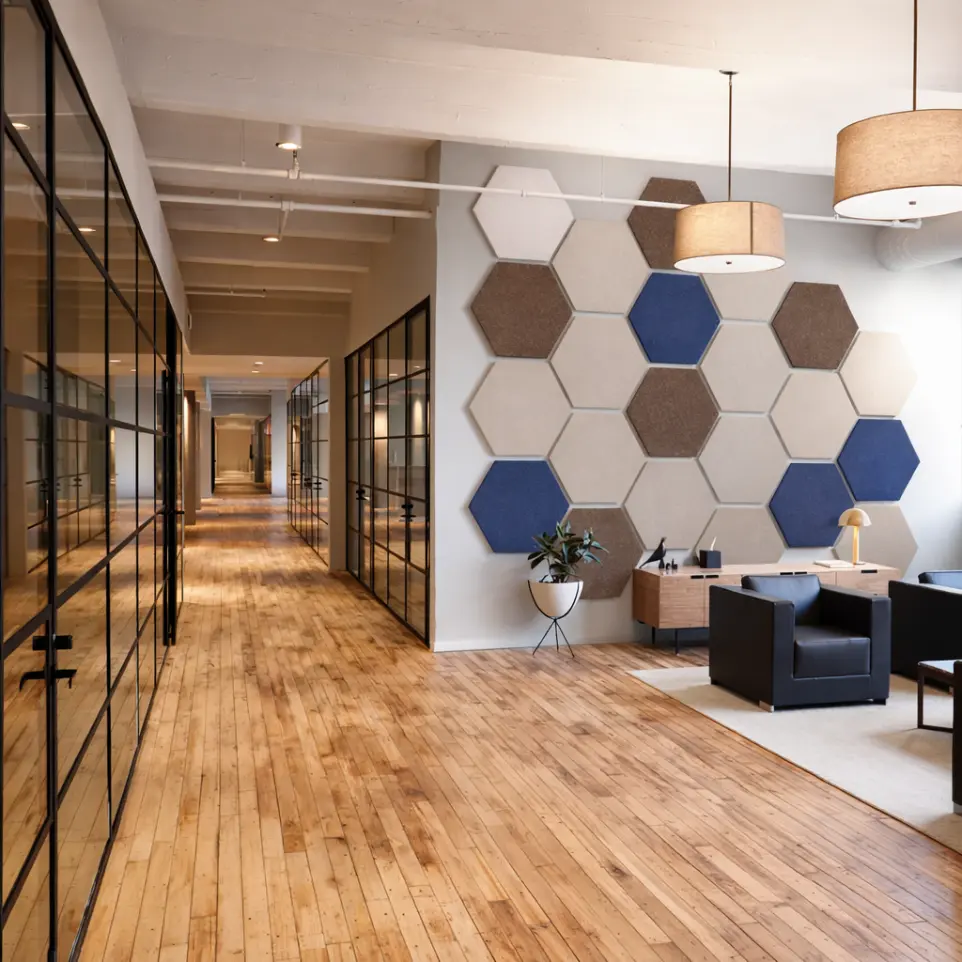

🏛️ ReceptionHoneycomb Reception

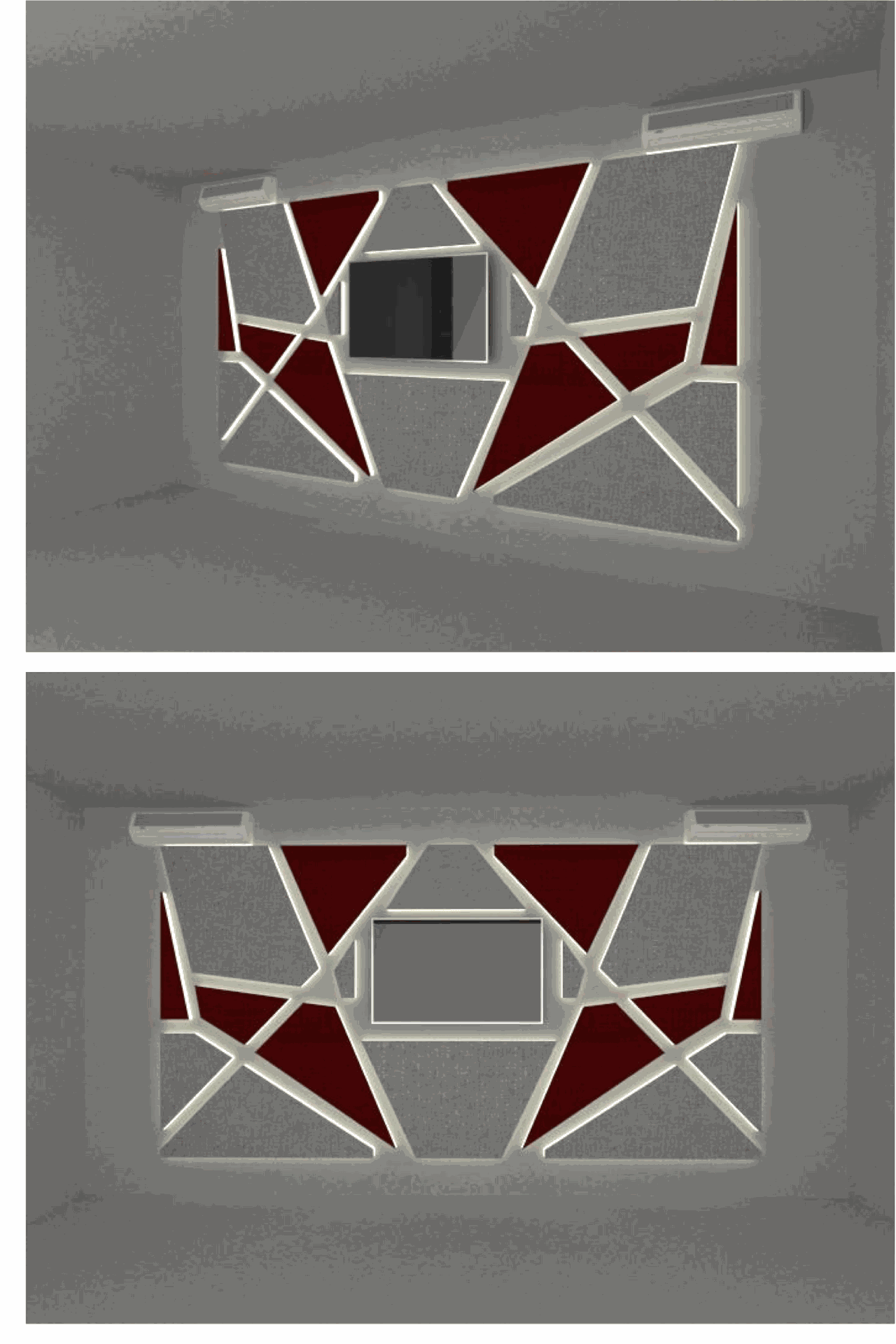

🛋️ Living RoomsTriangle Geometric Wall

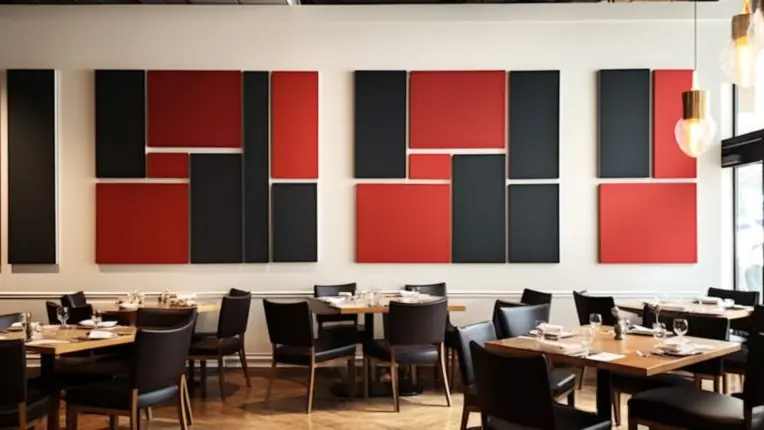

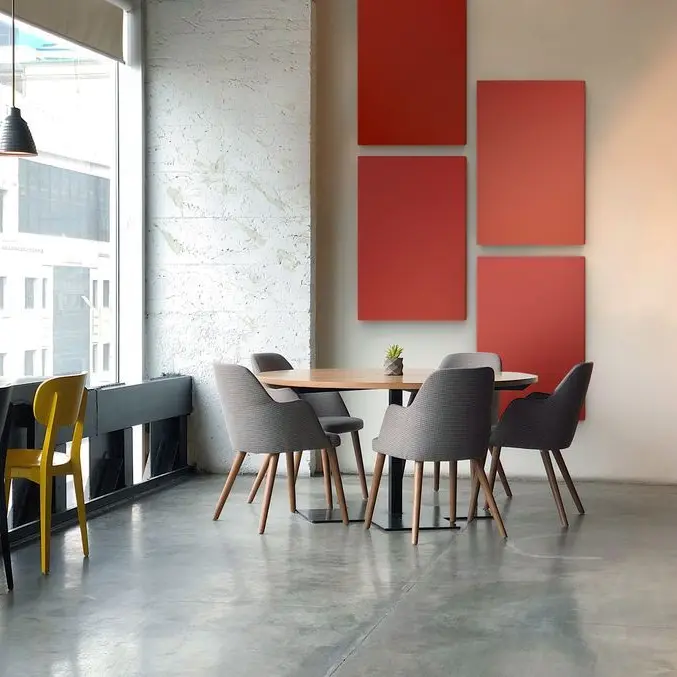

🍽️ RestaurantsFeature Wall Restaurant

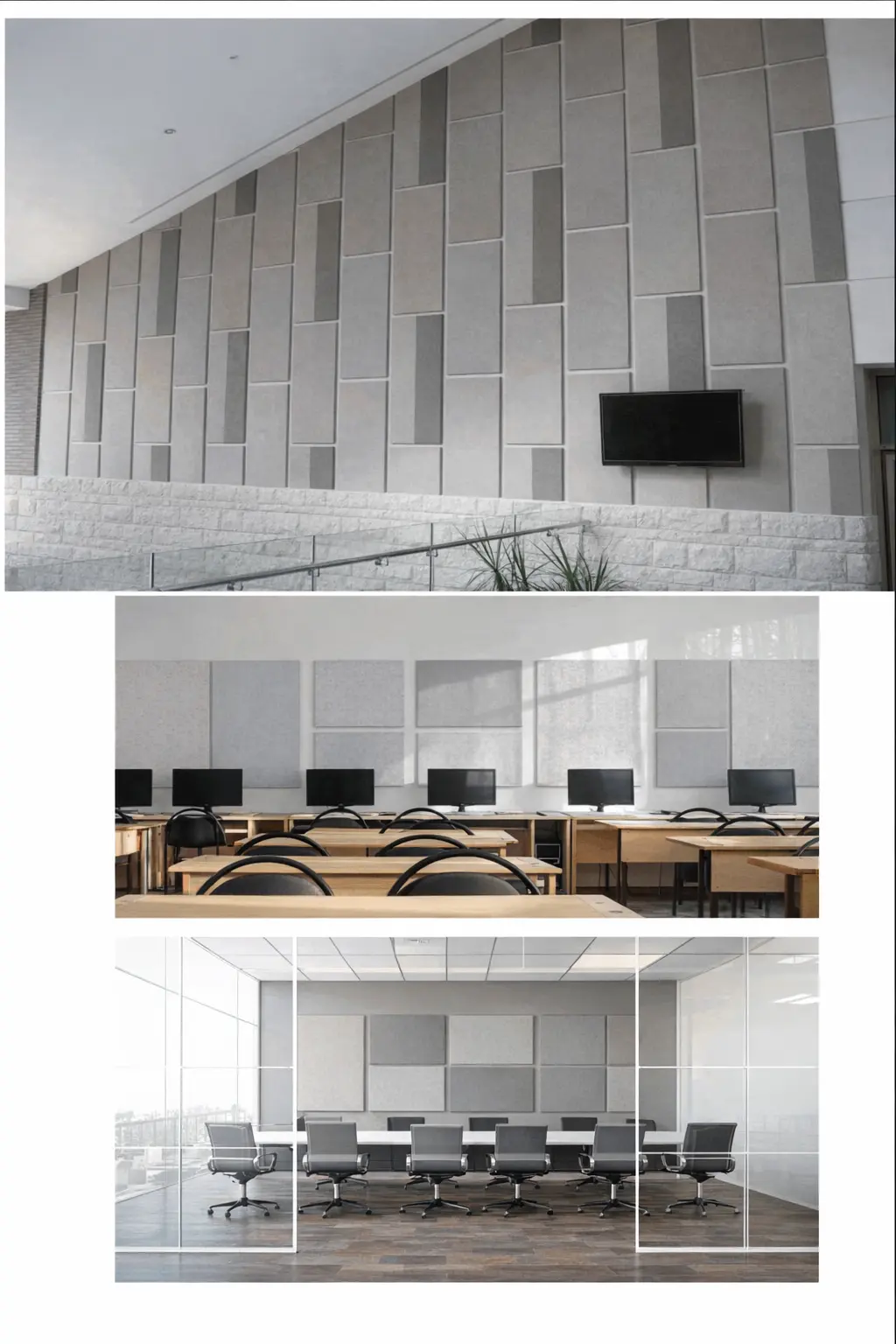

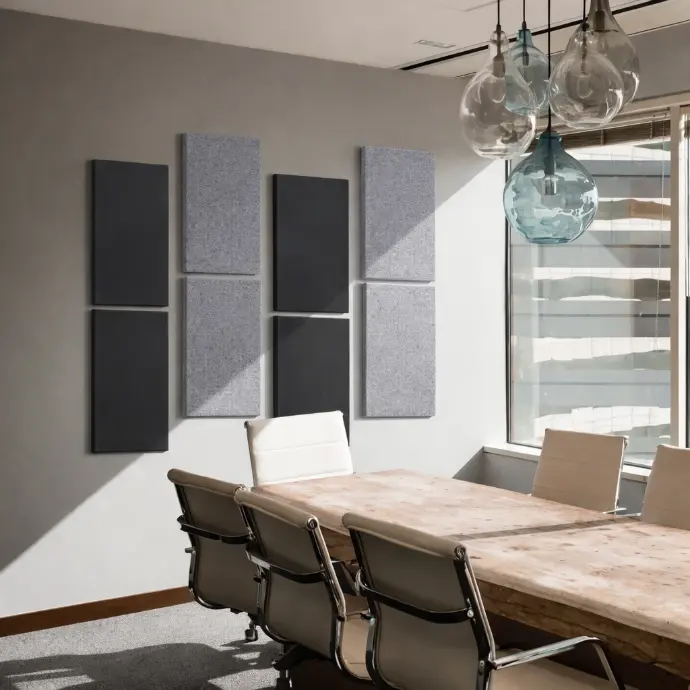

🏢 OfficesPremium Meeting Room
🎙️ StudiosProfessional Recording Studio
🎓 SchoolsMulti-Color Classroom
🍽️ RestaurantsRed Mondrian Restaurant
🎬 CinemaLuxury Home Cinema
🏛️ ReceptionHexagon Reception Lobby
🏢 OfficesAsymmetric Composition
🏢 OfficesVertical Strip Wall
🏛️ ReceptionMulti-Tone Honeycomb
🏢 OfficesColor Block Composition
🏢 OfficesExecutive Suite
🏠 Home OfficeModern Home Office
🛋️ Living RoomsWarm Burgundy Living Room
🏢 OfficesGeometric Lounge
🏢 OfficesModern Open-Plan Office
🏢 OfficesPremium Beige Meeting Room
🍽️ RestaurantsMediterranean Restaurant
🏢 OfficesBoardroom Mondrian Wall
🛋️ Living RoomsVertical Strip Living Room
🛋️ Living RoomsDiamond Pattern Living
🏢 OfficesSquare Panels Meeting Room
🍽️ RestaurantsRed Vertical Cafe
🏛️ ReceptionBeige Vertical Reception
🏛️ ReceptionCream Vertical Reception
🏢 OfficesRed Blue Grey Meeting Room
🎓 SchoolsBlue-Grey Classroom
🏛️ ReceptionGrey Cream Reception
🍽️ RestaurantsRestaurant with Banquette
🏠 Home OfficeHome Office Square Panels
🏢 OfficesIndustrial Black-Yellow
🎙️ StudiosDark Mondrian Studio Booth
🎬 CinemaRed Panel Cinema Room
🎙️ StudiosIndustrial Studio Wall
🏥 HealthcareGreen Clinic Walls
🏛️ ReceptionHexagon Hallway Lobby
🏛️ ReceptionMulti-Color Hallway
🏢 OfficesVertical Blue-Tone Stripe Wall
🏢 OfficesNavy and Cream Checkerboard
🏛️ ReceptionMondrian Multi-Color Reception
TECHNICAL DOWNLOADS
Technical Data & Downloads
Each technical document is supplied to validated project enquiries. Send a quick request with your project name and we will email the relevant files.
Product Data Sheet
Acoustic Test Report
Fire Rating Certificate
Fabric Color Chart
Physical Fabric Sample
Note: NRC up to 1.00 depending on thickness, mounting method, and certified build-up. Fire performance and acoustic ratings are validated per project from the latest manufacturer test reports.
RELATED PRODUCTS
Explore the Full Acoustic Range
FAQ
Frequently Asked Questions
What are fabric acoustic panels used for?+
Fabric acoustic panels are designed to absorb sound reflections inside a room. They reduce echo, control reverberation, and improve speech clarity in offices, meeting rooms, mosques, studios, classrooms, restaurants, cinemas, hotels, and commercial interiors across Saudi Arabia.
Do fabric acoustic panels block sound?+
No — fabric panels alone do not fully block sound transmission between rooms. They absorb sound inside the room (acoustic treatment). To block sound between spaces, combine fabric panels with MLV, acoustic insulation, wall build-ups, acoustic sealing, and acoustic doors as part of a full soundproofing system.
What thickness should I choose?+
25 mm for decorative wall treatment; 50 mm for offices, meeting rooms, and classrooms (best balance); 50–75 mm for restaurants, mosques, training rooms; 75 mm for studios, podcast rooms, cinemas; 100 mm for high reverberation or premium acoustic control.
Are fabric acoustic panels suitable for meeting rooms?+
Yes — they are one of the best choices for meeting rooms. The recommended setup is 50 mm fabric panels on side and rear walls (first reflection points) with ceiling clouds above the meeting table to improve speech clarity for in-room and video conferences.
Can fabric acoustic panels be used in mosques?+
Yes — fabric panels (50–75 mm) are widely used in mosques to control reverberation, improve sermon clarity, and reduce echo in large prayer halls. We can match fabric colors to the interior design and provide custom shapes for feature wall treatments.
Can these panels be installed on ceilings?+
Yes — fabric panels can be installed as wall-mounted panels, ceiling-mounted panels, or suspended ceiling clouds. Ceiling installation is especially effective in rooms with high ceilings or where wall area is limited.
What is the difference between fabric panels and PET panels?+
Fabric panels offer a premium soft fabric finish with thicker 25–100 mm builds — best for premium acoustic absorption in offices, mosques, studios, and meeting rooms. PET panels offer a modern felt look with thinner 9/12 mm felt — great for design flexibility, CNC shapes, schools, and decorative installations.
How many acoustic panels do I need?+
Typical guidance: 20% surface coverage for basic improvement in soft rooms; 30% for most offices and meeting rooms; 40% or more for restaurants, studios, mosques, and rooms with hard surfaces. The actual count depends on room volume, surfaces, and reverberation target — send us your dimensions for a precise proposal.
Are custom sizes and colors available?+
Yes — beyond the 600 × 1200 mm standard size we manufacture custom rectangles, squares, hexagons, circles, and bespoke shapes. We offer 60+ fabric colors across Camira and equivalent acoustic fabric collections.
Can Yamamah supply and install the panels in Saudi Arabia?+
Yes — Yamamah Smart Acoustic Solutions handles site survey, supply, installation, and post-installation acoustic verification across the Kingdom of Saudi Arabia. We work with consultants, contractors, and direct project owners.
Can fabric panels be combined with MLV for better sound isolation?+
Yes — when sound transmission between rooms is also a concern, we combine fabric panels with MLV (Mass-Loaded Vinyl) sound barriers, acoustic insulation, gypsum wall build-ups, and acoustic sealing. This integrated approach treats both absorption and transmission in one system.
Are fire-rated fabric options available?+
Yes — Camira acoustic fabrics carry EN 13501-1 fire classifications (B-s1,d0 standard and higher on selected collections). Higher ratings are available on request with project-specific certification.
Need Help Choosing the Right Acoustic Fabric Panels?
Every room has different acoustic behavior. Yamamah Smart Acoustic Solutions can help you choose the right panel thickness, quantity, fabric color, installation method, and acoustic layout based on your project requirements.
