Button-FixType 1Flush
Yamamah Smart supplies and installs Button-Fix Type 1 Flush across Saudi Arabia — the slide-and-click connector that mounts acoustic panels, slatted walls and architectural cladding fully recessed with no visible fixings. UK-made nylon, 100 kg load per 4 fixes, fits any 18 mm+ panel.
What Is Button-Fix Type 1 Flush?

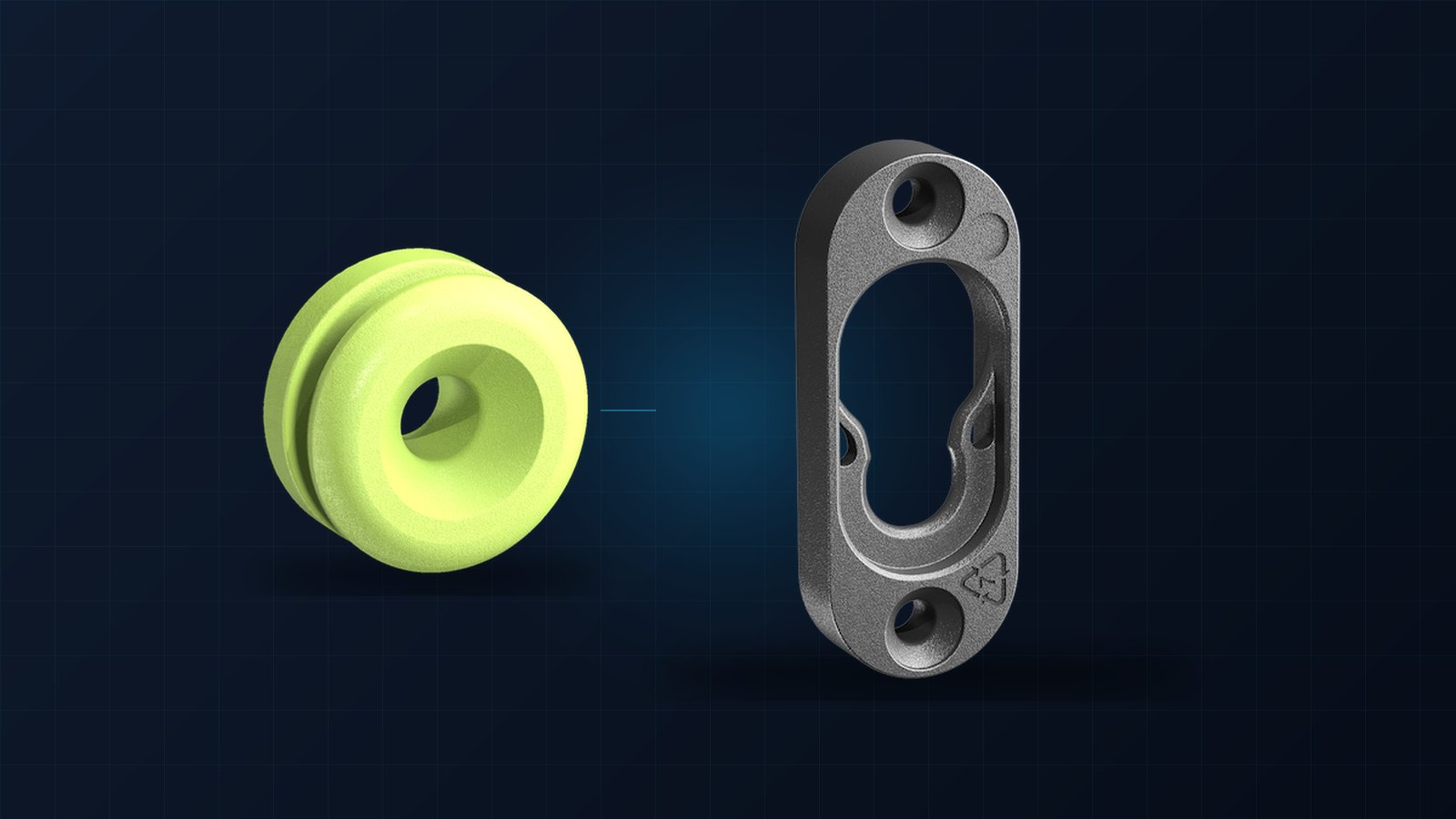

A British-engineered two-part connector system — a Fix (the recessed metal/nylon plate) and a Button (the lime-green nylon stud). The Fix sits flush inside the panel; the Button screws into the wall or frame. The panel slides on, clicks into place, and lifts off cleanly for service — no visible screws, no rigid bridge between panel and wall, no waiting for adhesive to cure.
Rebate the Panel
Drill or CNC a simple oval rebate (22 × 56 × 8 mm) in the panel back; press in the Fix flush.
Mount the Buttons
Screw the lime-green Buttons to the wall on a level line — 4 per panel typical, max 600 mm apart.
Slide & Click
Panel slides onto the buttons and clicks in place. Lift off in seconds for service — no tools.
Full Button-Fix Range · From Stock
Eight variants cover every application — pick the type that matches your panel thickness, load and access requirements. Type 1 Flush is our most-used variant for acoustic panels.

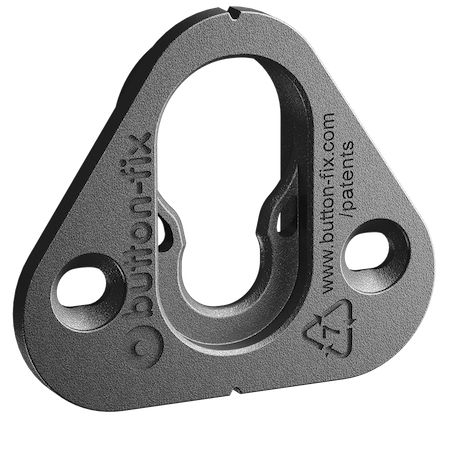

Type 1
Connects panels face-to-face with 3 mm or 8 mm gap. Drop-down or sideways engagement. Ideal for acoustic, wall and ceiling panels.

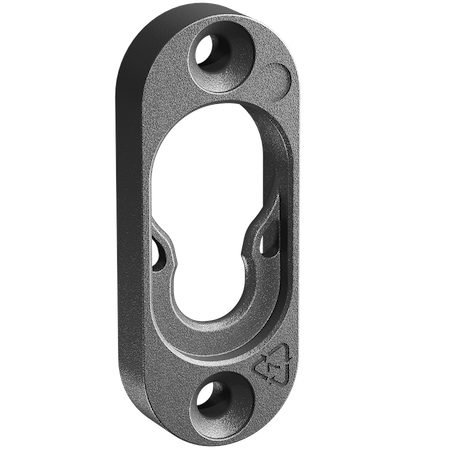

Type 1 FlushOUR PICK
Connects panels face-to-face with no gap. Fully recessed for a clean architectural finish. Yamamah Smart's most-used variant for acoustic panels.

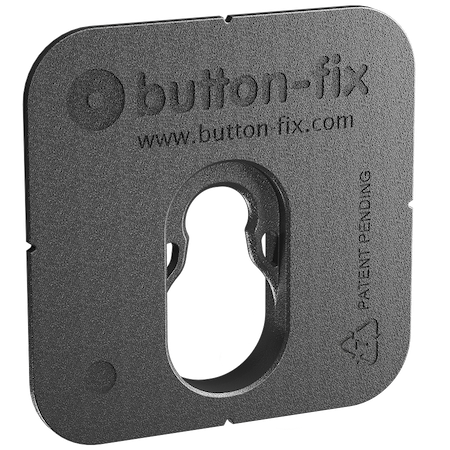

Type 1 Bonded
Adhesive bonding to thin materials — glass, stone, metal, solid surface. No screws required. Ideal for signage and exhibitions.

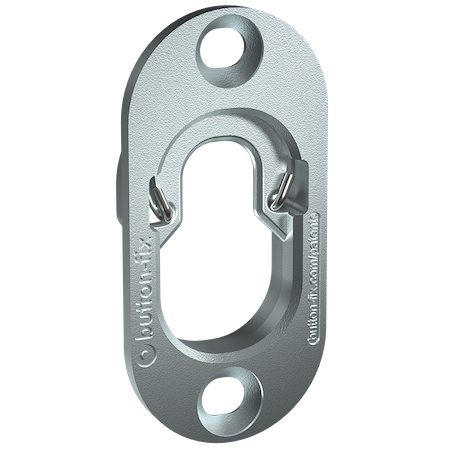

Type 1 Metal
ZL2 zinc-alloy fix with 316 stainless spring. Highest load capacity. For fire-retardant panels, marine, transport interiors and vibration-prone environments.

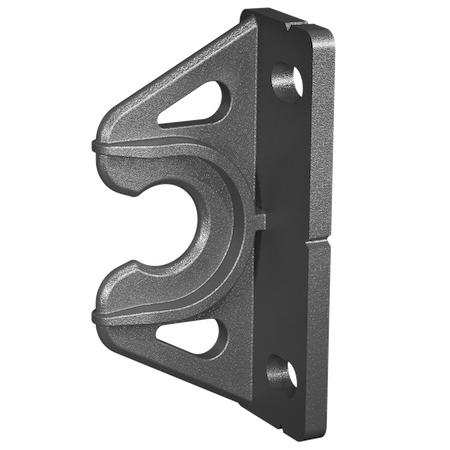

Type 2
90° connection to frame, push & click engagement. For removable service-access panels (bath panels, IPS ducts). Wall-only — not for ceilings.

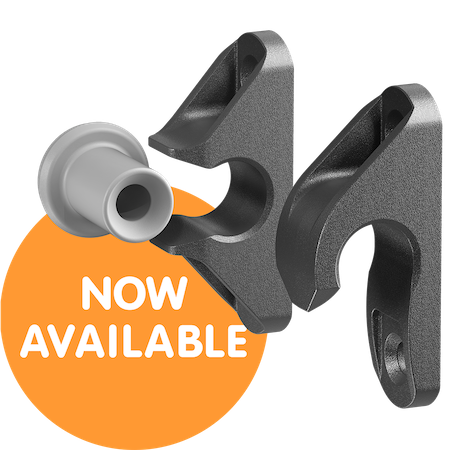

Type 2 Compact
Compact depth — mounts on a 18 mm panel edge. Push & click or drop-down. For washroom IPS panels and shallow service ducts.

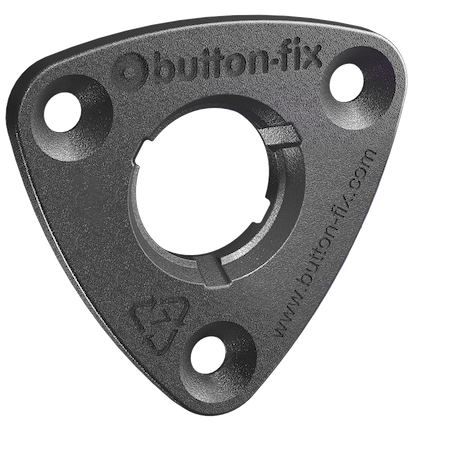

Type 3
Push-on / pull-off engagement (no slide). For panels with no clearance around them (end-of-run or tight corners).

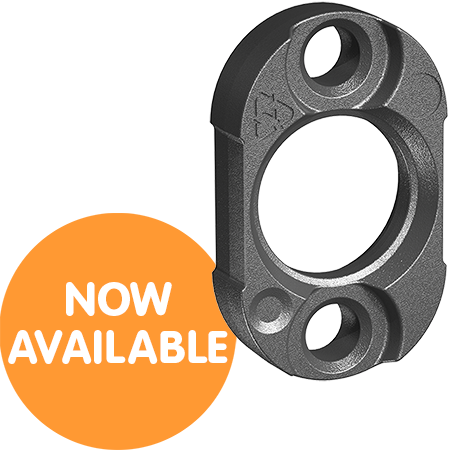

Type 3 Flush
Recessed push-on / pull-off — oval form for fully-recessed installations. Panel-to-panel contact or surface-mounting on narrow structures.
Four Ways to Install Type 1 Flush
Choose the method that suits your panel thickness and removability needs. All diagrams from the official Button-Fix Ltd datasheet.

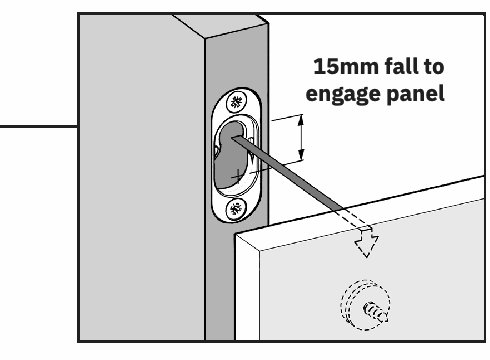

Edge-Rebated
Fix rebated into the edge of a 28 mm+ panel. 22 × 56 × 8 mm oval rebate. 15 mm fall to engage.

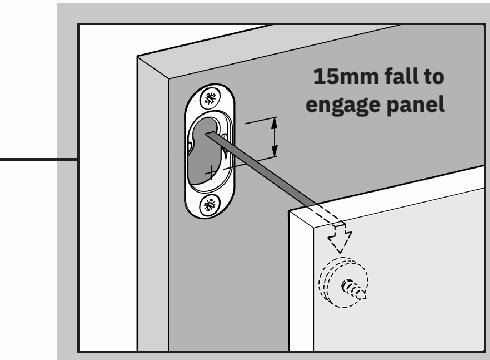

Face-Rebated
Fix rebated into the face of an 18 mm+ panel. Same oval rebate. Horizontal or vertical orientation.

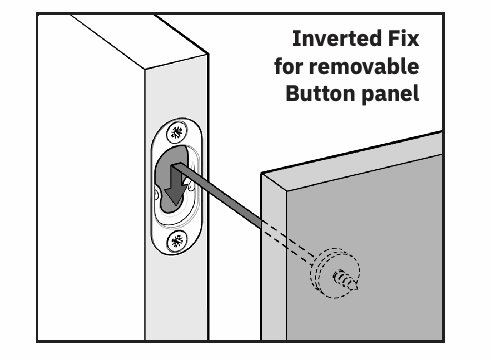

Inverted Fix
Same Fix installed inverted — for panels that need to be removable from the bottom up.

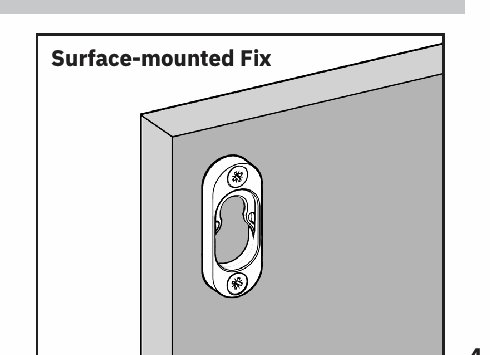

Surface-Mounted
No rebate. 8 mm gap between panels. Fastest install when surface clearance is acceptable.
Why Use Type 1 Flush?
When panel-to-panel contact is required — for furniture, reception counters, kitchen cabinets or acoustic cladding — Type 1 Flush is the connector to choose.
It sits in a simple oval rebate (22 × 56 × 8 mm) and recesses fully into the face of an 18 mm+ panel or the edge of a 28 mm+ panel. Narrow profile makes it equally suited to slatted walls and surface-mounting onto firring strips above ceiling panels.
Yamamah Smart stocks both the standard lime-green and orange Buttons in Riyadh, and installs across the Kingdom.

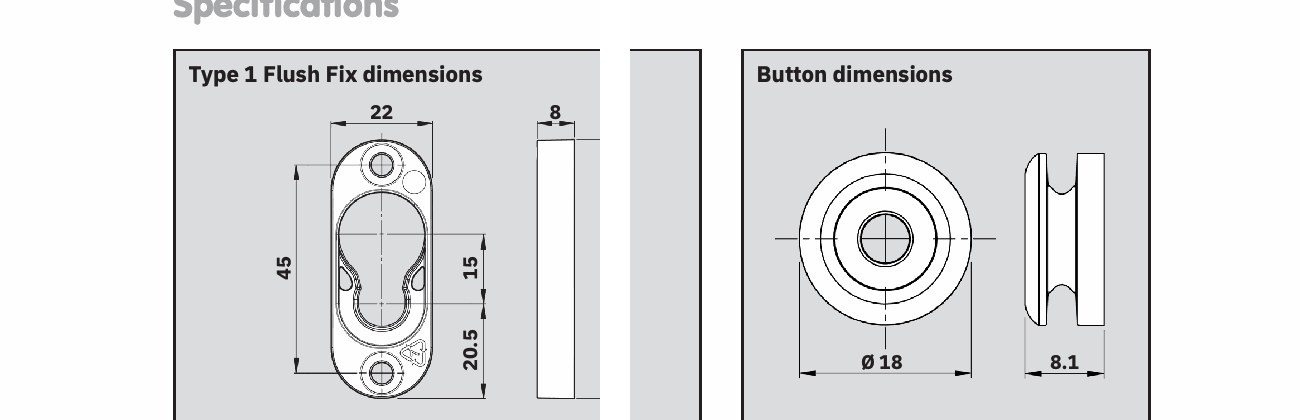

Specifications
All technical data sourced from the official Button-Fix Ltd (UK) Type 1 Flush datasheet (12/2025).
Features
- MaterialNylon PA6, 30% glass-filled (Button & Fix)
- ConnectsFace-to-face (no gap when fully recessed)
- EngagementSlide & click — drop-down or sideways
- RecessedSurface-mounted or fully-recessed
- Minimum panel thickness18 mm when fully recessed
- Country of originMade in the United Kingdom
Guide Loads
Wall panel with 4 × Fixes: 100 kg
Ceiling panel with 4 × Fixes: 100 kg
Advice on panel loads is given with the proviso that the screws and substrate are properly matched, and all other instructions complied with. For critical applications it is essential to perform your own tests.

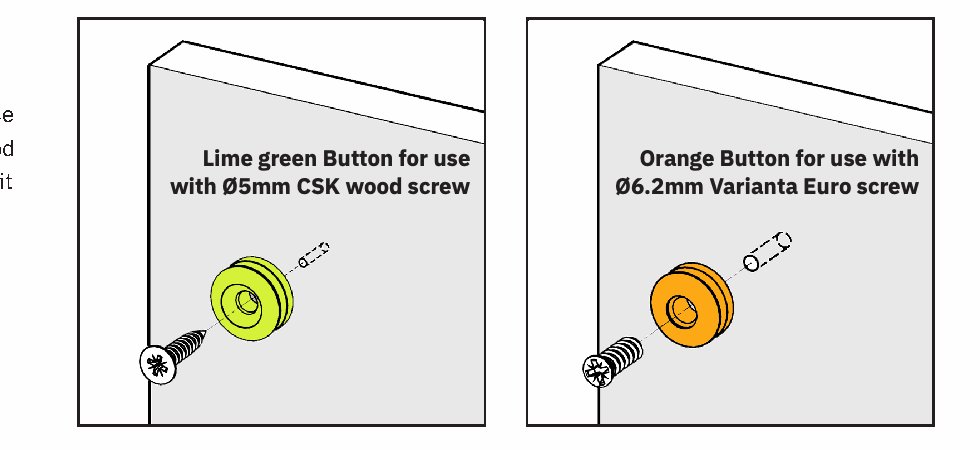

Button Options
Two screw-type Buttons are available — choose based on your panel material and fixing screw. Yamamah Smart stocks both colours in Riyadh; charcoal, white and stainless variants are available on request.
Common Applications
- Acoustic PanelsWall and ceiling acoustic absorbers — Yamamah Smart fabric, PET, foam and wood-slat panels.
- Slatted Walls & CeilingsDecorative slat panels in offices, lobbies, hotels and restaurants.
- Ceiling Clouds & BafflesSuspended acoustic clouds — flush-mounted to substrate, removable for cleaning.
- Architectural CladdingDecorative panels in lobbies, retail and signage.
- Kitchen & Reception CountersModular furniture, bar fronts, reception desks.
- Modular FurnitureSlide-on shelving, removable cabinet doors, panel walls.
Why Yamamah Smart Uses Button-Fix
Zero visible fixings
Panel sits flush against the wall — no screw heads, no brackets, no caps. Clean architectural finish.
Removable for service
Lift the panel off in seconds for cleaning, cable access, or replacement. No drilling damage to the panel.
Acoustically correct
Nylon Button + Fix decouples the panel from the wall — no rigid bridge that transmits vibration.
Faster than adhesive
No waiting for cure. Mount, click, done — a 2-person team installs 30 m² of acoustic panel per day.
