Round Perforation
Classic uniform circular holes — the most common pattern with broad supplier availability.
PERFORATED METAL BAFFLES
Perforated Metal Acoustic Baffles
Sound Absorption / Acoustic Treatment
Used for
Echo reduction · reverberation control · room acoustics
Installation area
Ceiling (vertical suspended)
Main metric
NRC / αw
Important: This product reduces echo INSIDE the room. It does not block sound between rooms unless combined with a full soundproofing system.
Durable perforated metal ceiling baffles with acoustic fleece or absorptive infill for high-traffic, industrial, public, and architectural ceiling applications.
Aluminum / Galv. Steel / Stainless0.8–1.5 mm Metal Thickness30–150 mm Baffle Width / Depth1000–3000 mm Length150–400 mm HeightRound / Slot / Micro-PerforationFleece / Mineral Wool / Glass Wool / PET InfillPowder-Coated RAL / Anodized / Wood-Look
Fire classification, acoustic performance, and corrosion resistance are subject to the selected material, coating, infill, and supplier test reports.
— TECHNICAL DEFINITION —
What are perforated metal baffles?
Perforated metal acoustic baffles are vertically suspended ceiling baffles made from perforated aluminum, galvanized steel, or stainless steel, with acoustic fleece or absorptive infill behind the perforated face. They are designed for echo reduction and reverberation control.
Important — the metal face itself is not the primary absorber. Sound absorption is achieved through the perforations, acoustic fleece or infill, internal cavity, and exposed baffle surfaces.
— TYPICAL SPECIFICATIONS —
Typical specifications
| Material | Aluminum, galvanized steel, or stainless steel |
| Metal Thickness | Approx. 0.8–1.5 mm depending on system and supplier |
| Baffle Width / Depth | 30, 50, 80, 100, or 150 mm options, subject to project requirements |
| Baffle Height | 150–400 mm standard, custom by project |
| Length | 1000–3000 mm standard, custom by project |
| Perforation | Round, slot, micro-perforation, or custom pattern |
| Open Area | Typically 15–40%, subject to perforation pattern |
| Backing | Black acoustic fleece or approved acoustic backing |
| Infill | Mineral wool, glass wool, PET acoustic core, or approved absorptive material |
| Finish | Powder-coated RAL, anodized aluminum, stainless steel, or wood-look finish |
| Suspension | Carrying channel, rods, steel cables, brackets, or custom fixing system |
| Acoustic Role | Echo reduction and reverberation control, not soundproofing |
| Fire Performance | Subject to full system test reports and selected materials |
— SYSTEM COMPONENTS —
Metal Baffle System Components
Perforated metal baffles should be treated as a complete ceiling system, including the baffle body, carrying channel, suspension accessories, end caps, brackets, and acoustic backing or infill where required.
Perforated Metal Baffle
Aluminum, galvanized steel, or stainless steel baffle body with the selected perforation pattern.
End Cap
Closes the open ends of the baffle for a clean, finished edge.
Carrying Channel
Top rail that carries the baffles and ties the system to the ceiling structure.
Connecting Splice
Joins two carrying channels for continuous spans across longer runs.
Hanging Rod / Steel Cable
Suspension element that drops the carrying channel from the slab.
Closing Strip
Finishing strip that hides edges and tidies the perimeter of the baffle field.
C-Channel Bracket
Wall or slab bracket that anchors the carrying channel at room boundaries.
Acoustic Fleece / Infill
Black fleece or absorptive core behind perforations to drive sound absorption.
— PERFORATION —
Perforation Patterns
The perforation pattern controls both the visual rhythm of the ceiling and the available open area for sound absorption.
Slot Perforation
Elongated slot openings — strong linear visual rhythm and adjustable directional character.
Micro-Perforation
Very small dense perforations — near-solid appearance from a distance with high open-area absorption potential.
Custom Pattern
Bespoke patterns, logos, or graphic perforations for branded architectural ceilings.
Open area and perforation pattern should be selected according to acoustic target, visual design, cleaning requirements, fire requirements, and supplier test reports.
— INFILL OPTIONS —
Infill & Backing Options
The backing and infill behind the perforated face drive how much sound is absorbed by the baffle system.

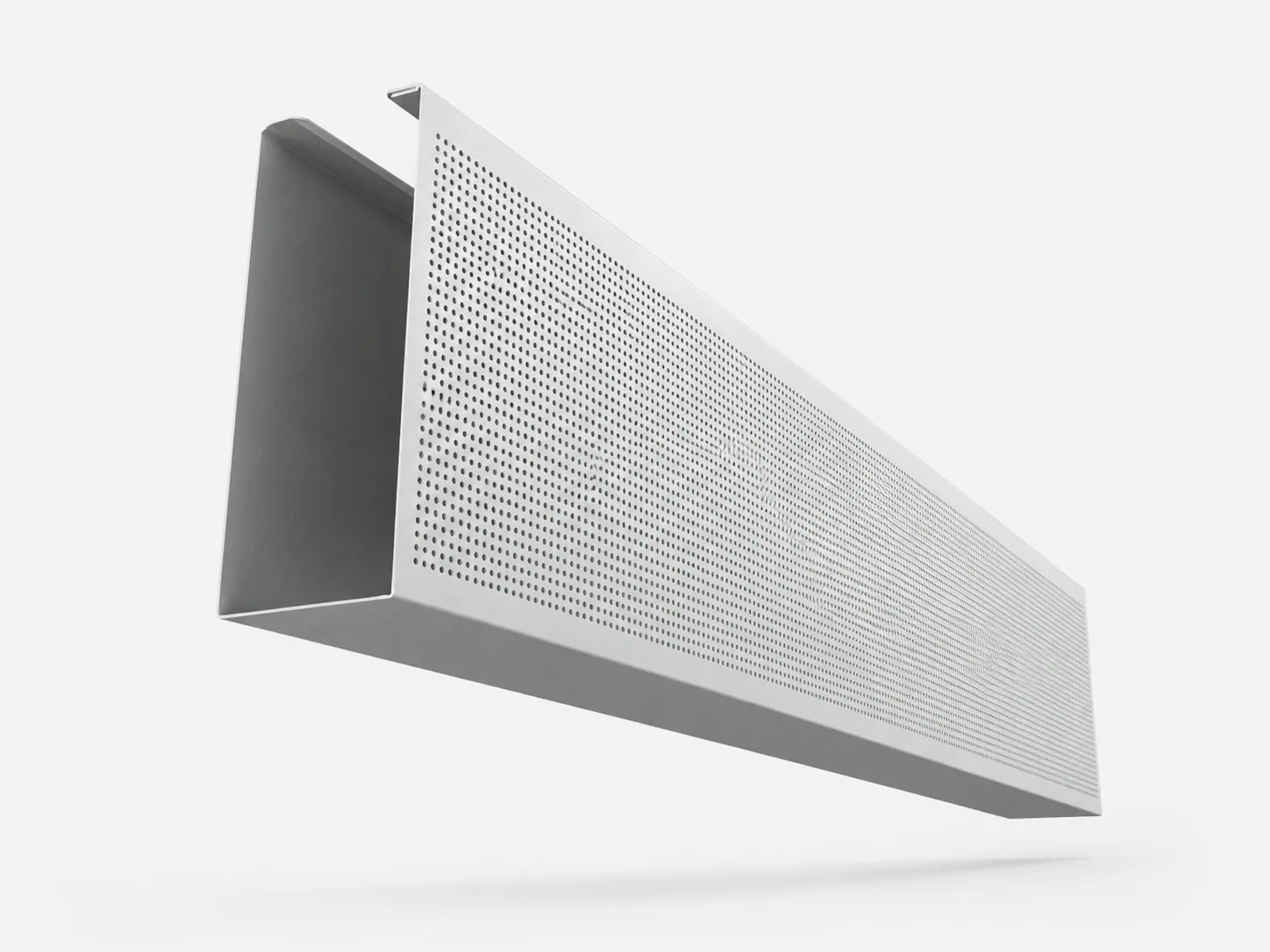

Without Infill
For projects where the visual metal baffle form, durability, and ceiling rhythm are the main requirements.

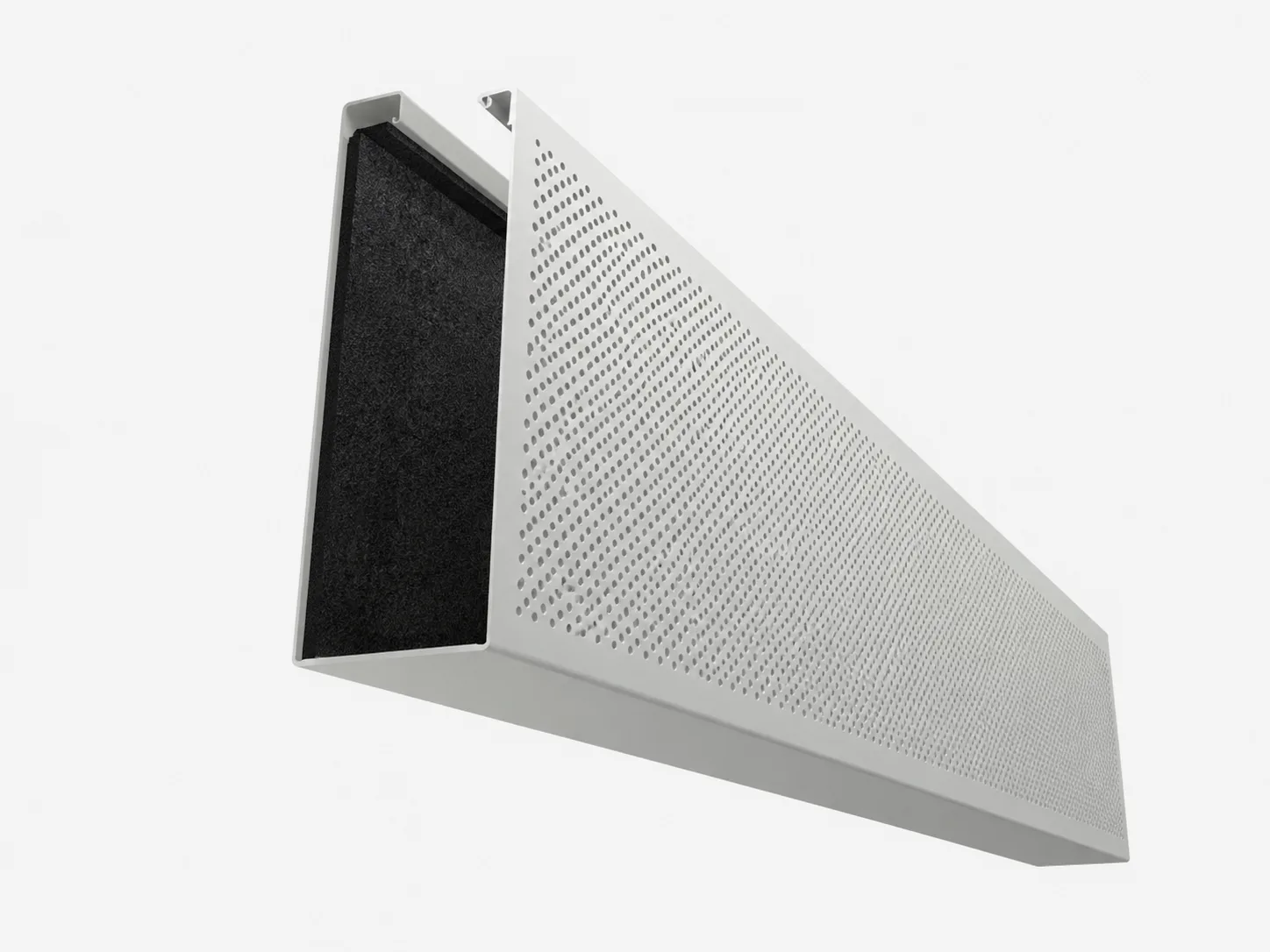

With Acoustic Fleece
A practical option for improved absorption, dark backing appearance, and cleaner visual finish behind perforations.

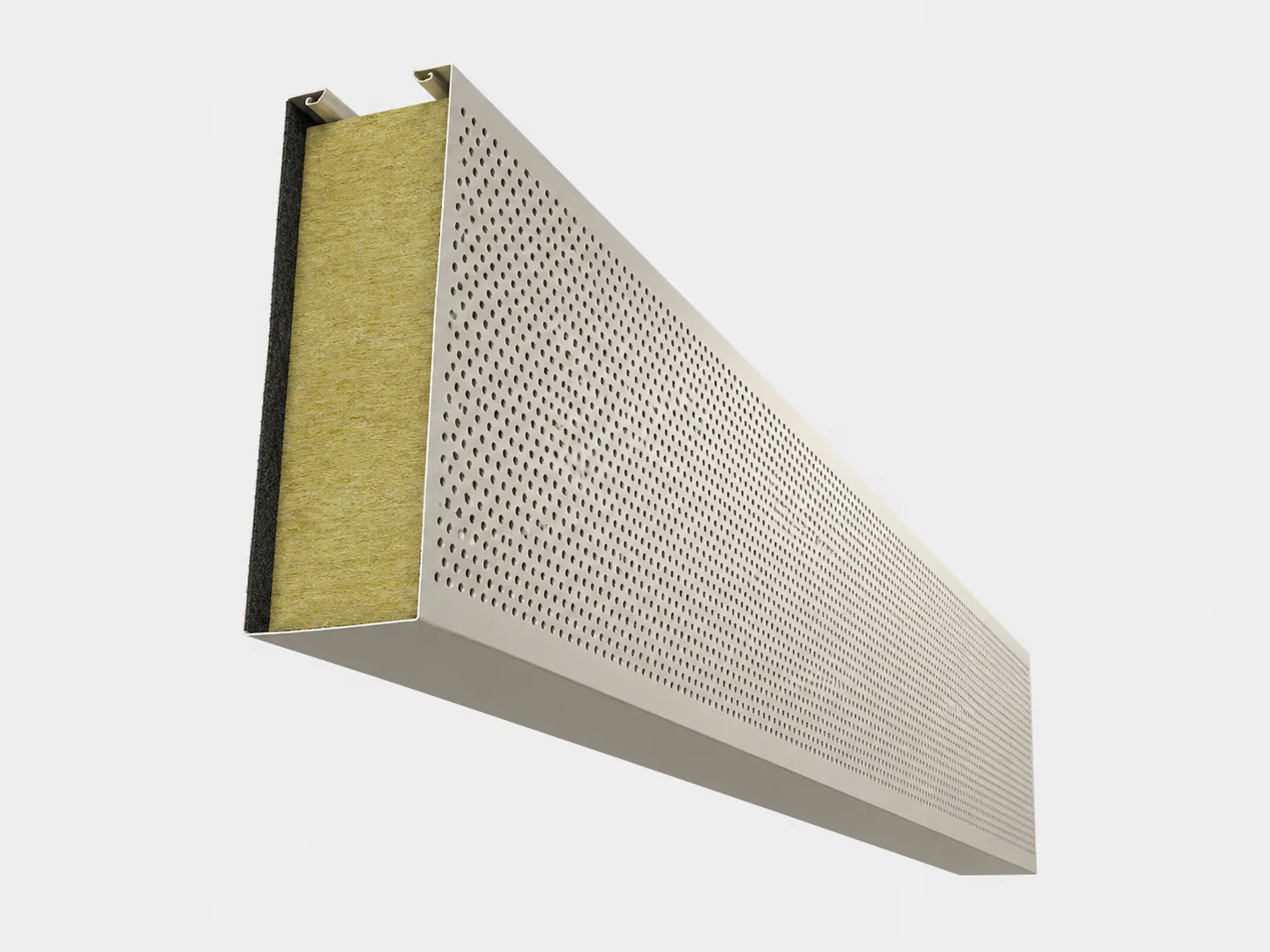

With Acoustic Fleece + Infill
Recommended for stronger acoustic performance where reverberation control is a key requirement.
Final acoustic performance depends on perforation pattern, open area, cavity depth, backing, infill, baffle spacing, room volume, and certified supplier test reports.
— WHEN TO CHOOSE —
When to choose metal baffles
Perforated metal baffles are recommended when durability, cleanability, fire performance, impact resistance, corrosion resistance, and industrial architectural appearance are important. For softer interiors, PET or fabric baffles may be preferred.
Airports & Transport Terminals
Malls & Public Corridors
Parking & Semi-Public Areas
Factories & Production Areas
Commercial Kitchens & Service Areas
Industrial-Look Offices
Lobbies & Public Interiors
Public Corridors
— COMPARISON —
Metal vs PET vs Fabric Baffles
Pick the right baffle family for your project — each material is suited to a different mix of durability, acoustics, and visual character.
Metal Baffles
Best for high-traffic, durable, washable, industrial and public areas.
View Metal Baffles →PET Baffles
Best for lightweight, colorful, creative, office, school, and library interiors.
View PET Baffles →Fabric Baffles
Best for soft premium interiors, meeting rooms, offices, hospitality, and speech clarity.
View Fabric Baffles →
