What is Grooved Wood Acoustic Panels?

Linear grooved wood panels with backer fabric absorption. Modern architectural look for offices and retail.

Does Yamamah Smart install Grooved Wood Acoustic Panels in Saudi Arabia?

Yes — Yamamah Smart supplies and installs Grooved Wood Acoustic Panels across all Saudi Arabia including Riyadh, Jeddah, Dammam, and Vision 2030 megaprojects. Site survey and installation supervision included.

What is the acoustic rating of Grooved Wood Acoustic Panels?

Grooved Wood Acoustic Panels carries NRC 0.6-0.8 verified performance. Actual project results depend on wall assembly and installation. Yamamah engineers provide free STC/NRC calculations for your specific application.

How do I request a quote for Grooved Wood Acoustic Panels?

Contact Yamamah Smart via WhatsApp at +966 56 300 5070, email info@yamamahsis.com, or through yamamahsis.com/contactus. Response within 30 minutes during Saudi business hours.

What is NRC and what NRC do grooved wood panels achieve?

NRC (Noise Reduction Coefficient) is the average sound absorption at 250, 500, 1000 and 2000 Hz (ASTM C423). Our grooved wood patterns range from NRC 0.55 (decorative, wide spacing) to NRC 0.95 (very dense pattern, full acoustic treatment).

What is the difference between the 8 grooved patterns?

Each pattern is named [spacing in mm]-[groove width in mm]. Wider spacing (like 59-5) keeps a decorative wood look with lower absorption. Tighter spacing (like 5-3 or 13-3) increases the punching rate to 12-19% and pushes NRC to 0.90-0.95 — full acoustic treatment level.

What thickness and panel size are available?

Standard panel: 133 mm x 2440 mm. Two thickness options: 15 mm and 18 mm. Custom sizes on project order.

How are grooved acoustic panels installed?

Three methods: direct adhesive on solid walls, framework with hidden clips on stud walls (cavity for added absorption), or suspended track for ceilings. We install professionally across Saudi Arabia.

Are grooved wood panels fire rated?

Fire rating depends on the substrate and finish selected. Fire-resistant MDF substrate with FR melamine reaches B-s1, d0 (EN 13501-1) or A2-s1, d0 (GB 8624-2012) — please specify project requirement at quotation.

Grooved wood panels in home theater | ألواح خشب مخدّدة في مسرح منزلي

8 PATTERNS · NRC 0.55–0.95 · ASTM C423

Grooved Wood Acoustic Panels

Sound Absorption / Acoustic Treatment

Used for Echo reduction · reverberation control · room acoustics

Installation area Wall / ceiling

Main metric NRC / αw

Important: This product reduces echo INSIDE the room. It does not block sound between rooms unless combined with a full soundproofing system.

Engineered wood panels with V-grooves backed by black fire-rated acoustic fleece — 8 lab-tested patterns from NRC 0.55 to 0.95. Premium wood look + real acoustic absorption.

Explore 8 Patterns → Free Sample + Consult

patterns

0.95

max NRC

15/18

mm thick

2440

mm length

NRC 0.55 – 0.95 ASTM C423 15 / 18 MM 133 × 2440 MM

150+

Projects Completed

10 yrs

Manufacturer Warranty

ISO 354

Tested Standards

1,200 m²

Fabrication Facility

+966

Saudi Arabia HQ

CERTIFIED TOASTM C423ISO 11654B-s1, d0E1 FormaldehydeCEGreenGuard

— WHERE WILL YOU USE THEM? —

🎙️Recording Studio 🎭Theatre / Auditorium 🏢Office / Conference 🏨Hotel Lobby 🍽️Restaurant 🎓Classroom / Lecture

8 LAB-TESTED PATTERNS◆

NRC 0.55 – 0.95◆

ASTM C423◆

133 × 2440 mm◆

15 / 18 mm◆

BLACK FR FLEECE◆

CUSTOM VENEERS◆

STOCKED · KSA◆

8 LAB-TESTED PATTERNS◆

NRC 0.55 – 0.95◆

ASTM C423◆

133 × 2440 mm◆

15 / 18 mm◆

BLACK FR FLEECE◆

CUSTOM VENEERS◆

STOCKED · KSA◆

8 LAB-TESTED PATTERNS

Pick the Right Pattern for Your Absorption Target

Each pattern is named [spacing-groove width] in mm. Higher punching rate = higher NRC.

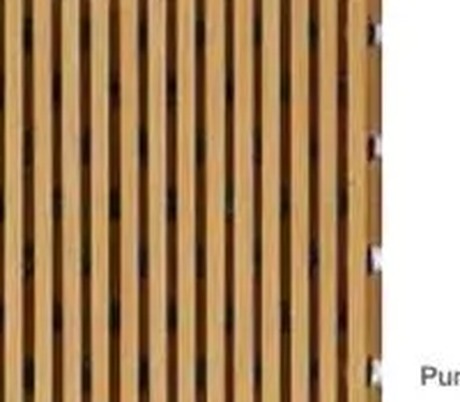

NRC 0.95

5-3

NRC 0.95 · MAX ABSORPTION

Spacing 5 mm Groove 3 mm Punching 19.0%

Pattern 5-3 — 19.0% punching delivers NRC 0.95 measured per ASTM C423.

NRC 0.90

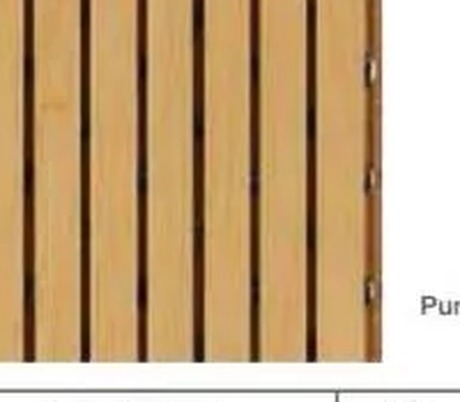

Yamamah Smart grooved wood pattern 13-3 — 13mm spacing with 3mm grooves, 12.0% punching rate, ASTM C423 NRC 0.9

13-3

NRC 0.90 · DENSE LINEAR

Spacing 13 mm Groove 3 mm Punching 12.0%

Pattern 13-3 — 12.0% punching delivers NRC 0.9 measured per ASTM C423.

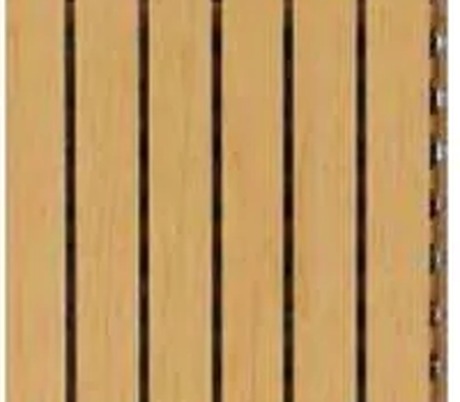

NRC 0.85

18-3

NRC 0.85 · LINEAR MODERN

Spacing 18 mm Groove 3 mm Punching 9.0%

Pattern 18-3 — 9.0% punching delivers NRC 0.85 measured per ASTM C423.

NRC 0.75

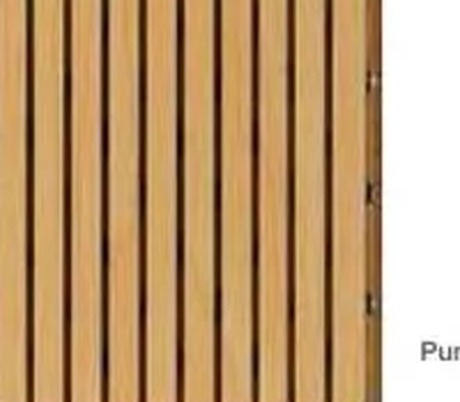

9-2

NRC 0.75 · FINE · SPEECH

Spacing 9 mm Groove 2 mm Punching 12.0%

Pattern 9-2 — 12.0% punching delivers NRC 0.75 measured per ASTM C423.

NRC 0.70

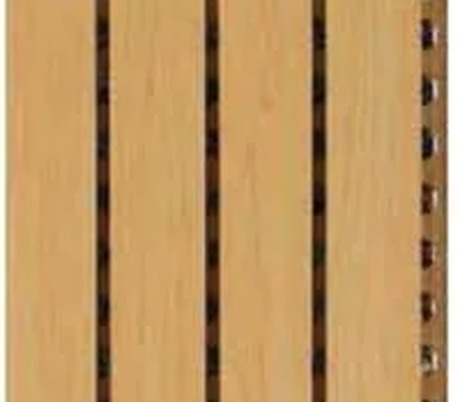

Yamamah Smart grooved wood pattern 28-4 — 28mm spacing with 4mm grooves, 8.0% punching rate, ASTM C423 NRC 0.7

28-4

NRC 0.70 · BALANCED

Spacing 28 mm Groove 4 mm Punching 8.0%

Pattern 28-4 — 8.0% punching delivers NRC 0.7 measured per ASTM C423.

NRC 0.60

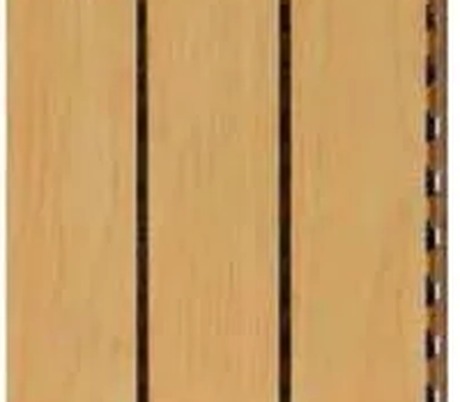

Yamamah Smart grooved wood pattern 40-3 — 40mm spacing with 3mm grooves, 5.0% punching rate, ASTM C423 NRC 0.6

40-3

NRC 0.60 · MODERATE

Spacing 40 mm Groove 3 mm Punching 5.0%

Pattern 40-3 — 5.0% punching delivers NRC 0.6 measured per ASTM C423.

NRC 0.60

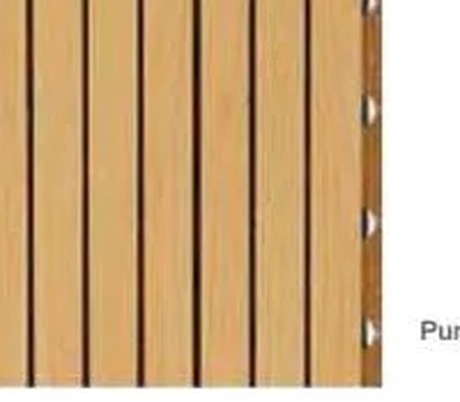

Yamamah Smart grooved wood pattern 14-2 — 14mm spacing with 2mm grooves, 8.0% punching rate, ASTM C423 NRC 0.6

14-2

NRC 0.60 · FINE · DECORATIVE

Spacing 14 mm Groove 2 mm Punching 8.0%

Pattern 14-2 — 8.0% punching delivers NRC 0.6 measured per ASTM C423.

NRC 0.55

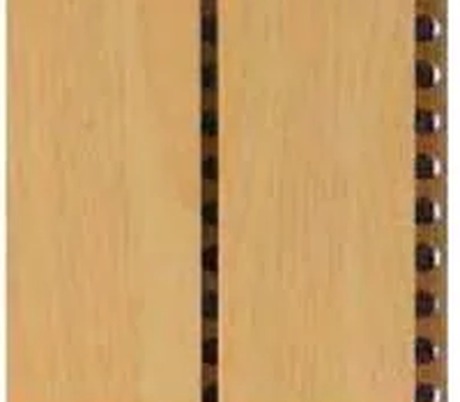

59-5

NRC 0.55 · WIDE · DECORATIVE

Spacing 59 mm Groove 5 mm Punching 5.5%

Pattern 59-5 — 5.5% punching delivers NRC 0.55 measured per ASTM C423.

FREQUENCY RESPONSE

Absorption Curves · All 8

Lab-measured from 100 Hz to 5 kHz for every pattern. NRC = average of α at 250 / 500 / 1000 / 2000 Hz.

Sound absorption coefficient curves for all 8 Yamamah Smart grooved wood patterns measured per ASTM C423 from 100Hz to 5kHz

APPLICATION EXAMPLES

Where Grooved Panels Belong

From lecture halls to home cinemas, boardrooms, and hotel lobbies — grooved panels deliver wood warmth with effective sound absorption.

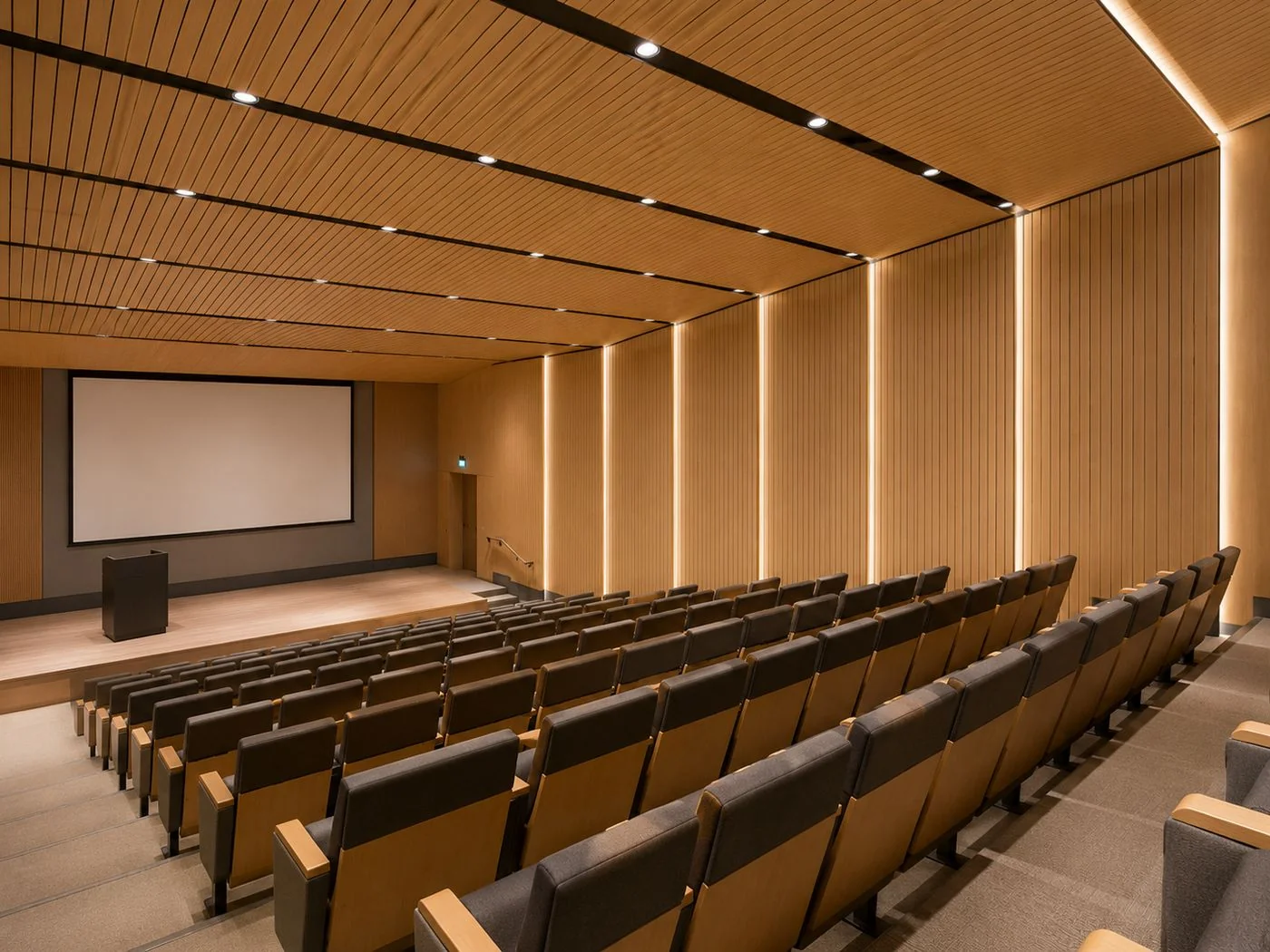

Grooved wood acoustic panels installed across an auditorium's side walls and ceiling — warm wood look with absorbed reflections for clear speech intelligibility.

Auditorium / Lecture Hall

EDUCATION · PERFORMANCE

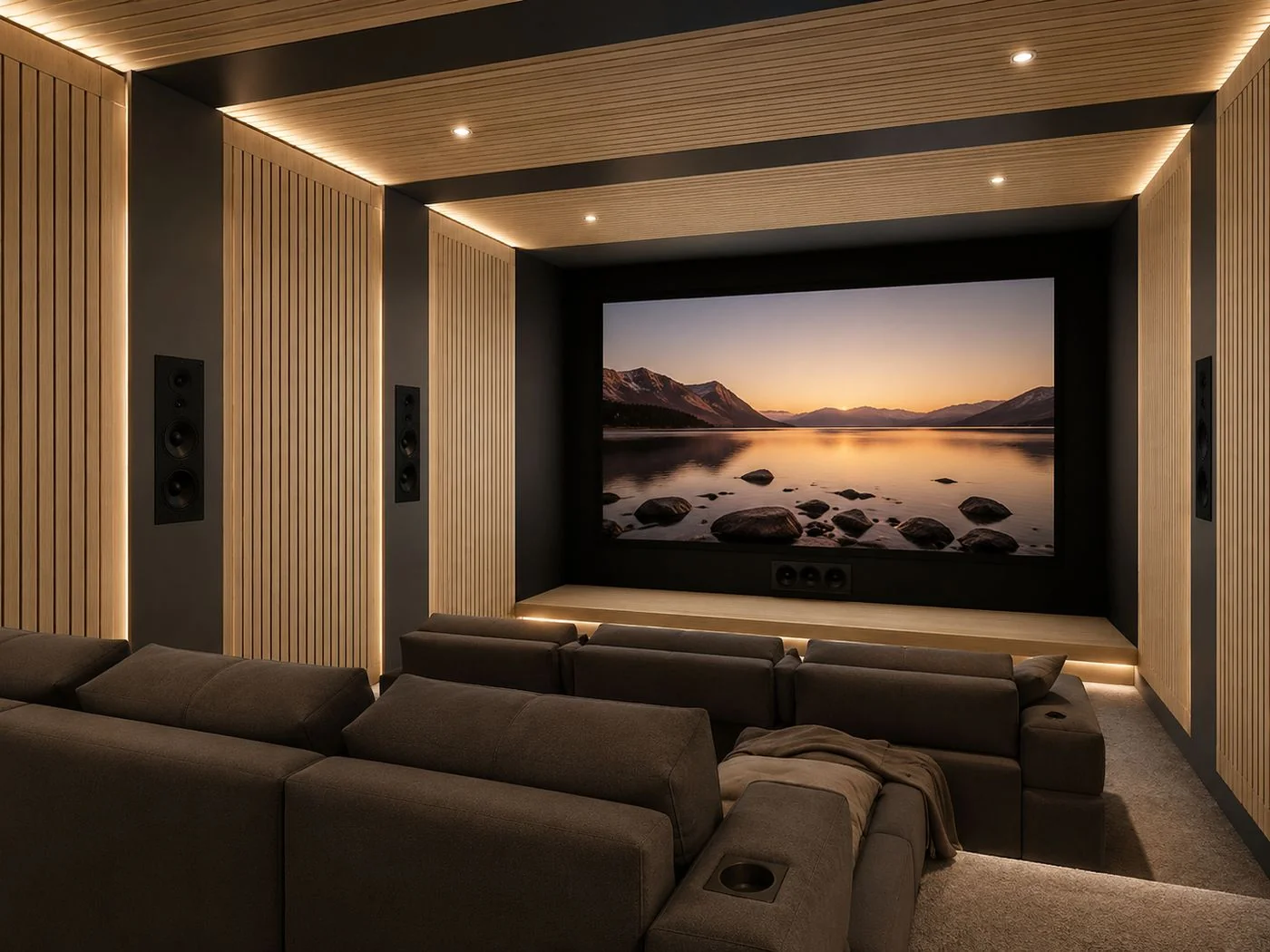

Linear grooved wood paneling around a private home theater — combining decorative wood texture with sound absorption for immersive audio.

Home Cinema · Premium Residence

RESIDENTIAL · HIGH-END

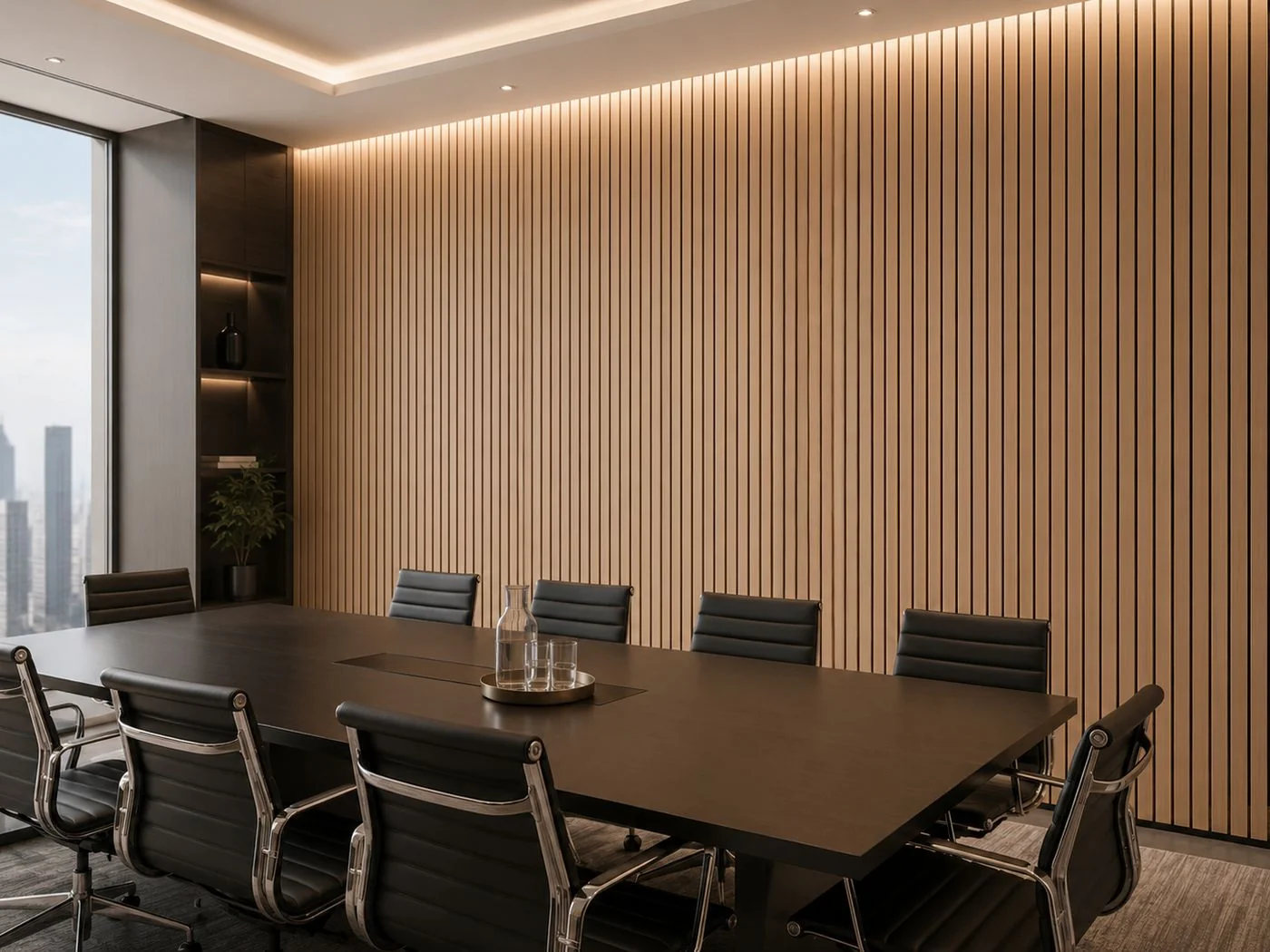

Floor-to-ceiling grooved wood accent wall behind a meeting table — warming the corporate aesthetic while controlling speech reverberation.

Boardroom · Corporate Office

CORPORATE · MEETING

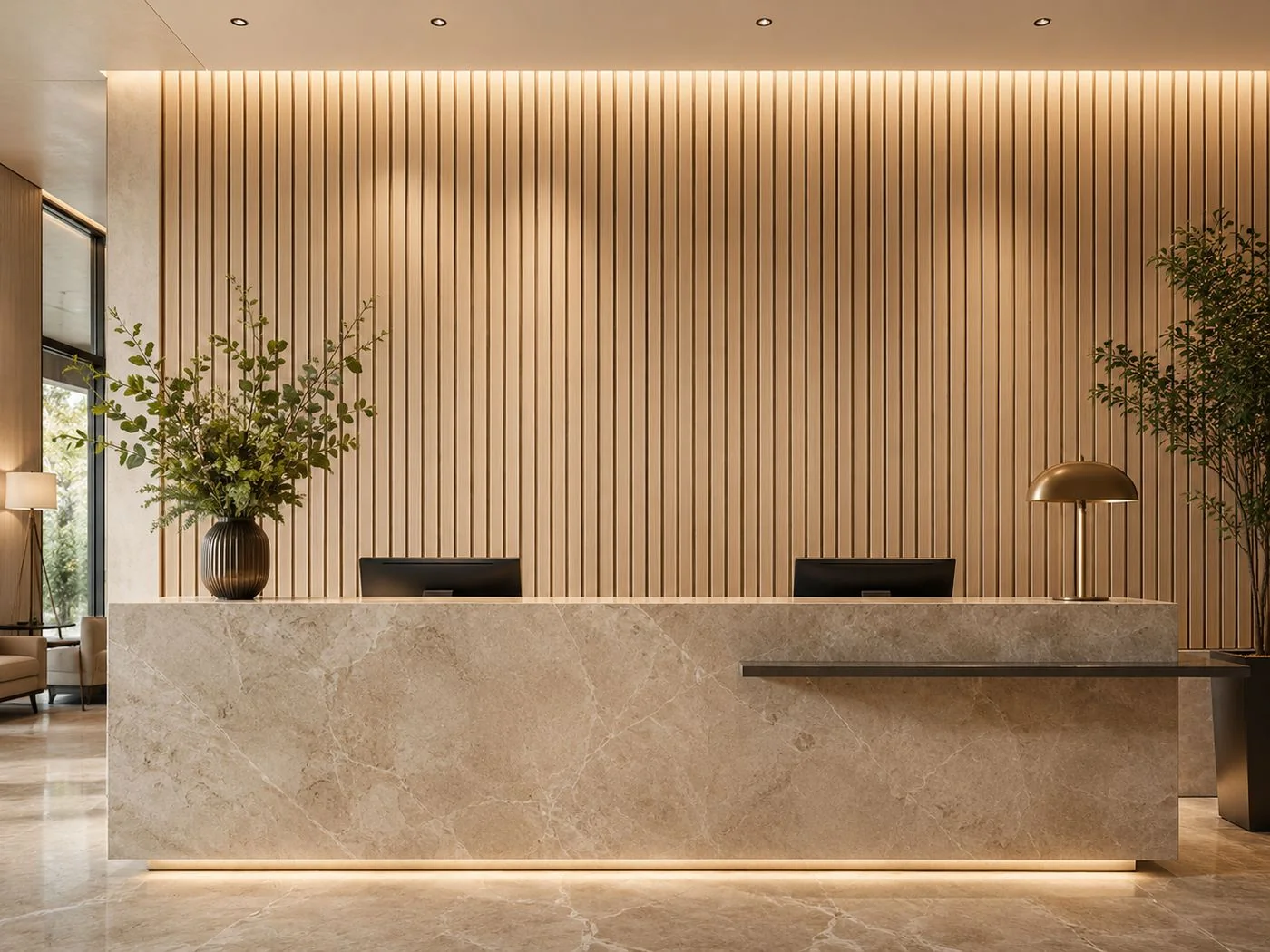

Vertical grooved wood paneling behind a hotel reception desk — a calm, premium first impression with reduced lobby noise.

Hotel Reception · Hospitality

HOSPITALITY · LOBBY

Rendered application visualisations · Grooved wood panel finish shown across typical project types

COLOURS & FINISHES

Every Wood On Request

Natural veneers, melamine, or paint — choose any wood that suits your design. 6 popular options below, more on request.

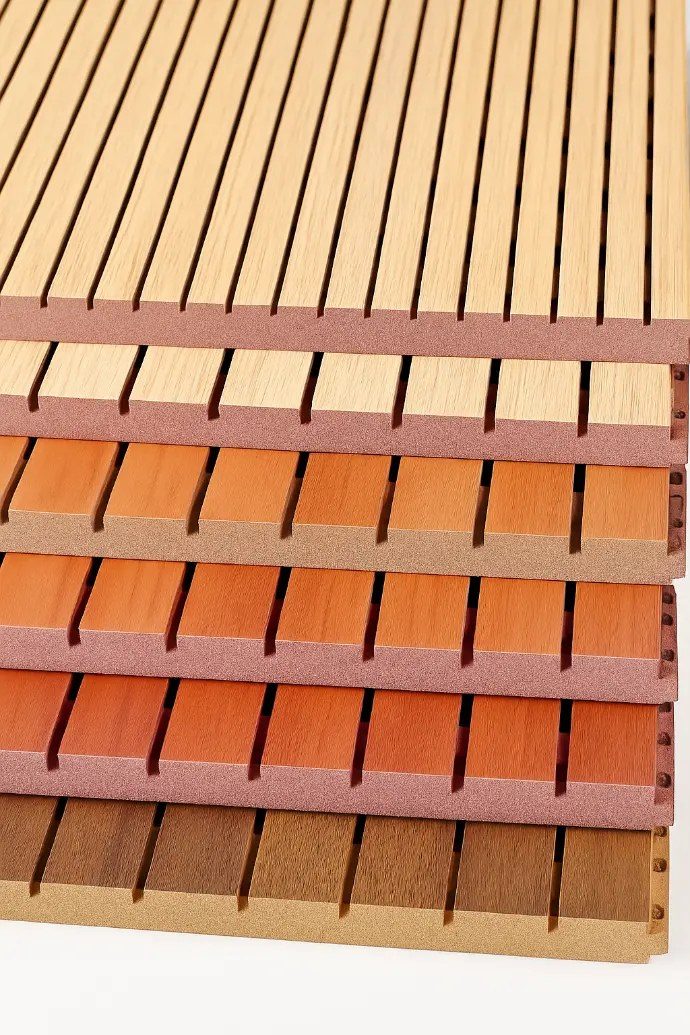

Yamamah Smart grooved wood acoustic panels in 6 different wood finish colours stacked — light cream, light tan, terracotta, orange-brown, oak, medium walnut

SWATCH GUIDE · 6 POPULAR FINISHES

Light Oak

Natural Oak

Tan Oak

Cognac

Cherry

Golden Oak

+ Melamine in multiple colours · Custom RAL paint · Raw substrate for site finish — per project request.

INSTALLATION DETAIL

Engineered Wall & Ceiling Detail

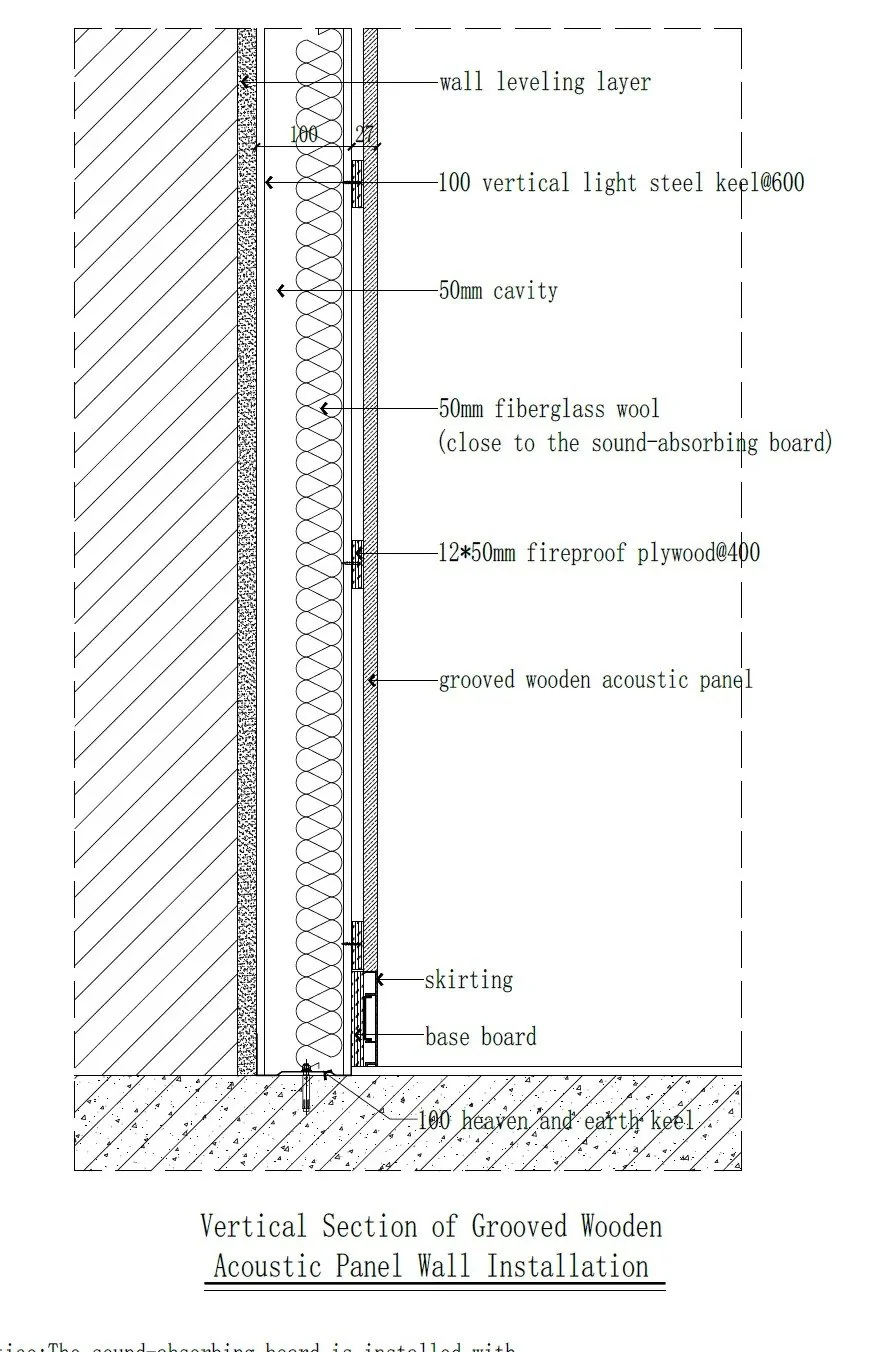

Yamamah Smart engineered vertical section CAD drawing of grooved wood acoustic panel wall installation — showing wall leveling, 100mm steel keel, 50mm cavity, 50mm fiberglass wool, 12x50mm fireproof plywood, grooved panel, skirting and base board

VERTICAL SECTION · ENGINEERED DETAIL

Every Layer, To Scale

▸ Wall leveling layer — ensures a flat plane
▸ 100 mm vertical light steel keel @ 600 — 600 mm o.c.
▸ 50 mm air cavity — acts as low-freq absorber
▸ 50 mm fiberglass wool — close to the absorbing board
▸ 12 × 50 mm fireproof plywood @ 400 — substrate strip @ 400 mm
▸ Grooved wooden acoustic panel — face layer
▸ Skirting + base board — clean finishing edge at floor

REF · OUR ENGINEERED VERTICAL SECTION DETAIL

TECHNICAL SPECIFICATIONS

Everything You Need on One Page

Panel size

133 × 2440 mm (custom on project order)

Thickness

15 mm · 18 mm

Substrate

Engineered wood (MDF) — standard / eco / fire-resistant / moisture-proof on request

Groove patterns

8 patterns: 5-3 · 9-2 · 13-3 · 14-2 · 18-3 · 28-4 · 40-3 · 59-5

Groove geometry

V-shaped grooves, depth typically 6–9 mm

Backing

Black FR acoustic non-woven fleece (Soundtex equivalent), continuous on the rear face

NRC range

0.55 to 0.95 (ASTM C423, depending on pattern + cavity)

Frequency tested

100 Hz to 5 kHz, third-octave bands

Finishes

All wood options on request — natural veneers (Oak / Walnut / Maple / Beech / Wenge / Ash), melamine, painted, raw

Fire rating

Depends on chosen substrate + finish — B-s1, d0 (EN 13501-1) standard option · A2-s1, d0 available

Formaldehyde

E1 grade (EN 13986)

Edge profile

Square edge or tongue & groove

Mounting

Direct adhesive · framework + hidden clips · suspended ceiling

Origin

Imported · stocked in Riyadh

APPLICATIONS

Engineered for Every Space

🎙️

Recording Studios

🎭

Theatres & Halls

🏢

Corporate Offices

🏨

Hotels & Hospitality

🏥

Healthcare

🎓

Education

FREQUENTLY ASKED

Quick Answers

What is NRC and which pattern gives the highest?

NRC is the average absorption at 250, 500, 1000 and 2000 Hz (ASTM C423). Our patterns range from NRC 0.55 (decorative 59-5) to NRC 0.95 (dense 5-3, maximum absorption).

What is the difference between the 8 patterns?

Each pattern name = [groove spacing] - [groove width] in mm. Wide patterns (59-5, 40-3) keep a decorative wood look with lower absorption. Dense patterns (13-3, 5-3) reach 12-19% punching rate with NRC 0.90-0.95.

What sizes and thicknesses are available?

Standard panel: 133 × 2440 mm. Thickness: 15 mm or 18 mm. Custom sizes on project order.

What wood and finish options are available?

All wood options on request — natural veneers (Oak / Walnut / Maple / Beech / Wenge / Ash), melamine in multiple colours, painted, or raw for site finish.

Are the panels fire rated?

Yes — rating depends on the chosen substrate and finish. B-s1, d0 (EN 13501-1) standard · A2-s1, d0 available where the project requires.

How are they installed?

Three methods: (1) direct adhesive on solid walls, (2) framework + hidden clips on stud walls (with optional cavity insulation), (3) suspended ceiling for soffits. We install professionally across Saudi Arabia.

Can I request a sample before ordering?

Yes — contact us by WhatsApp or phone and we will send a physical sample of the chosen pattern and finish so you can assess texture and colour before committing.
