— Living With Noise —
Noise pollution is a public health issue
The World Health Organization classifies noise pollution as a threat to public health. Over 30% of the population is regularly exposed to noise causing stress, sleep disruption, and cardio-vascular risk. But construction, demolition, and infrastructure projects don't stop — so noise must be managed intelligently.
Geometry
Panels positioned ideally relative to the noise source create an acoustic shadow that captures noise.
Noise Absorption
Designed to absorb noise — not reflect it like wood or metal. Reflected sound aggravates the problem.
Barrier Mass
Optimum balance of mass & weight. Panels can be double or triple-layered for more reduction.

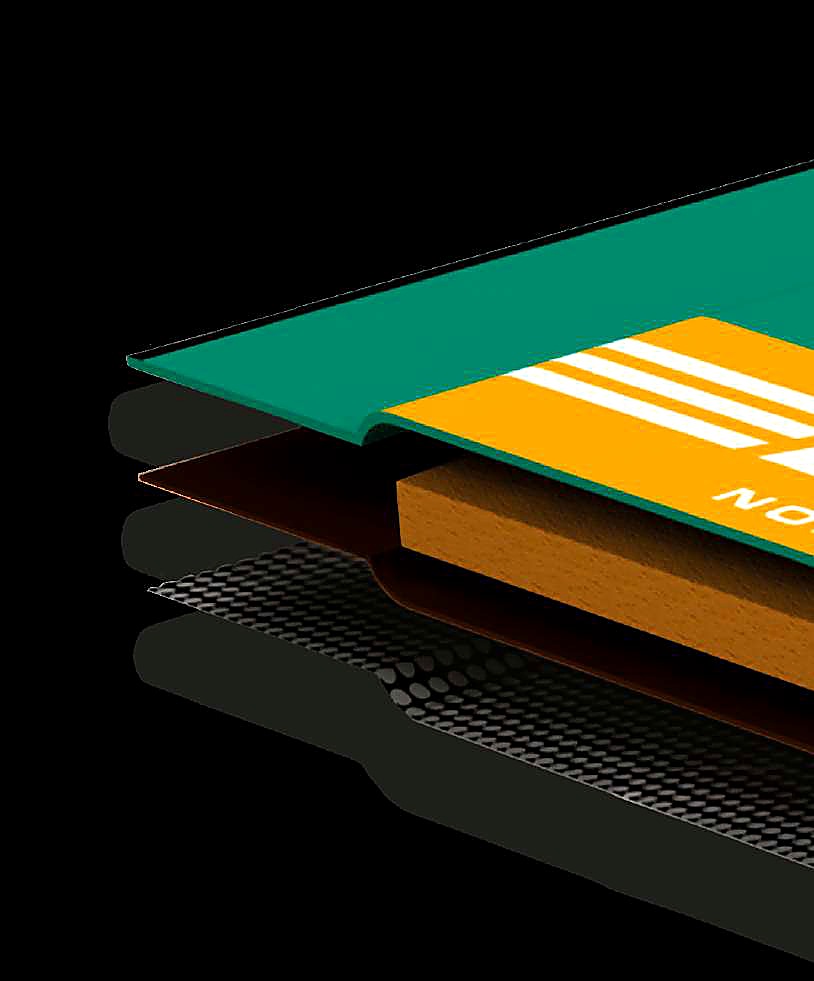

— Four-Layer Construction —
Engineered for absorption & durability
Every Echo Barrier panel is built from four engineered layers — each doing one job perfectly.
Durable Waterproof PVC Outer
Premium PVC with optimal mass for maximum noise mitigation. Tough, weatherproof, visually clean finish.
Noise-Absorbent Composite Core
Lightweight, highly absorbent — capable of 100% noise absorption at certain frequencies.
Waterproof Breathable Membrane
Lets sound through for absorption while keeping water out. The dual-action layer.
Reinforced Mesh Backing
Safeguards the panel in demanding work environments without compromising acoustic performance.
— The Echo Barrier Range —
Seven panels · one for every job
From a standard 3.5 m fence cover to specialist all-direction absorbers — pick the right panel for your site.
H8 Acoustic Barrier
Covers a standard 3.5 m fence instantly without compromising fire resistance
- ●Excellent noise absorption
- ●Water · fire · dust resistant
- ●24-month warranty
- ●Lightweight, single-operator deploy
H9 Acoustic Barrier
High-performance barrier — most popular in the range
- ●Exceptional noise reduction & absorption
- ●Passes BS 7837, ASTM E84, EN 13501-1 fire tests
- ●Most popular model
- ●Light and easy to deploy
H10 Acoustic Barrier
Ultimate overall performance — most versatile
- ●Highest all-round performance
- ●Portable, flexible, durable, adaptable
- ●Superior noise reduction & absorption
- ●Suited to all applications

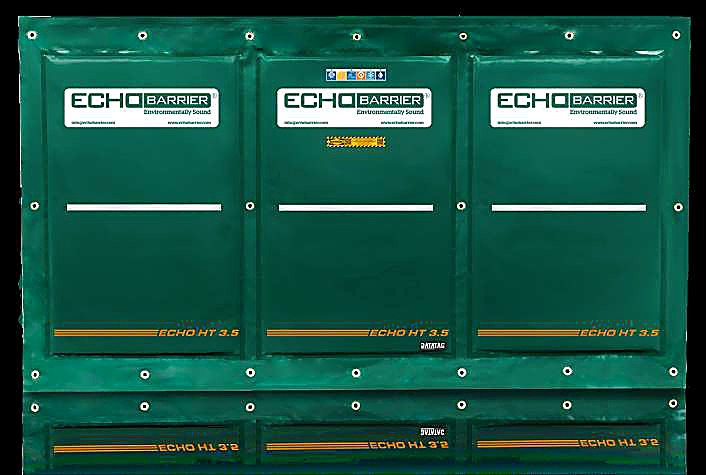

HT 3.5 Acoustic Barrier
Extra-rapid deployment on large-scale projects
- ●3× the size of standard barriers
- ●Rapid deployment across large zones
- ●Outstanding noise absorption
- ●Lightweight, durable

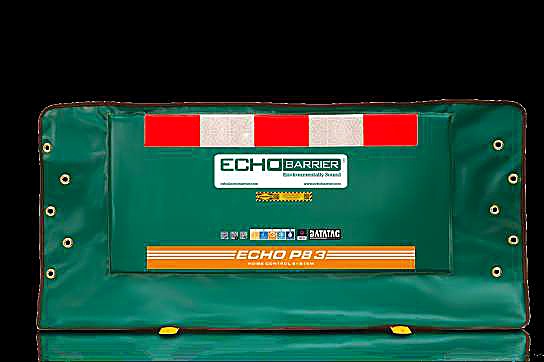

PB3 Pedestrian Barrier
The only acoustic solution for a pedestrian fence
- ●Sized for pedestrian fencing
- ●Reduces noise, dust, and debris
- ●Outstanding absorption
- ●Lightweight & durable
V2 Folding Frame Barrier
Innovative folding design with quick angle adjustment
- ●Lightweight aluminum frame
- ●5 locking angle positions
- ●Water, fire & temperature resistant
- ●Folds flat for transport
TB6 Sonic Sound Absorber
Specialist — absorbs noise from both sides across wide frequencies
- ●Absorbs from both sides
- ●Wide frequency range
- ●Suitable for indoor use
- ●Fire & UV resistant

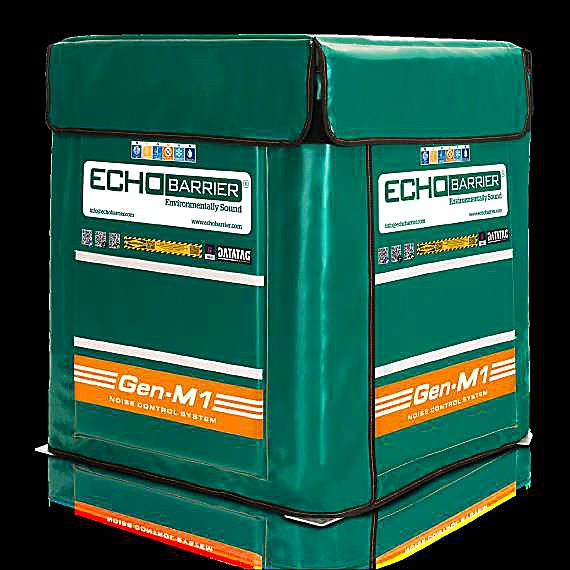

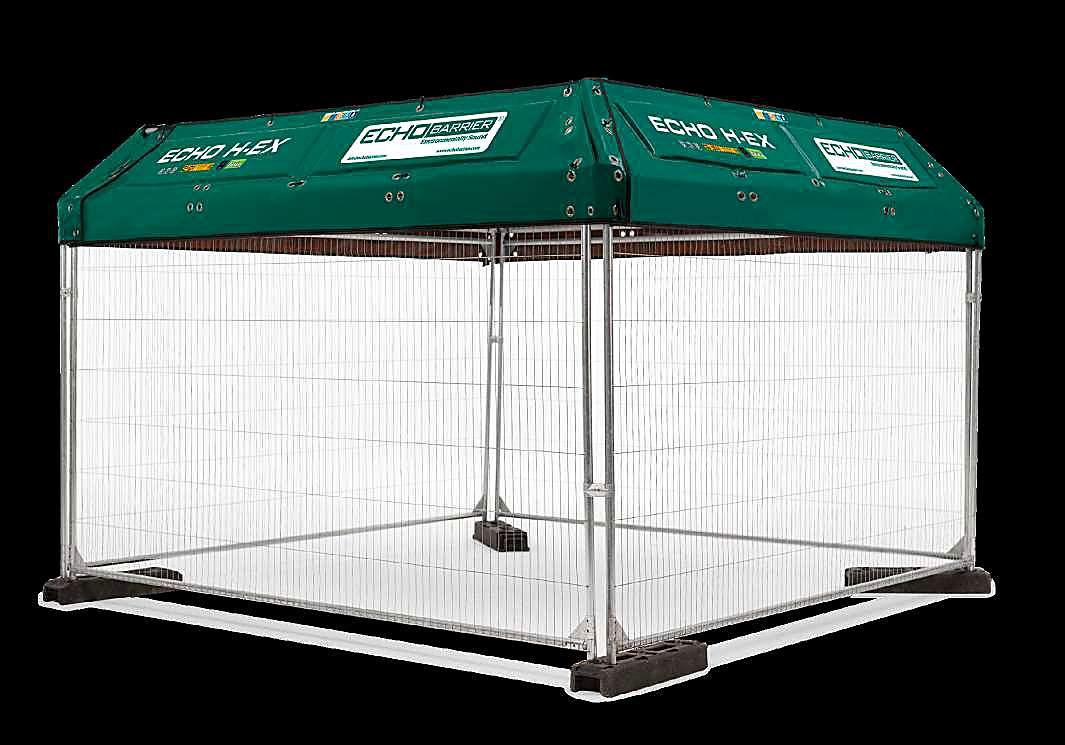

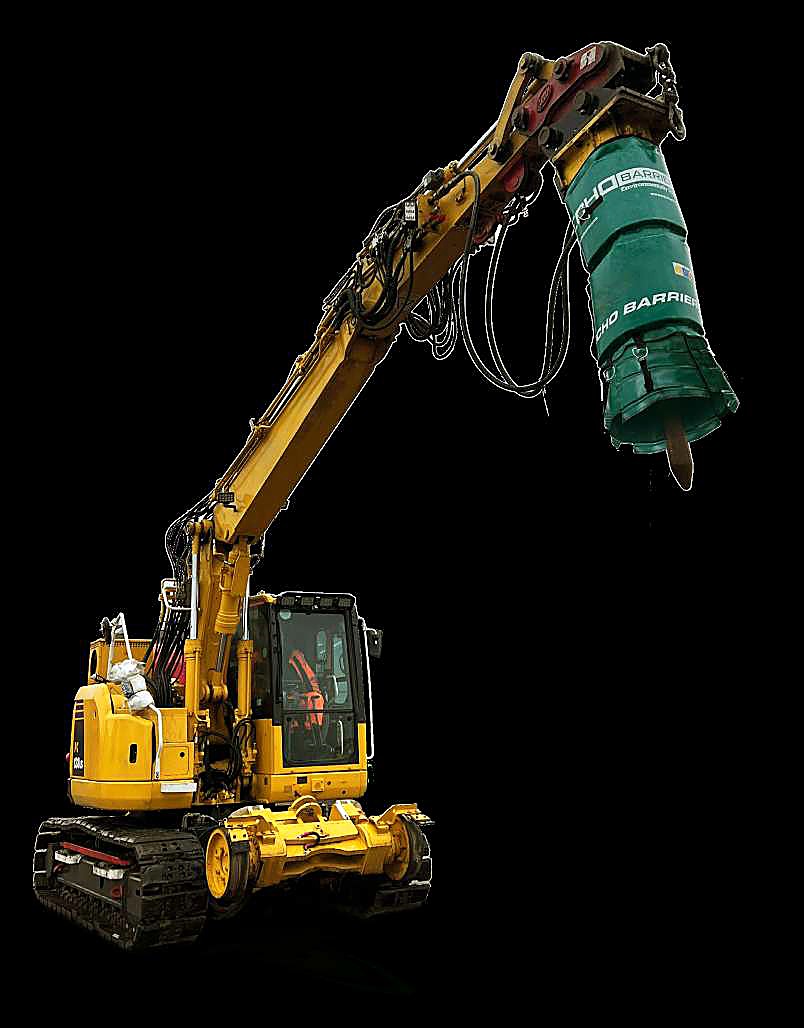

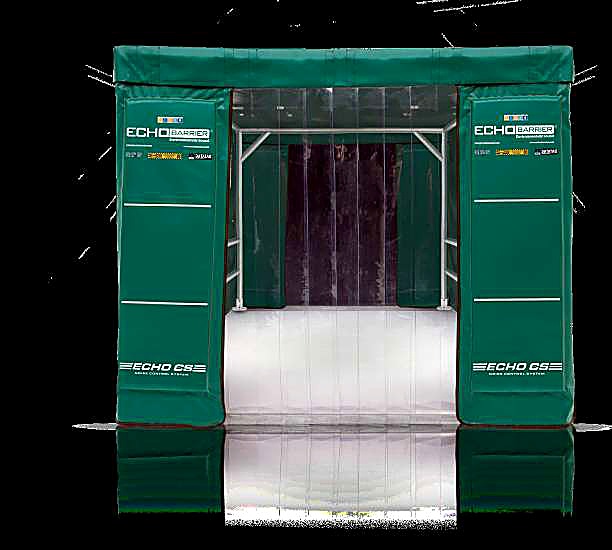

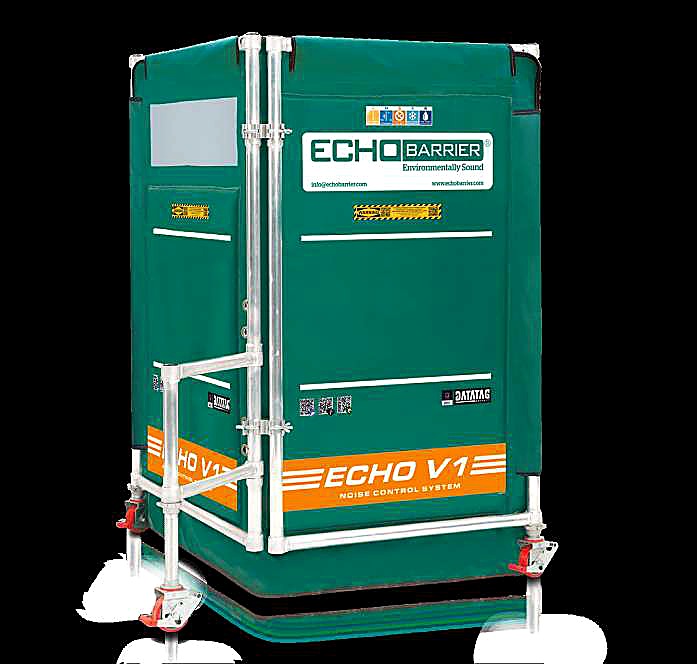

— Specialty Enclosures —
Six purpose-built noise solutions
Beyond the standard panels — engineered acoustic enclosures for the toughest point-source noise problems.

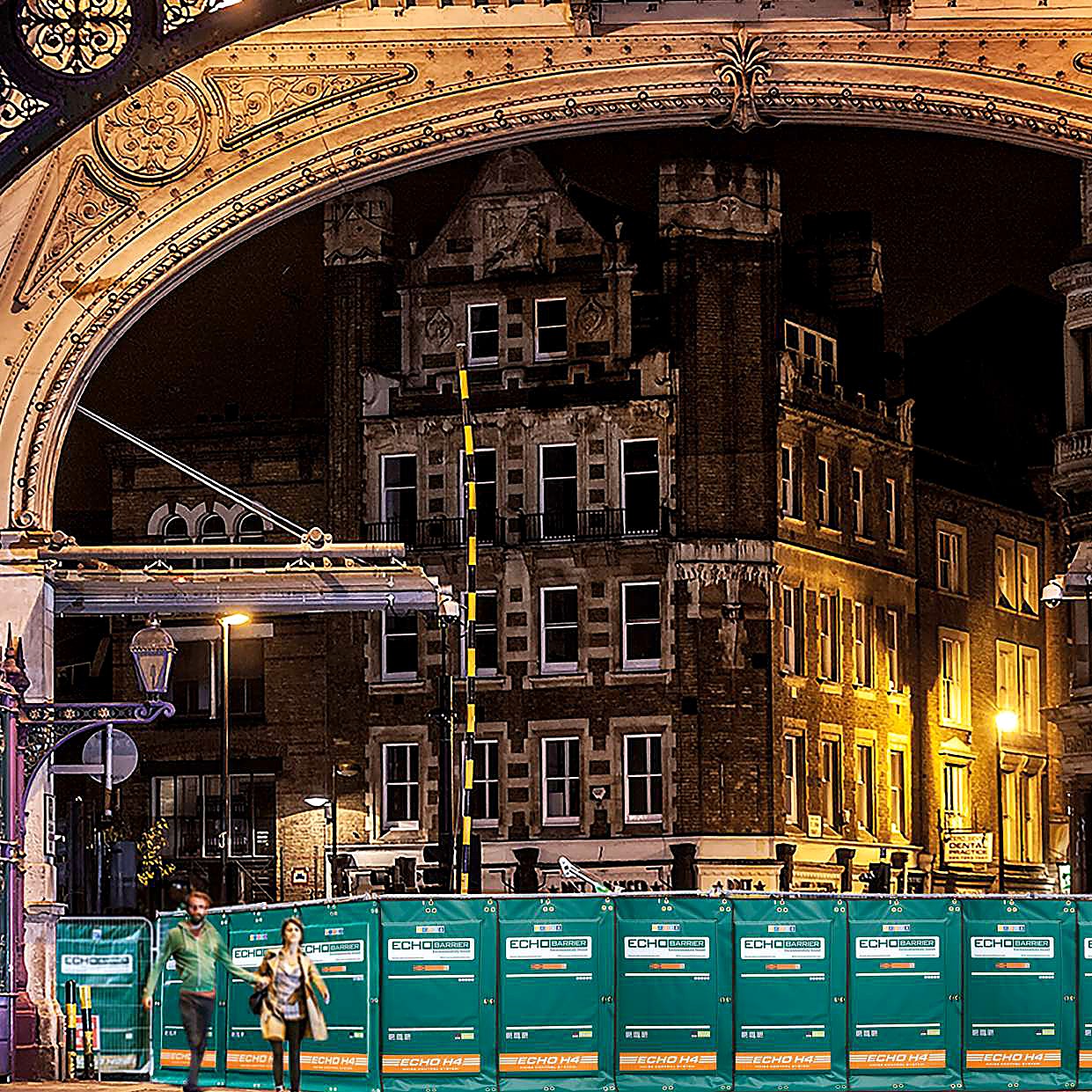

— Field Applications —
Deployed worldwide on demanding projects
— Industry Sectors —
Proven across eight industries

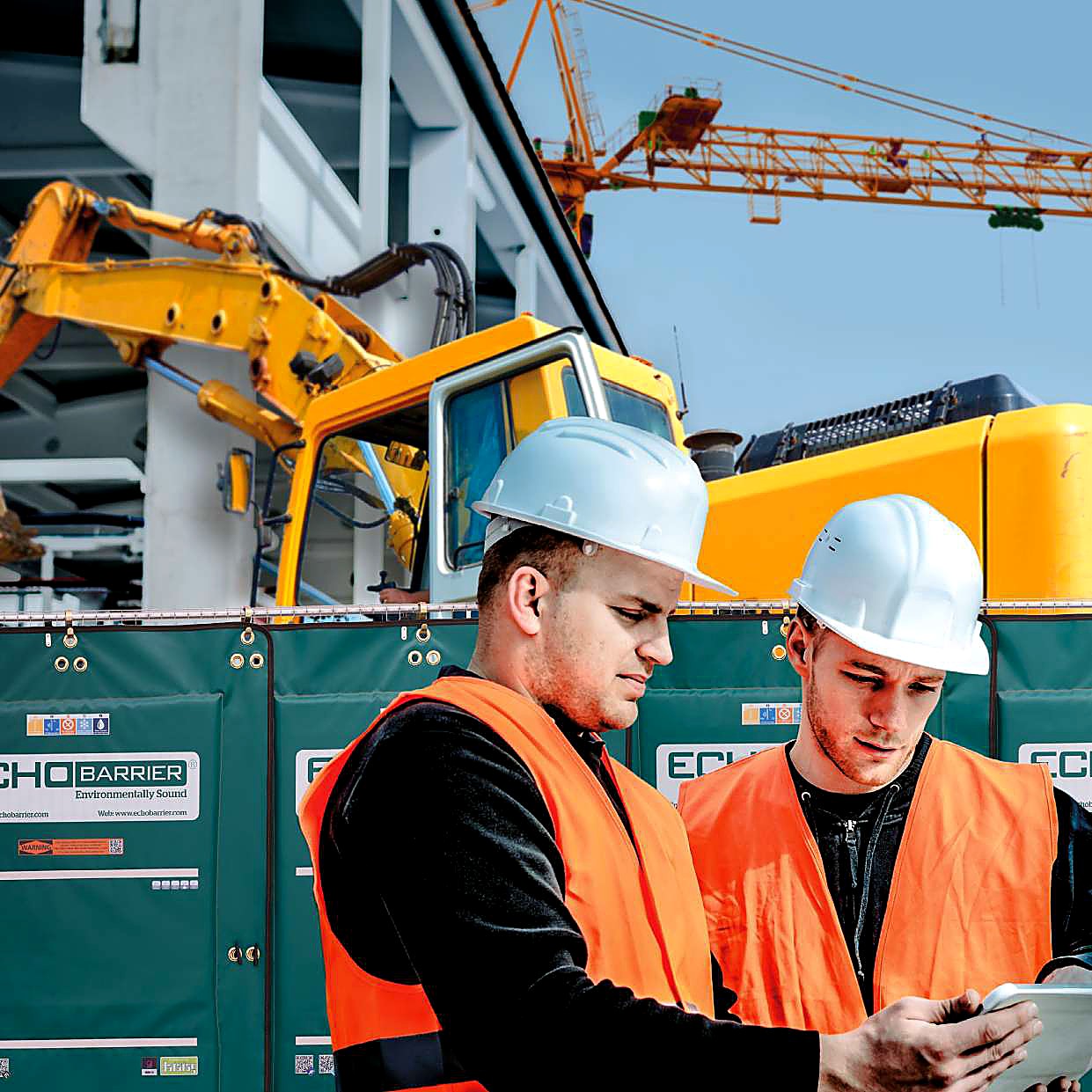

Construction
Extend working hours without disturbing neighbors.
Demolition
Concrete breaking, drilling, heavy equipment.

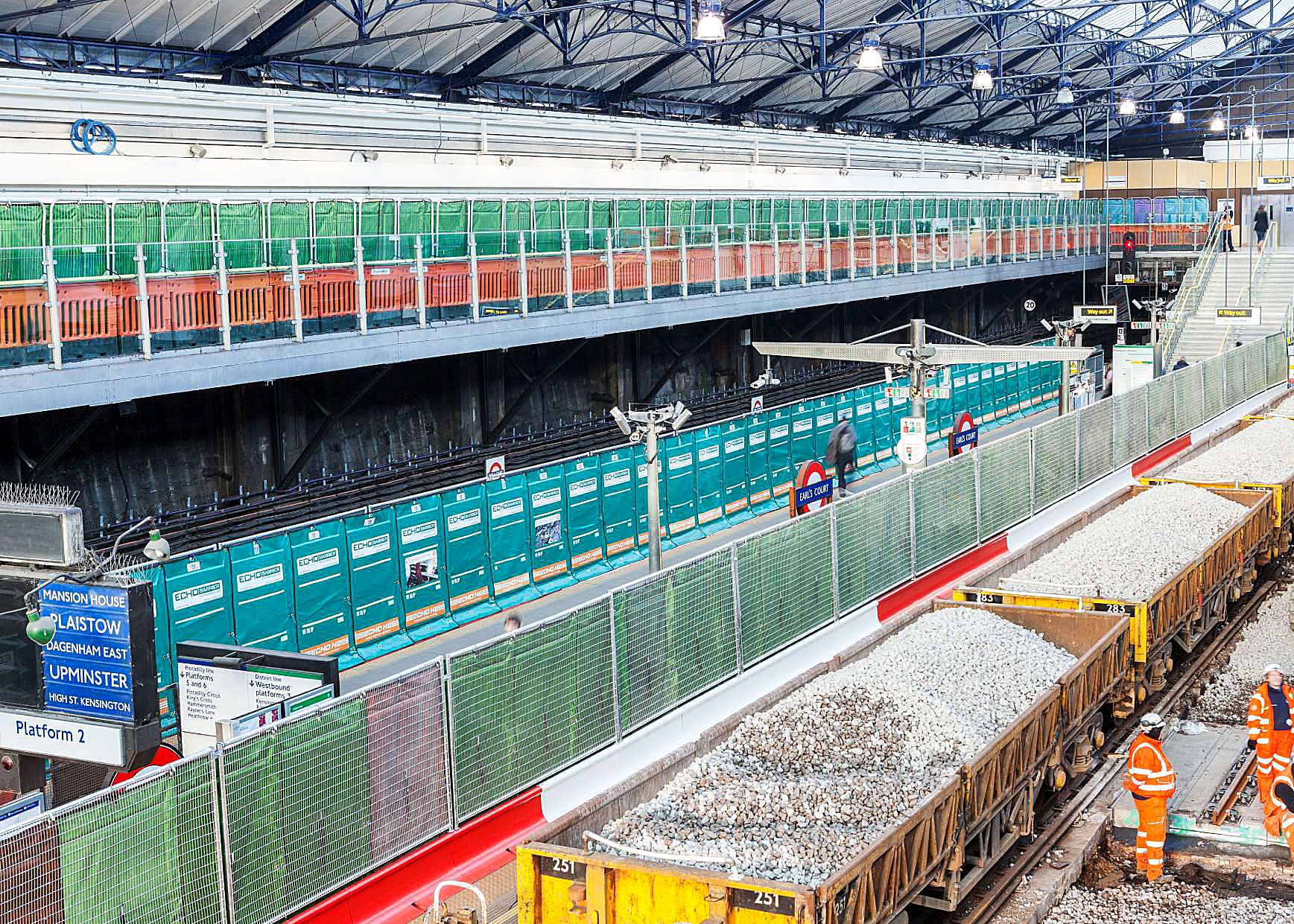

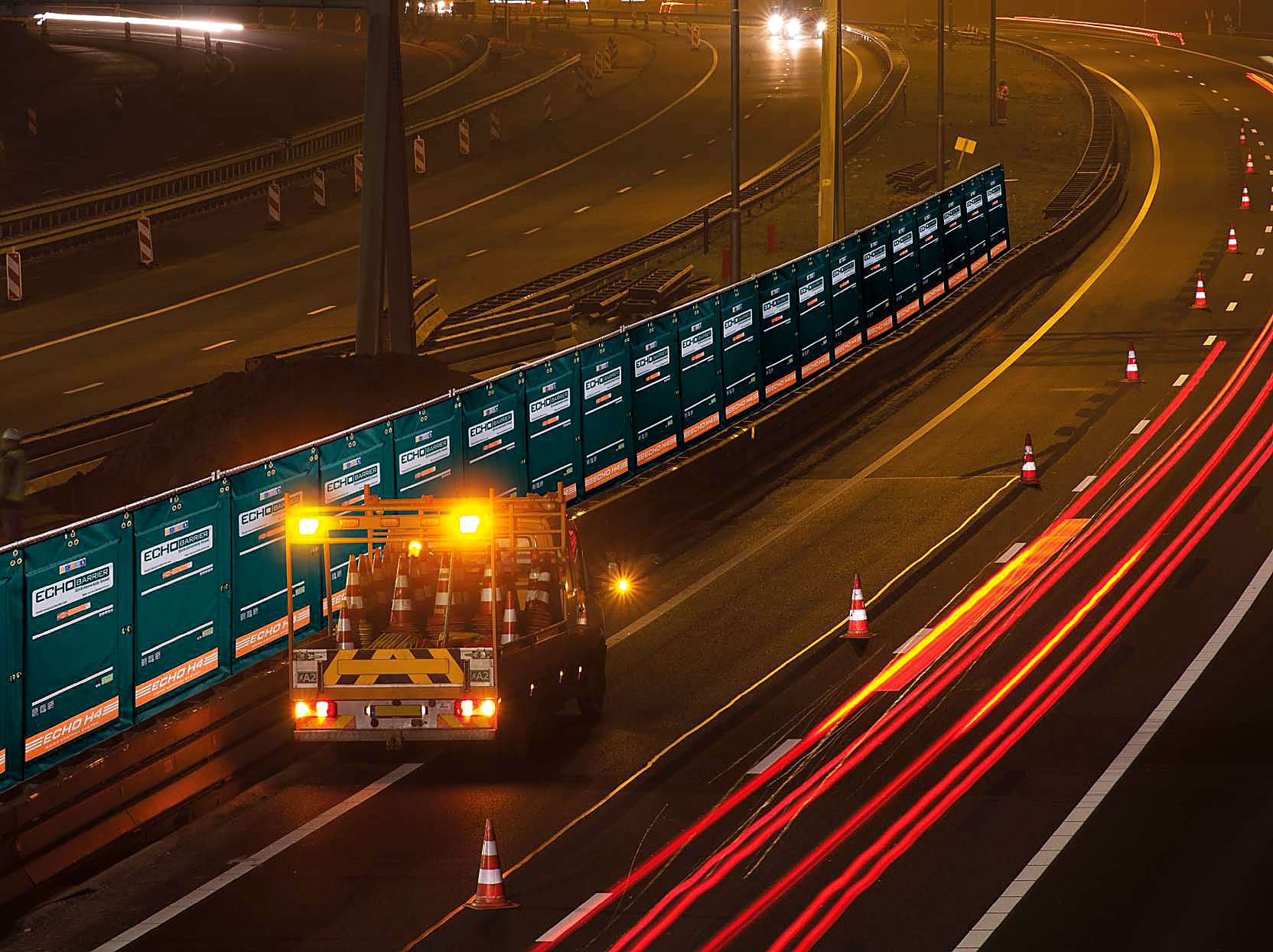

Road & Rail
Infrastructure, track maintenance, station projects.

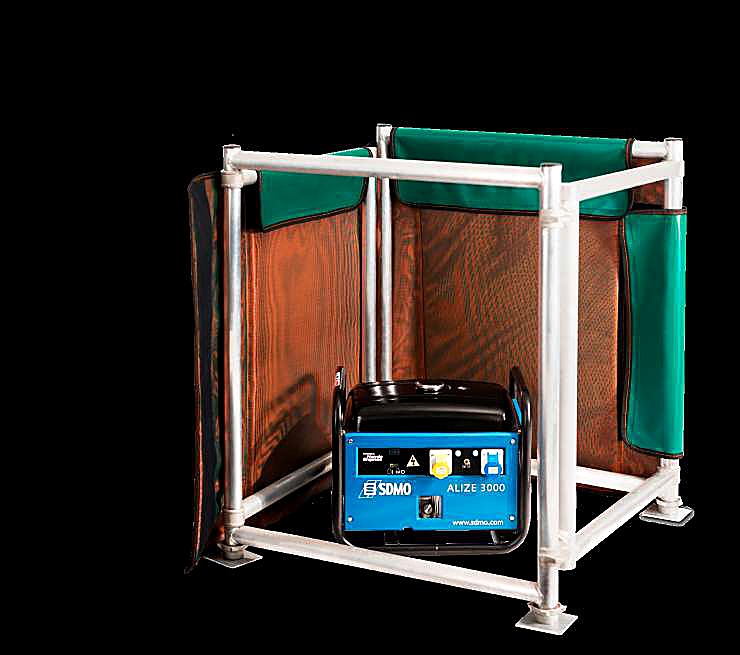

Generators
Mobile power enclosures, on-site systems.
Oil & Gas
Drilling, pumping, refinery maintenance.
Mining
Surface mining, processing, transport.
Manufacturing
Industrial process noise containment.
Public Events
Concerts, festivals, outdoor venues.
— Tested To International Standards —
Performance you can rely on
Tested across the full H-series range
- ASTM E84 · Surface burning characteristics
- BS 7837-1996 · UK fire test for furnishings
- EN 13501-1:2018 · European fire classification
Engineered for harsh conditions
- BSEN 60529:1992 · IPX6 / IPX9 waterproof
- BSEN 60529-1992 · Dust resistance
- BSEN 60068/2/1:2007 · Cold resistance to -40°C
- ISO 17025 · Tensile strength accreditation
Fire Tested
3 international standards
Waterproof
IPX6/IPX9 jet-wash safe
-40 to 70°C
Extreme temperature range
Reflectors
2 horizontal strips for night safety
— Environmental Responsibility —
Built to protect people & planet
No fibreglass. No hazardous substances. Substantial proportions of recycled material. Awarded a 5-star carbon footprint rating.
End-of-life buy-back scheme: panels returned at end-of-lifecycle are recycled per strict Carbon Trust guidelines.
— Deployment —
Designed for single-operator install
Lightweight, compact, durable. Fits standard fencing or scaffolding. Configurable, combinable, layerable.
Assess Source
Identify the noise source and protected area. Position barriers between them, close to the source.
Mount on Fence
Use hooks or fitting kit to attach to standard fencing or scaffolding. Single operator can install.
Link Panels
Link panels vertically and laterally with fitting kit to create an acoustic curtain or wall.
Layer For More dB
Double or triple-layer in high-noise zones to increase mass & absorption.
— Frequently Asked —
Common questions about Echo Barrier
How much noise reduction do Echo Barrier panels actually achieve?
Up to 43.4 dB+ in lab tests — equivalent to more than 99.99% of noise energy. H8 up to 41.4 dB · H9 up to 43 dB · H10/PB3 up to 43.4 dB · HT 3.5 up to 38.7 dB. Field results depend on geometry (placement, distance) and number of panel layers.
Is Yamamah Smart an authorized Echo Barrier distributor?
Yes. Yamamah Smart distributes Echo Barrier outdoor acoustic panels across Saudi Arabia — supplying construction, demolition, infrastructure, and public-event projects with delivery, deployment guidance, and after-sales support.
Are Echo Barrier panels fire and water resistant?
Yes — independently tested. Fire: BS 7837-1996, ASTM E84, EN 13501-1:2018. Water: BSEN 60529:1992 IPX6/IPX9 — safe under heavy rain and jet-washing. Temperature range -40°C to +70°C.
Can a single person install them?
Yes. The panels are lightweight and designed for single-operator deployment using hooks or fitting kits on standard fencing or scaffolding.
Where do these barriers add the most value?
Construction, demolition, infrastructure (road, rail, utilities, oil & gas, mining), generator/power containment, manufacturing, and public events — anywhere you need temporary, portable, high-performance noise control.
Are Echo Barrier panels environmentally responsible?
Yes. No fibreglass, no hazardous materials. Constructed from substantial proportions of recycled content. ISO 14001 Environmental Management. 5-star carbon footprint rating. End-of-life recycling per Carbon Trust guidelines.
What is the warranty?
Standard 24-month manufacturer's warranty on the H-series range — reflecting the durability of the PVC outer, heavy-duty grommets, and reinforced mesh.
Where in Saudi Arabia do you deliver?
Riyadh, Jeddah, Dammam, Khobar, Mecca, Medina, Tabuk, and all Saudi cities. Project-based delivery, site visits, and deployment guidance included.
